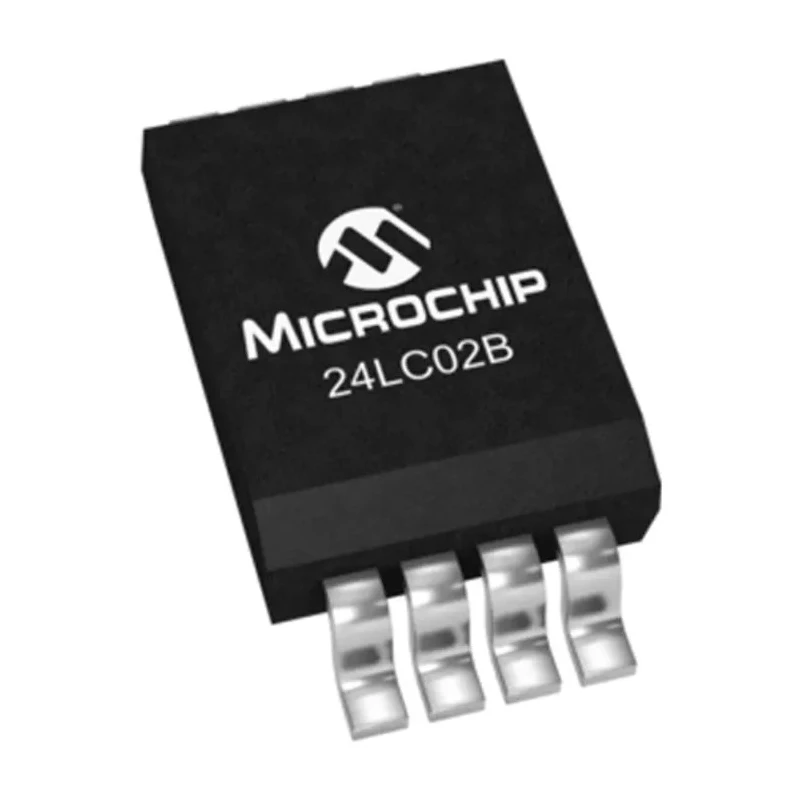

Microchip 2 kB Serial EEPROM 1000 ns 8-Pin SOIC Serial-I2C 24LC02BT-I/SN

Microchip 24LC02BT-I/SN is a 2 kB Serial EEPROM designed for reliable non-volatile memory storage in electronic circuits. This device features a 1000 ns maximum random access time and is housed in an 8-pin SOIC package for surface mount technology.

Operating voltage ranges from 2.5V to 5.5V allowing compatibility with various power supplies. Its I2C serial interface supports clock frequencies up to 400 kHz facilitating efficient communication with microcontrollers and other digital devices.

The EEPROM supports a memory organization of 256 x 8 bit, providing 256 words with 8 bits each. It uses low-power CMOS technology, consuming only 3 mA during supply current and 1 µA in standby, making it suitable for power-sensitive applications.

Designed for robust performance, the chip operates reliably within a wide temperature range from -40°C to 85°C and fulfills automotive-grade quality standards (AEC-Q100), making it ideal for industrial, automotive, and consumer electronics.

The package dimensions are compact with a length of 4.9 mm, width of 6 mm, and height of 1.75 mm, facilitating integration into small form factor printed circuit boards (PCBs). The device includes hardware write-protection features and possesses exceptional ESD protection rated over 4,000 volts to ensure durability in harsh environments.

With data retention exceeding 200 years and endurance of over one million erase/write cycles, this Microchip EEPROM ensures long-term data integrity for critical applications. It is well suited for industrial control systems, automotive electronics, telecommunications equipment, scientific instruments, and other embedded memory applications.

This EEPROM operates with a 2.5V to 5.5V supply voltage range. Supports I2C serial interface with maximum clock frequency of 400 kHz. Features low power consumption with read and standby currents at 3 mA and 1 µA respectively.

The device provides 256 x 8 bit organization with 256 words and 8 bits per word. Operates reliably in temperatures from -40°C to 85°C, compliant with automotive AEC-Q100 standard. Physical dimensions are 4.9 mm length, 6 mm width, and 1.75 mm height.

Offers over 200 years of data retention and more than one million erase/write cycles. Equipped with hardware write-protect and ESD protection greater than 4,000 V. Package type is SOIC surface mount with 8 pins suitable for automated assembly.
