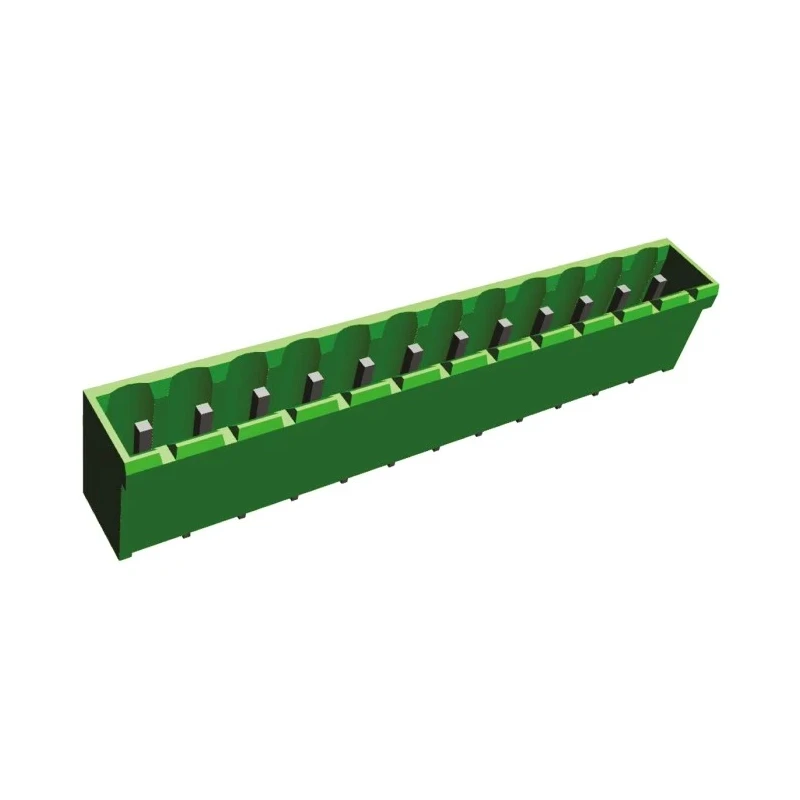

TE Connectivity Buchanan Series Pluggable Terminal Block 12-Contact 5 mm Pitch 1 Row 300V AC 15A 1-796642-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Supports up to 15 amperes current rating for reliable electrical performance.
- Operates safely at a voltage of 300V AC suitable for various electronic applications.
- Constructed with durable polyamide housing ensuring robust insulation.
- Compatible with wire sizes ranging from 0.05 mm² to 3 mm² and AWG 12 to AWG 30.
- Features a female, straight solder wire connection for efficient and secure connections.
- Colored green for easy identification during installations.
- Part of the Buchanan series known for quality and reliability in terminal blocks.
- Designed for vertical mounting in PCB terminal block applications.
Product Description
TE Connectivity 1-796642-2 Buchanan Series Pluggable Terminal Block is a high-quality connector designed for PCB applications requiring reliable electrical connections. It features 12 female contacts arranged in a single row with a 5 mm pitch, delivering up to 15A current capability at 300V AC, making it suitable for a broad range of industrial and electronic systems.
The housing is made of green polyamide material, providing excellent insulation and durability under challenging conditions. It supports wire sizes from 0.05 mm² up to 3 mm² (AWG 12 to AWG 30), and the wire connection is via straight solder terminals, ensuring secure and efficient wiring.
This pluggable terminal block is ideal for use in industrial automation, control gear, power connectors, and various electronic components requiring modular and maintainable interconnections. Its vertical mounting style and closed end design facilitate easy PCB integration.
TE Connectivity’s Buchanan series is recognized for quality and consistency, meeting the needs of professional electronic assemblies and manufacturing environments. Supports 15A current rating at 300V AC operation. Polyamide housing material for enhanced durability.
Accommodates wire sizes from 0.05 mm² to 3 mm². Features female, straight solder connection. Green color for visual identification. Single row, 12-contact configuration with 5 mm pitch. Vertical closed end header PCB terminal block design.
This product fits within the Pluggable Terminal Block category at EnvMart, suitable for electronic, industrial, and manufacturing use cases.
