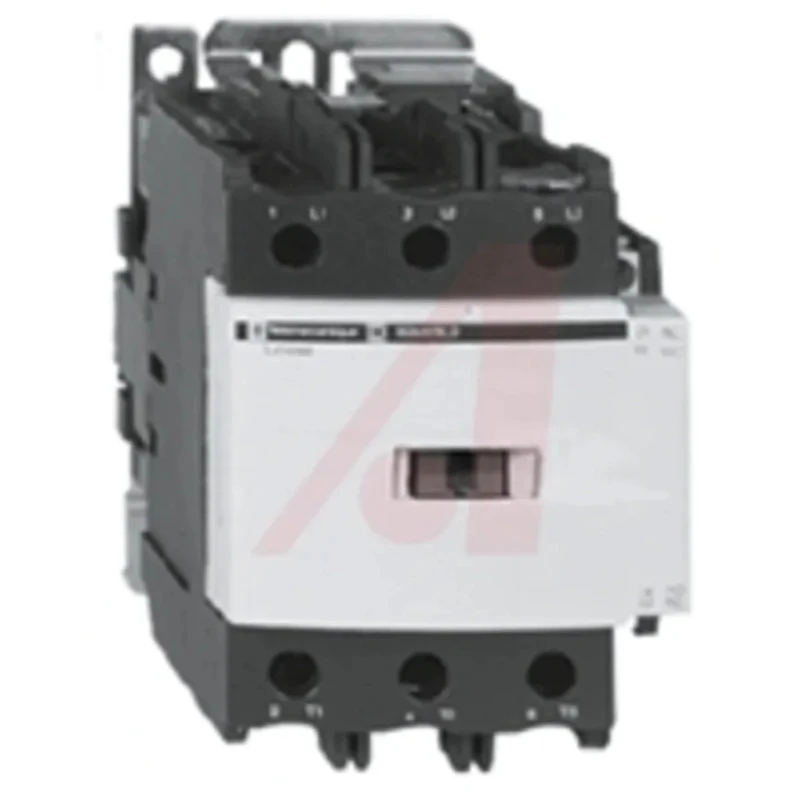

Schneider Electric LC1D TeSys D Contactor, 24V AC Coil, 3-Pole, 80 A, 37 kW, 3 NO, 600V AC LC1D806B7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 127mm |
| Model | LC1D806B7 |
| Depth | 130mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 37kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 600V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Control Circuit Voltage Uc | 24V ac |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for integration in various control systems and motor starters.
- Rated for 80 A contact current and 37 kW power rating.
- Features 3 normally open contacts and 2 auxiliary contacts (1 NO, 1 NC).
- Supports a contact voltage up to 600V AC with screw terminal connections.
- Suitable for industrial applications including HVAC, manufacturing, and automation.
- Compact size with 85mm width, 127mm length, and 130mm depth.
- Operates efficiently within -40°C to 70°C temperature range.
- Certified to international standards including UL, IEC, CSA, and CCC.
Product Description
Schneider Electric LC1D806B7 TeSys D Contactor is a highly reliable 3-pole contactor designed for industrial motor control applications. It operates with a 24V AC coil and is capable of handling contact currents up to 80 A and power ratings of 37 kW. The contactor is equipped with three normally open (NO) main contacts and two auxiliary contacts configured as one normally open and one normally closed (1 NO/1 NC), providing versatile switching options for complex control circuits.
This contactor supports a contact voltage of up to 600V AC and features IP20 finger-safe screw terminals marked for both North American and international standards for easy wiring. Its compact design measures 127 mm in length, 85 mm in width, and 130 mm in depth, weighing approximately 1.59 kg (3.51 lbs). The device is rated to operate reliably within an ambient temperature range from -40°C to 70°C, making it suitable for harsh industrial environments.
Schneider Electric’s TeSys D range is known for its long mechanical and electrical life, ensuring dependable operation in applications such as HVAC systems, manufacturing motor starters, pumps, compressors, conveyor belts, and other industrial automation settings. The contactor can be conveniently mounted on DIN rails or directly onto panels, offering installation flexibility.
Stringent certifications including UL 508, IEC 60947-4-1, CSA C22.2 No 14, CCC, EAC, Marine certification, and UKCA compliance highlight this contactor’s adherence to global safety and performance standards. As a Green Premium product, it contributes to sustainability with RoHS and REACh compliance and is designed for disassembly to aid recycling.
Designed for reliable motor control with long mechanical and electrical life. Three-pole 80A contactor with 37 kW power rating suitable for inductive and resistive loads. Includes built-in auxiliary contacts with one normally open and one normally closed configuration.
Compact and robust, suitable for DIN rail or panel mounting. Wide operating temperature range from -40°C to 70°C for versatile industrial use. Comprehensive international approvals and standards certification. Supports applications in automation, manufacturing, HVAC, water treatment, and more.
Offers IP20 finger-safe screw connections with clear terminal markings. Complies with environmental regulations and designed for sustainability.
Schneider Electric LC1D806B7 TeSys D Contactor is an excellent choice for businesses seeking efficient, versatile, and compliant motor switching solutions. Explore more products by Schneider Electric and find related automation and control gear on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 37 kW, making it suitable for various industrial applications.
The LC1D806B7 is rated for a maximum contact current of 80 A.
It operates with a coil voltage of 24V AC.
The contactor supports a contact voltage of up to 600V AC.
This contactor features 3 poles, configured as normally open contacts.
It operates efficiently within a temperature range of -40°C to 70°C.
This model can be mounted on DIN rails or directly onto panels, providing installation flexibility.
The dimensions are 127 mm in length, 85 mm in width, and 130 mm in depth.
It includes two auxiliary contacts configured as one normally open and one normally closed (1 NO/1 NC).
This contactor is certified to UL 508, IEC 60947-4-1, CSA C22.2 No 14, CCC, and other international standards.
It is suitable for applications in HVAC systems, manufacturing, pumps, compressors, and other industrial automation settings.
It features IP20 finger-safe screw terminals with markings for both North American and international standards.
