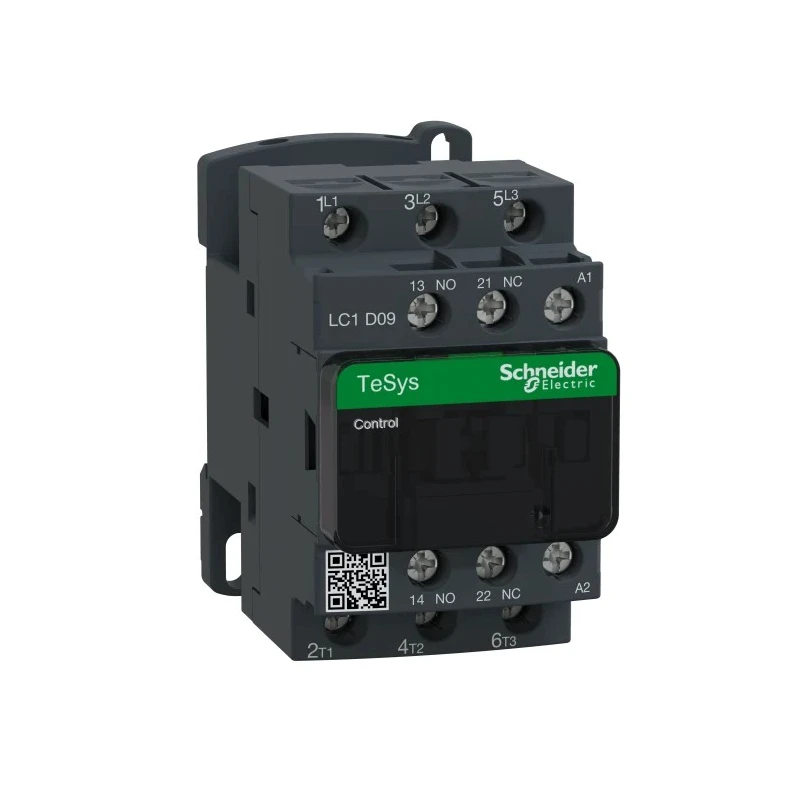

Schneider Electric LC1D Contactor, 208V AC Coil, 3-Pole, 9 A, 4 kW Power Rating, 3 NO Auxiliary Contacts, 600V AC LC1D09LE7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D09LE7 |
| Depth | 84mm |
| Width | 77mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 600V ac |
| Coil Voltage | 208V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 208V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Features a 3 NO normal state configuration with 2 auxiliary contacts (1 NO and 1 NC).
- Mountable on DIN rail with screw terminals for secure connection.
- Operates reliably between -40°C to 70°C ambient temperatures.
- Complies with international standards CCC, CSA, EAC, IEC, RoHS, and UL.
- Built with high resistance to shock and vibration for industrial environments.
- Includes double break poles using linear translation technology.
- Suitable for conventional AC1 and AC3 utilization categories.
Product Description
Schneider Electric LC1D09LE7 contactor is a 3-pole control device with a 208V AC coil voltage, rated for 9 A operational current and 4 kW power at 208V AC. It is designed for motor control and resistive load applications across industrial, manufacturing, HVAC, and automation sectors.
This contactor features a robust screw terminal type and is mountable on DIN rails for easy integration into control panels. It supports a normal state configuration of 3 NO contacts along with 2 auxiliary contacts configured as 1 NO and 1 NC. The device is built to withstand harsh operating conditions with an ambient temperature range from -40°C to 70°C and offers excellent resistance to shock and vibration.
The LC1D series employs linear translation movement to provide reliable double breaking of poles, ensuring safety and durability. It is compliant with global certifications including CCC, CSA, EAC, IEC, RoHS, and UL standards, making it suitable for global industrial use. Dimensions are compact with a length of 45mm, width of 77mm, and depth of 84mm, supporting space-saving designs.
Designed for motor control and resistive load applications. High mechanical and electrical durability with long service life. Compact size and easy DIN rail mounting with screw terminals. Double break pole technology enhances contact reliability.
Wide operating temperature range from -40°C to 70°C. Certified for compliance with global safety and environmental standards. Auxiliary contact configuration provides flexible control options. Supports AC1 and AC3 utilization categories for various loads.
Better World claim for sustainability and designed for disassembly.
This Schneider Electric LC1D contactor is ideal for applications including motor starters, heating elements, pumps, compressors, conveyors, and HVAC units within industrial plants and manufacturing processes.
Discover more Schneider Electric automation and control gear on EnvMart to enhance your industrial system efficiency and reliability.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 4 kW at 208V AC.
The coil voltage for the LC1D09LE7 is 208V AC.
This contactor features 3 poles.
The maximum operating temperature is 70°C.
The auxiliary contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
It is designed for DIN rail mounting with screw terminals for secure connection.
The dimensions are 45mm in length, 77mm in width, and 84mm in depth.
This model is suitable for motor control and resistive load applications, including motors, heating elements, pumps, and HVAC units.
It complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The contact current rating is 9 A.
The operational temperature range is from -40°C to 70°C.
It can handle conventional AC1 and AC3 utilization categories, suitable for various loads including squirrel cage motors and resistive loads.
