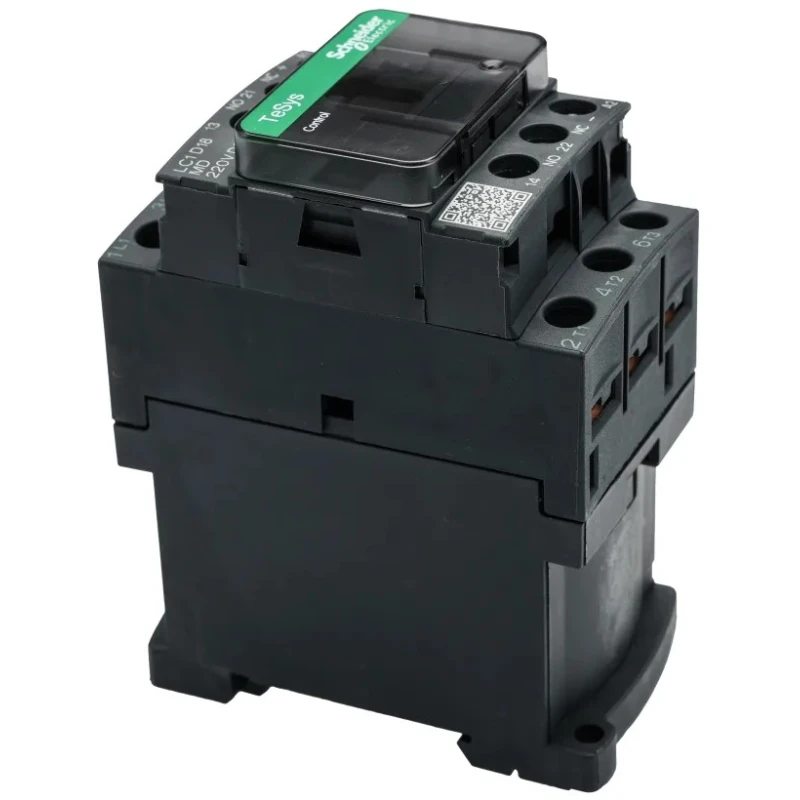

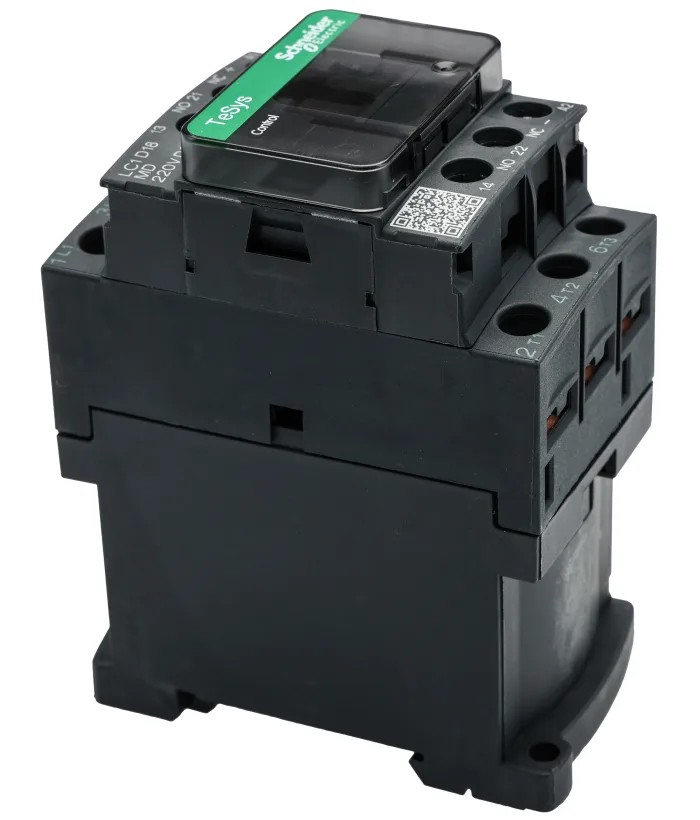

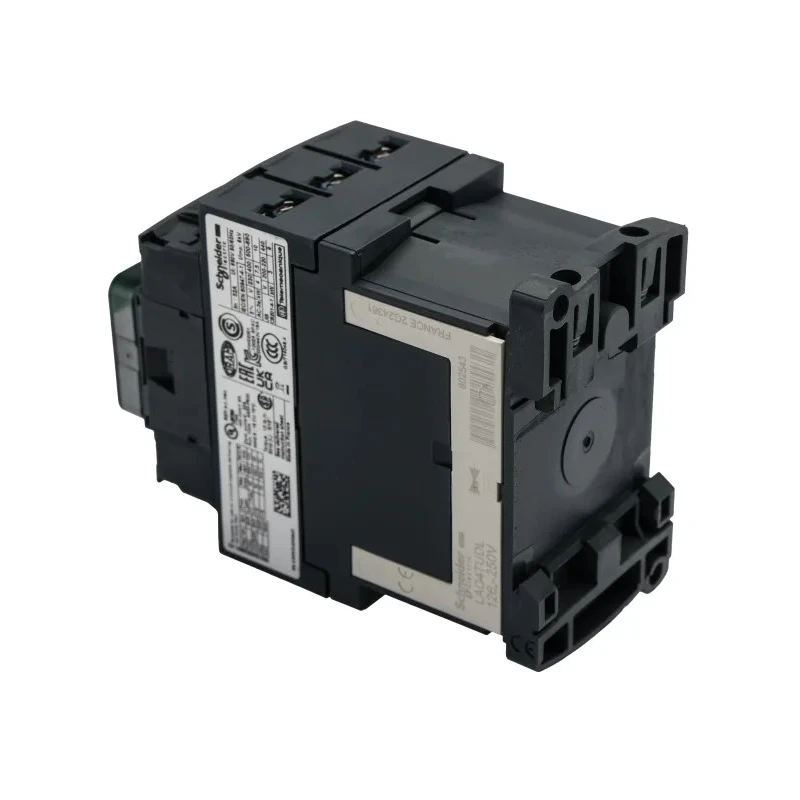

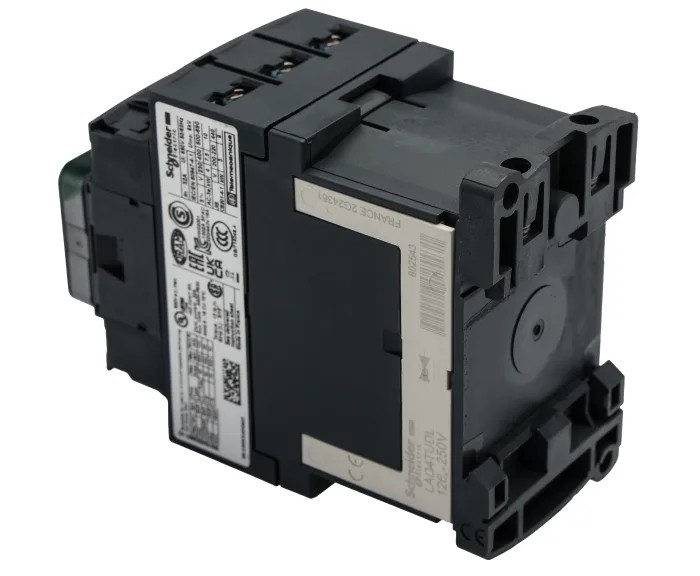

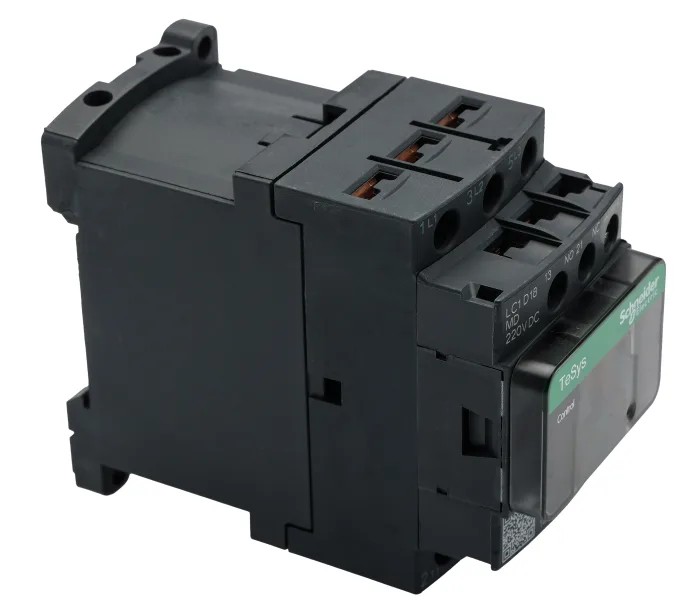

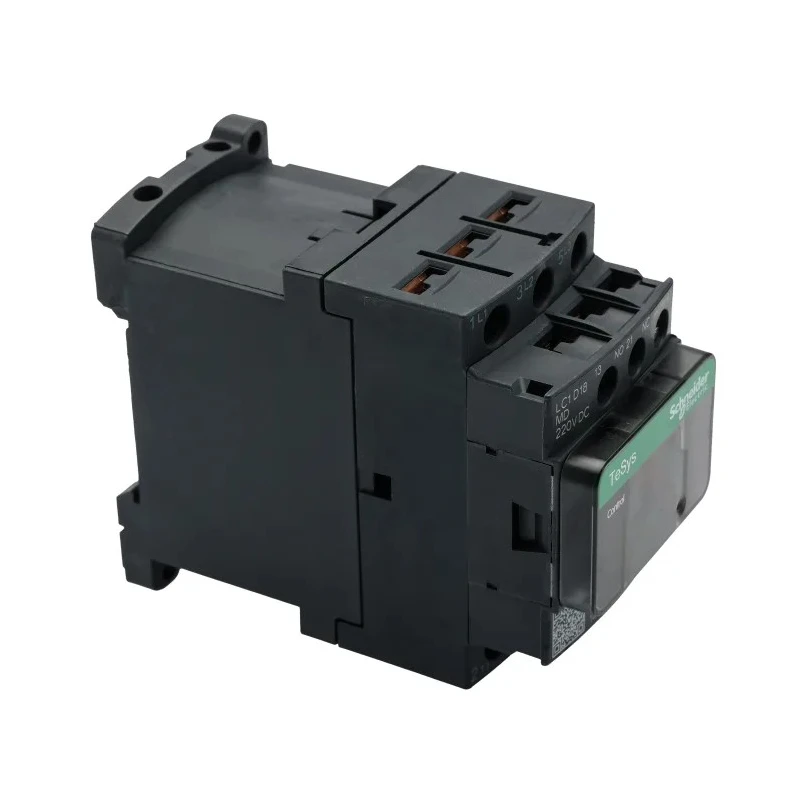

Schneider Electric Contactor 3-Pole 18 A, 230V DC Coil, 1 HP 220V DC, 3 NO, 690V AC/DC LC1D18MD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18MD |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 220V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 80 A, 3NOBrand | Schneider Electric |
Key Features
- The contactor supports motor control and resistive load functions safely.
- Built for operation from -40°C to +60°C, suitable for harsh environments.
- Mounts easily on DIN rail, saving installation time.
- Includes 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Designed with screw terminals for reliable electrical connections.
- Coil control voltage is 220V DC with 690V AC/DC contact voltage capacity.
- Powered at 1 HP and rated for 18 A operational current.
- Certified to CSA and UL standards ensuring quality and safety compliance.
Product Description
Schneider Electric LC1D18MD contactor is a high-quality device engineered for motor control and resistive load applications in demanding industrial environments. Featuring a coil voltage of 230V DC and a control circuit voltage of 220V DC, this 3-pole contactor can manage load currents up to 18 amps and power ratings of 1 HP, complying with AC and DC voltages up to 690V.
Its robust design supports reliable functioning in temperatures ranging from -40°C to +60°C, making it suitable for environments with severe operating conditions such as HVAC systems, construction sites, and automotive industries. The contactor mounts easily on a DIN rail, facilitating straightforward installation without the need for complex tools.
The device includes three normally open (3 NO) main contacts and two auxiliary contacts configured as 1 NO and 1 NC, along with screw terminals that ensure secure electrical connections. Integrated suppression enhances coil durability by protecting against transient voltage spikes. Mechanical durability is assured with a lifespan of up to 30 million operating cycles.
With compact dimensions of 77mm in length, 45mm width, and 95mm depth, and weighing only 490 grams, this contactor is both space-saving and easy to handle during installation and maintenance. It is built to international CSA and UL standards, guaranteeing a quality product that meets electrical safety requirements.
This Schneider Electric contactor belongs to the LC1D series, known for combining long-lasting mechanical and electrical life with excellent reliability and efficient performance. Designed for disassembly, it supports sustainability efforts by facilitating easier recycling and disposal.
Ideal for controlling squirrel cage motors and non-inductive loads under AC-1, AC-3, and AC-4 utilization categories, it finds applications in various industrial scenarios including pumps, compressors, mixers, conveyors, lifts, and air conditioning units.
The contactor supports motor control and resistive load functions safely. Built for operation from -40°C to +60°C, suitable for harsh environments. Mounts easily on DIN rail, saving installation time. Includes 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO and 1 NC).
Designed with screw terminals for reliable electrical connections. Coil control voltage is 220V DC with 690V AC/DC contact voltage capacity. Powered at 1 HP and rated for 18 A operational current. Compact dimensions: 77mm length, 45mm width, and 95mm depth.
Certified to CSA and UL standards ensuring quality and safety compliance. Designed for easy disassembly supporting sustainability goals.
Choose Schneider Electric LC1D18MD contactor to ensure reliable, safe, and efficient motor switching in your industrial automation and control systems. Browse the extensive range of contactors and automation gear available on EnvMart for applications across various sectors.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 1 HP and is rated for an operational current of 18 A.
The coil voltage for the LC1D18MD contactor is 230V DC.
It can handle contact voltages up to 690V AC/DC.
The contactor measures 77mm in length, 45mm in width, and 95mm in depth.
It is designed to operate within a temperature range of -40°C to +60°C.
This model includes three normally open (NO) main contacts.
It mounts easily on a DIN rail, facilitating straightforward installation.
It includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It is certified to CSA and UL standards, ensuring compliance with safety and quality requirements.
It is suitable for motor control and resistive load applications, including HVAC systems, pumps, and conveyors.
This contactor is designed with screw terminals for reliable electrical connections.
The LC1D18MD has a mechanical lifespan of up to 30 million operating cycles.
