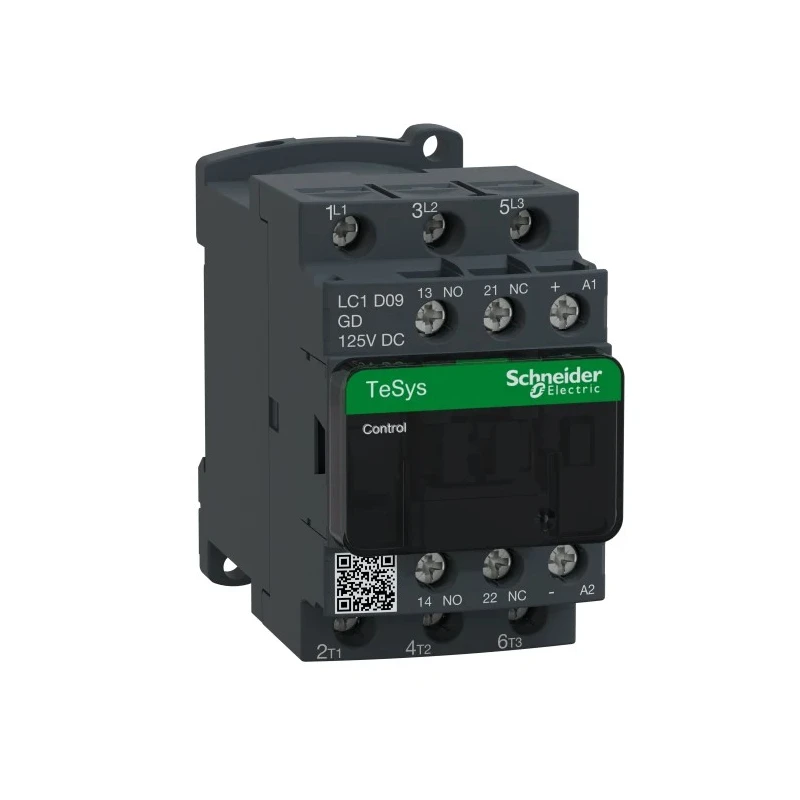

Schneider Electric Motor Control Contactor LC1D09GD 125V DC Coil, 3-Pole, 9A, 4 kW Power Rating, 600V AC Contacts
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D09GD |
| Depth | 93mm |
| Width | 77mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 600V ac |
| Coil Voltage | 125V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 125V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated for 4 kW power at 125V DC coil voltage for efficient motor control.
- Features 3 normally open contact poles with a maximum contact voltage of 600V AC.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for enhanced control functionality.
- Designed for DIN Rail mounting with screw-type terminals for secure installation.
- Operates reliably from -40°C to 70°C ambient temperatures ensuring durability.
- Compliant with international standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications.
- Constructed for resistance against shock and vibration, allowing robust industrial use.
Product Description
Schneider Electric LC1D09GD is a high-performance motor control contactor featuring a 125V DC coil, rated for 9A current and capable of handling 4 kW power loads. This 3-pole contactor is engineered for use with resistive loads and motor control, making it ideal for a wide range of industrial and commercial applications.
The contactor includes three normally open (NO) main contacts and an auxiliary contact configuration of 1 NO and 1 NC, offering advanced control circuit functionality. With screw terminal connections and DIN Rail mounting compatibility, installation is simple and secure.
Built to withstand harsh environments, the LC1D09GD operates reliably within a wide temperature range from -40°C up to 70°C. Its robust design delivers high resistance to shock and vibration, ensuring dependable performance in demanding industrial, manufacturing, HVAC, and automation systems.
The contactor meets several international standards including CCC, CSA, EAC, IEC, RoHS, and UL, confirming its reliability and quality. Its compact physical dimensions (45mm length, 77mm width, 93mm depth) make it suitable for panel integration in electrical control systems.
Rated coil voltage of 125V DC for reliable control circuit operation. 3 poles with normally open contacts rated at 600V AC and 9A for main circuit control. Auxiliary contacts configured as 1 NO and 1 NC provide flexible control options.
DIN Rail mounting with screw terminals supports standard industrial installation practices. Wide operating temperature range from -40°C to 70°C ensures performance in diverse environments. Compliance with major global standards supports safe and efficient operation.
Designed for disassembly and sustainability under Schneider Electric's Better World initiative. Suitable for applications such as motor starters, pumps, mixers, escalators, conveyors, compressors, and HVAC systems.
Schneider Electric LC1D09GD is a reliable industrial contactor that caters to stringent operational requirements in automation, industrial control, and electrical distribution systems. This product is part of the TeSys D series, characterized by double break pole Contactors with linear translation movement for enhanced contact reliability.
Explore further Schneider Electric automation and control gear products at EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D09GD contactor has a power rating of 4 kW.
This model operates with a coil voltage of 125V DC.
It features 3 poles with normally open (NO) contacts.
The maximum contact voltage for the LC1D09GD is 600V AC.
The dimensions are 45mm in length, 77mm in width, and 93mm in depth.
The operational current rating is 9A.
It is designed for DIN Rail mounting with screw-type terminals.
This model operates reliably within a temperature range from -40°C to 70°C.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with several international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
This contactor is suitable for motor control and resistive load applications, including motors, pumps, and HVAC systems.
It is designed for disassembly under Schneider Electric's Better World initiative.
