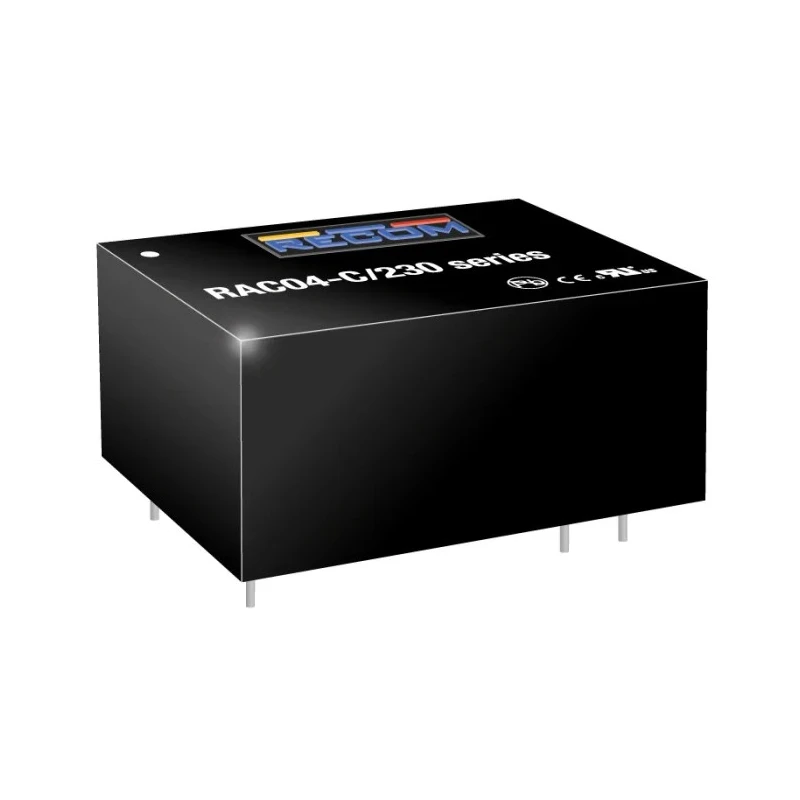

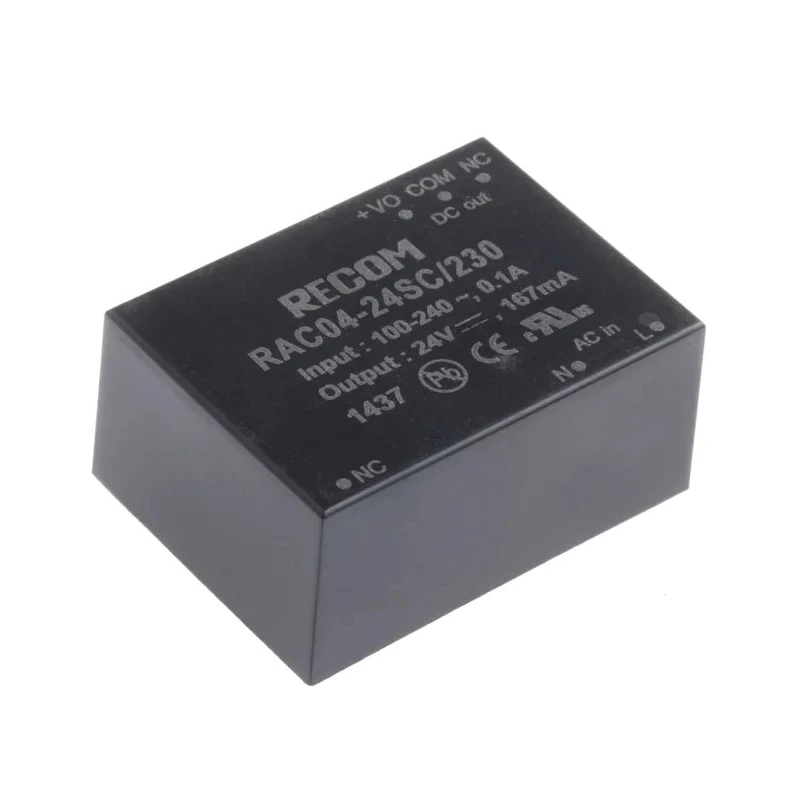

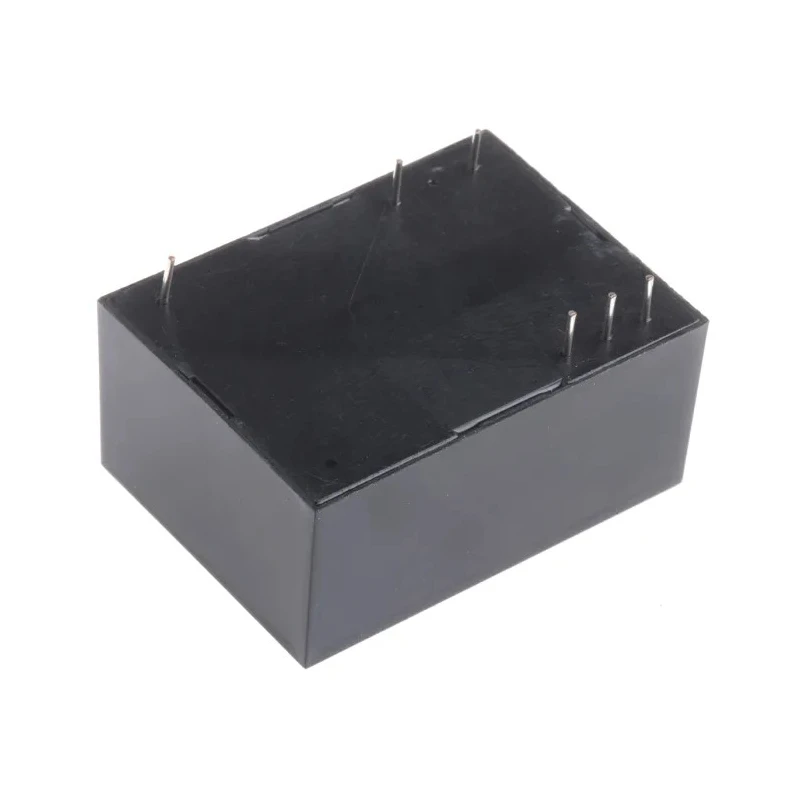

Recom Switching Power Supply 24V DC, 4W, 80-264V AC Input, 167mA Output, PCB Mount RAC04-24SC/230

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 24V DC, 4W, 80-264V AC Input, 167mA Output, PCB Mount RAC04-24SC/230

Name: Recom Switching Power Supply 24V DC, 4W, 80-264V AC Input, 167mA Output, PCB Mount RAC04-24SC/230
Brand: Recom
SKU: 377022
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	4W
Efficiency	79%
Length	36.7mm
Model	RAC04-24SC/230
Depth	17.1mm
Gross Weight	31.5g
Width	27.2mm
Mount Type	PCB
Series	RAC04-C/230
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	305V ac
Standards/Approvals	UL 609501, EN 609501, EN 550 Class B
Maximum Output Voltage	24V dc
SMPS Output Current	167mA
Minimum Input Voltage	80V ac

Key Features

Efficient power conversion with 79% efficiency for reduced energy loss.
Compact PCB mount design measuring 36.7 x 27.2 x 17.1 mm to save space.
Wide operating temperature range from -40°C to 65°C for harsh environments.
Integral short-circuit protection ensures circuit safety and reliability.
Single output providing 167mA continuous current for stable device operation.
Complies with UL 609501, EN 609501, and EN 550 Class B standards.
Mean time between failures (MTBF) of 500,000 hours at +25°C for long-life performance.
Suitable for automation, standby devices, and instrumentation systems.

Product Description

Recom RAC04-24SC/230 Switching Power Supply is designed for converting AC voltages ranging from 80 to 264V into a stable 24V DC output at 4 watts, making it ideal for industrial and automation uses. The PCB mountable unit combines a compact footprint of 36.7 mm length, 27.2 mm width, and 17.1 mm depth, allowing seamless installation on printed circuit boards where space is limited.

This power supply features integral short-circuit protection to guard connected circuitry from damage and operates efficiently at 79%, minimizing power wastage. It stands up to tough industrial environments with an operating temperature span of -40°C to 65°C and meets stringent safety and electromagnetic compliance standards including UL 609501, EN 609501, and EN 550 Class B.

The product delivers a continuous 167mA DC output current, supporting a wide variety of applications including automation controls, standby power solutions, and instrumentation devices. Its high mean time between failures (MTBF) of 500,000 hours at 25°C highlights its reliability and longevity in demanding environments.

Efficient power conversion with 79% efficiency for reduced energy loss. Compact PCB mount design measuring 36.7 x 27.2 x 17.1 mm to save space. Wide operating temperature range from -40°C to 65°C for harsh environments. Integral short-circuit protection ensures circuit safety and reliability.

Single output providing 167mA continuous current for stable device operation. Complies with UL 609501, EN 609501, and EN 550 Class B standards. Mean time between failures (MTBF) of 500,000 hours at +25°C for long-life performance.

Suitable for automation, standby devices, and instrumentation systems.

This product is manufactured in Taiwan, Province Of China, guaranteeing quality standards and performance. It supports electrical, industrial, automation, and instrumentation sectors demanding compact and dependable power supplies.
