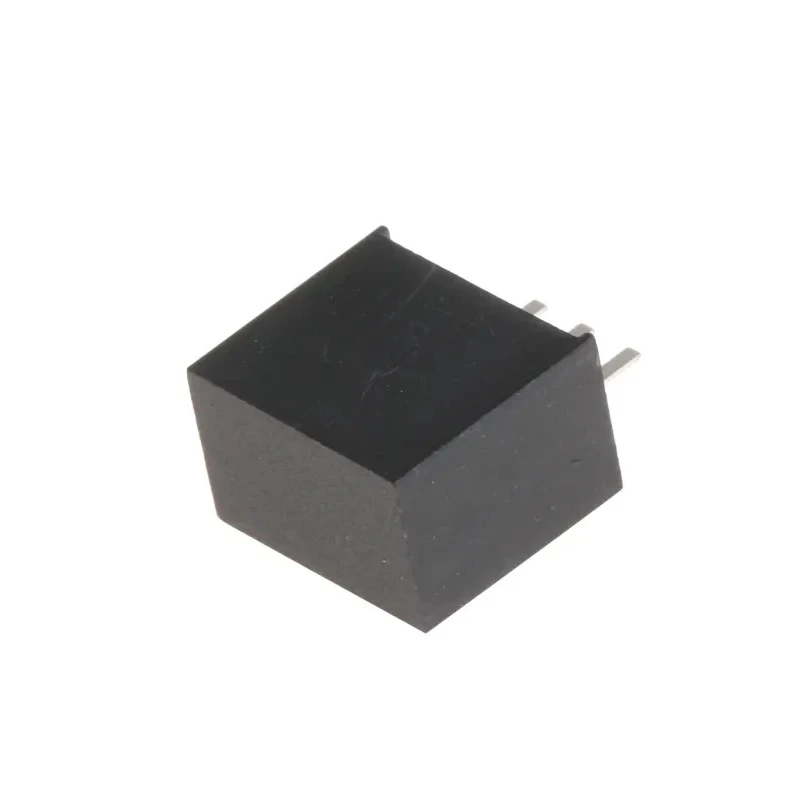

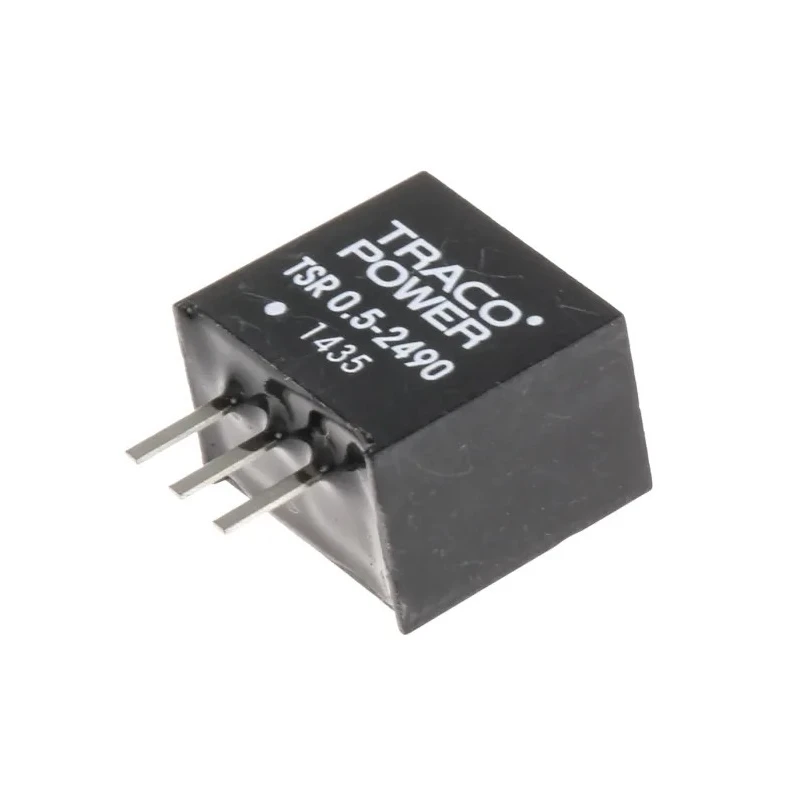

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 9V DC Output, 500mA, 96% Efficiency TSR 0.5-2490
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 96% |
| Length | 11.5mm |
| Model | TSR 0.5-2490 |
| Depth | 10.2mm |
| Gross Weight | 2g |
| Width | 7.55mm |
| Mount Type | Through Hole |
| Series | TSR 0.5 |
| Output Current | 500mA |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP-3 |
| Load Regulation | ±0.4 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Input Voltage | 32V dc |
| Line Regulation | ±0.2 % |
| Standards/Approvals | EN 55032 |
| Minimum Input Voltage | 11V |
| Output Voltage 1 | 9V dc |
Key Features
- High efficiency of 96% minimizes energy loss during operation.
- Wide input voltage range from 11V to 32V DC supports versatile power sources.
- Operates reliably between -40°C and +90°C for harsh environments.
- Stable output with ±0.2% line regulation and ±0.4% load regulation.
- Compact dimensions of 11.5mm length, 7.55mm width, and 10.2mm depth save board space.
- Lightweight design at only 2 grams reduces mechanical load.
- Ripple and noise limited to 40 mV peak-to-peak ensures clean power delivery.
- Through-hole mount type facilitates secure and easy installation.
Product Description
TRACOPOWER TSR 0.5-2490 is a high-performance switching regulator designed for efficient voltage conversion in electronic applications. It delivers a stable and precise 9V DC output at 500 mA current while accepting input voltages ranging from 11V to 32V DC. The regulator features a through-hole SIP-3 package with compact dimensions of 11.5mm by 7.55mm by 10.2mm, optimizing PCB space utilization.
Its exceptional efficiency rating of 96% reduces heat dissipation, enhancing energy conservation and system reliability. The device performs reliably within a wide temperature range from -40°C up to 90°C, making it suitable for demanding industrial and consumer electronics environments. Voltage stability is ensured with line regulation of ±0.2% and load regulation of ±0.4%, while ripple and noise are minimized to 40 mV peak-to-peak for clean power output.
With a mean time between failures (MTBF) of 2 million hours, it guarantees long service life and dependable operation. The 2-gram lightweight regulator includes a UL 94V-0 rated plastic housing, offering self-extinguishing properties that enhance safety standards. Mounting is simple and secure using the through-hole SIP-3 footprint.
This switching regulator is ideal for applications such as process control, power distribution, and consumer electronic devices requiring efficient and compact voltage conversion solutions.
High efficiency rating of 96% conserves energy and reduces heat. Wide operating temperature range from -40°C to +90°C accommodates harsh environments. Compact SIP-3 package saves PCB space and supports through-hole mounting.
Reliable long-term operation with MTBF of 2,000,000 hours. Stable output voltage with low ripple and noise maintains device performance. UL 94V-0 plastic housing enhances safety through self-extinguishing properties. Suitable for industrial, laboratory, and consumer electronics applications.
Conforms to EN 55032 electromagnetic compatibility standard. Lightweight at approximately 2 grams, reducing mechanical stress. Efficient voltage regulation for power distribution and process control systems. Explore more Switching Regulators from TRACOPOWER and find reliable voltage conversion solutions on EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a stable output voltage of 9V DC at a maximum output current of 500mA.
It has an efficiency rating of 96%, minimizing energy loss during operation.
The regulator accepts input voltages ranging from 11V to 32V DC.
The compact dimensions of this unit are 11.5mm in length, 7.55mm in width, and 10.2mm in depth.
It operates reliably within a temperature range of -40°C to +90°C.
It features line regulation of ±0.2% and load regulation of ±0.4%, ensuring voltage stability.
Ripple and noise are limited to 40 mV peak-to-peak, ensuring clean power delivery.
This unit uses a through-hole mount type, facilitating secure and easy installation.
The MTBF for this model is 2 million hours, indicating reliable long-term operation.
Yes, it conforms to the EN 55032 electromagnetic compatibility standard.
This switching regulator weighs approximately 2 grams, reducing mechanical load.
It is suitable for applications such as process control, power distribution, and consumer electronic devices requiring efficient voltage conversion.
