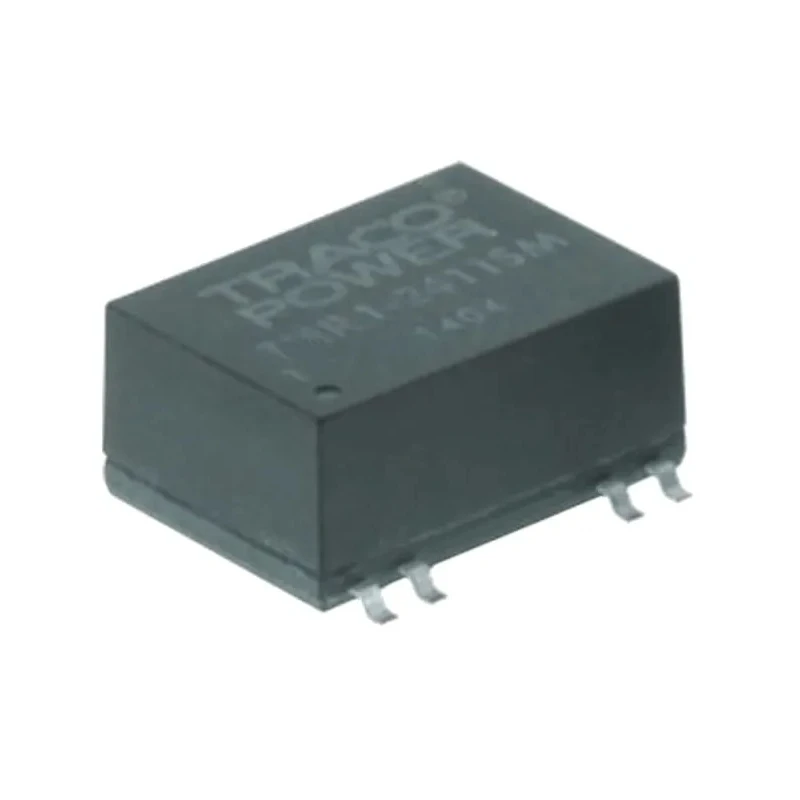

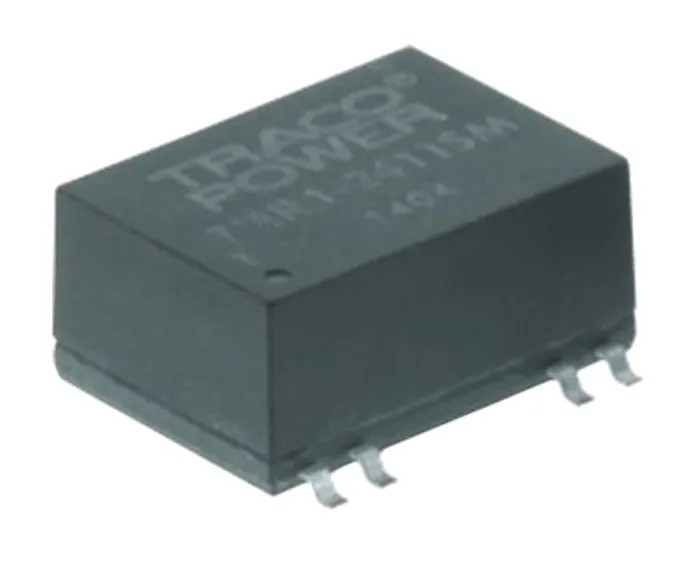

TRACOPOWER High Efficiency 12V DC 1A Through Hole Switching Regulator TSR 1-24120SM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 95% |
| Length | 11.7mm |
| Model | TSR 1-24120SM |
| Depth | 7.6mm |
| Gross Weight | 1.9g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | TSR-1SM |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-220 |
| Load Regulation | 0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 5350000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV |
| Maximum Input Voltage | 36V dc |
| Line Regulation | 0.2 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 15V dc |
| Output Voltage 1 | 12V dc |
Key Features
- Operates with high efficiency up to 95%, reducing heat generation.
- Through hole mounting type allows easy PCB integration.
- Wide input voltage range from 15V to 36V DC.
- Compact TO-220 package with dimensions 11.7mm length, 10.2mm width, and 7.6mm depth.
- Reliable operation from -40°C to +85°C ambient temperature.
- Built-in filter capacitors support reduced output ripple noise of 75mV.
- Line regulation of 0.2% and load regulation of 0.6% ensure stable voltage output.
- Certified RoHS compliant, suitable for environmentally-conscious designs.
Product Description
TRACOPOWER TSR 1-24120SM is a high efficiency step-down switching regulator designed for precision and reliability in power management applications. Featuring a through hole mount and a compact TO-220 package, it delivers a regulated 12V DC output at 1A, making it suitable for a wide range of electronic components and systems.
This switching regulator operates efficiently at 95%, minimizing heat dissipation and allowing continuous full load operation up to +65°C ambient temperature without additional heat sinks. The wide input voltage range from 15V to 36V DC accommodates various power supply conditions commonly found in industrial and commercial electronics.
Outstanding features include a low standby current, built-in filter capacitors for reduced ripple and noise (75mV), and stable output ensured by low line (0.2%) and load (0.6%) regulations, which maintain voltage accuracy within ±2%. The temperature range spans from -40°C to +85°C, supporting harsh operating conditions typical in manufacturing, industrial automation, and instrumentation.
Its long mean time between failures (MTBF) of 5,350,000 hours reflects excellent reliability. Being RoHS compliant, it meets environmental standards for use in green manufacturing processes.
This TSR-1SM series switching regulator is ideal for battery-powered applications requiring efficient power conversion, industrial control circuits, communication equipment, and embedded systems.
Operates with high efficiency up to 95%, reducing heat generation. Through hole mounting type allows easy PCB integration. Wide input voltage range from 15V to 36V DC. Compact TO-220 package with dimensions 11.7mm length, 10.2mm width, and 7.6mm depth.
Reliable operation from -40°C to +85°C ambient temperature. Built-in filter capacitors support reduced output ripple noise of 75mV. Line regulation of 0.2% and load regulation of 0.6% ensure stable voltage output. Certified RoHS compliant, suitable for environmentally-conscious designs.
MTBF of 5,350,000 hours for long-term reliability. For precise power management needs in industrial, commercial, and laboratory electronics, explore the broad range of TRACOPOWER Switching Regulators available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with high efficiency up to 95%, which helps in reducing heat generation during operation.
The input voltage range for the TSR 1-24120SM is from 15V to 36V DC, accommodating various power supply conditions.
The dimensions of the TO-220 package are 11.7mm in length, 10.2mm in width, and 7.6mm in depth.
The TSR 1-24120SM is capable of delivering a regulated output current of 1A.
It operates reliably within a temperature range of -40°C to +85°C, suitable for harsh operating conditions.
This model features built-in filter capacitors that support reduced output ripple noise of 75mV.
The line regulation is 0.2% and the load regulation is 0.6%, ensuring stable voltage output.
Yes, it is certified RoHS compliant, making it suitable for environmentally-conscious designs.
The MTBF for the TSR 1-24120SM is 5,350,000 hours, indicating excellent reliability.
This model uses a through hole mounting type, allowing for easy PCB integration.
This switching regulator has one output, providing a regulated 12V DC output.
It is suitable for battery-powered applications, industrial control circuits, communication equipment, and embedded systems.
