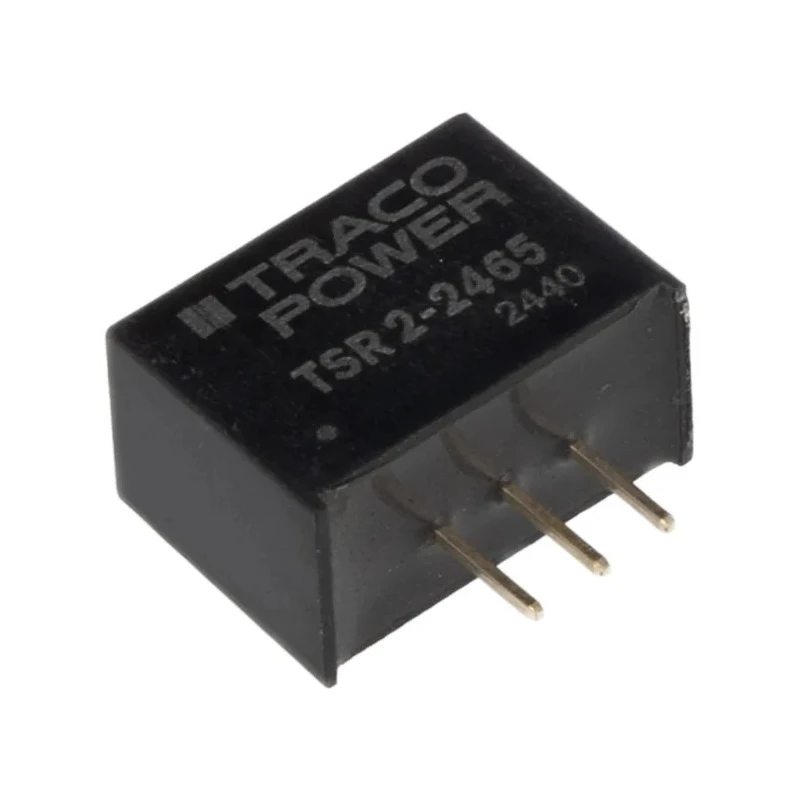

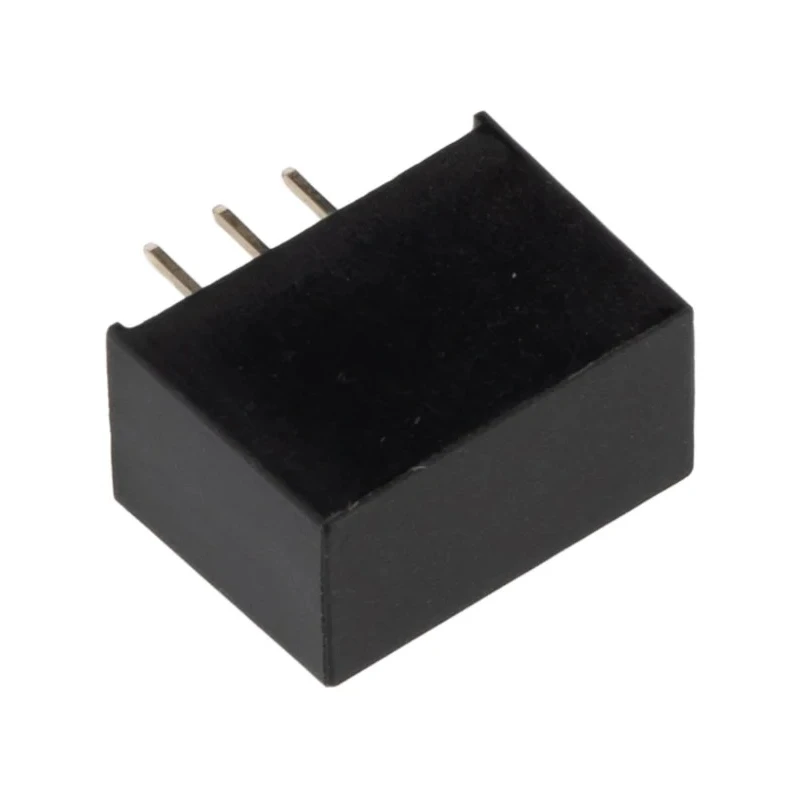

TRACOPOWER Switching Regulator PCB Mount, 6.5V DC Output, 2A Output Current TSR 2-2465

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Regulator PCB Mount, 6.5V DC Output, 2A Output Current TSR 2-2465

Name: TRACOPOWER Switching Regulator PCB Mount, 6.5V DC Output, 2A Output Current TSR 2-2465
Brand: TRACOPOWER
SKU: 387130
Price: 21.4 USD
Availability: InStock



Category Switching Regulator Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Efficiency	94%
Length	14mm
Model	TSR 2-2465
Depth	10.1mm
Gross Weight	2.6g
Width	7.5mm
Mount Type	PCB
Series	TSR 2
Output Current	2A
Maximum Operating Temperature	85°C
Package Type	SIP-3
Load Regulation	1 %
Minimum Operating Temperature	-40°C
MTBF	13520000h
Number of outputs	1
Ripple and Noise	50mV Pk-Pk
Maximum Input Voltage	36V dc
Line Regulation	0.5 %
Standards/Approvals	UL 60950-1, UL 94 V-0, IEC/EN 60950-1, MIL-STD-810F
Minimum Input Voltage	9V
Output Voltage 1	6.5V dc

Key Features

High efficiency up to 94% to minimize heat generation.
Compact SIP-3 package suitable for PCB mounting.
Wide input voltage range from 9V to 36V DC for flexibility.
Built-in over temperature and short circuit protection for safety.
Operates reliably in temperatures from -40°C to 85°C.
Excellent line regulation of 0.5% and load regulation of 1%.
Integrated filter capacitors eliminate the need for external components.
Robust design suitable for industrial and harsh environment applications.

Product Description

TRACOPOWER TSR 2-2465 Switching Regulator is a high-efficiency DC-DC converter designed for stable power delivery in demanding industrial and electronic applications. This PCB-mounted module provides a precise 6.5V DC output voltage with a maximum continuous output current of 2A, making it ideal for powering sensors, instrumentation, and various control systems.

The TSR 2-2465 operates within a broad input voltage range of 9V to 36V DC, enabling versatile usage across different power sources. Its ultra-compact SIP-3 packaging minimizes PCB footprint, supporting compact designs where space is critical. The regulator boasts an efficiency of up to 94%, significantly reducing thermal losses and eliminating the need for additional heat sinks through effective internal thermal management.

Built-in protections for over-temperature and short circuit conditions ensure robust operation and automatic recovery, safeguarding connected electronics. The device maintains excellent line regulation of 0.5% and load regulation of 1%, delivering stable output voltage under varying load and input conditions. Operating temperature range from -40°C to 85°C permits usage in harsh and extreme environmental conditions.

High efficiency reduces heat dissipation for reliable operation. Compact SIP-3 form factor for minimal space requirement. Wide input range supports a variety of power sources. Integrated protection features ensure safe and stable operation.

Excellent output stability with tight line and load regulation. Suitable for industrial automation, instrumentation, and battery-powered devices. Built-in filter capacitors negate need for external components. Designed and manufactured in Taiwan, Province Of China.

This TRACOPOWER Switching Regulator series excels in industrial automation, laboratory instruments, communication devices, and consumer electronics requiring efficient and reliable power conversion. Its compact size and robust protections provide flexible and secure power supply solutions, enhancing system performance and longevity.
