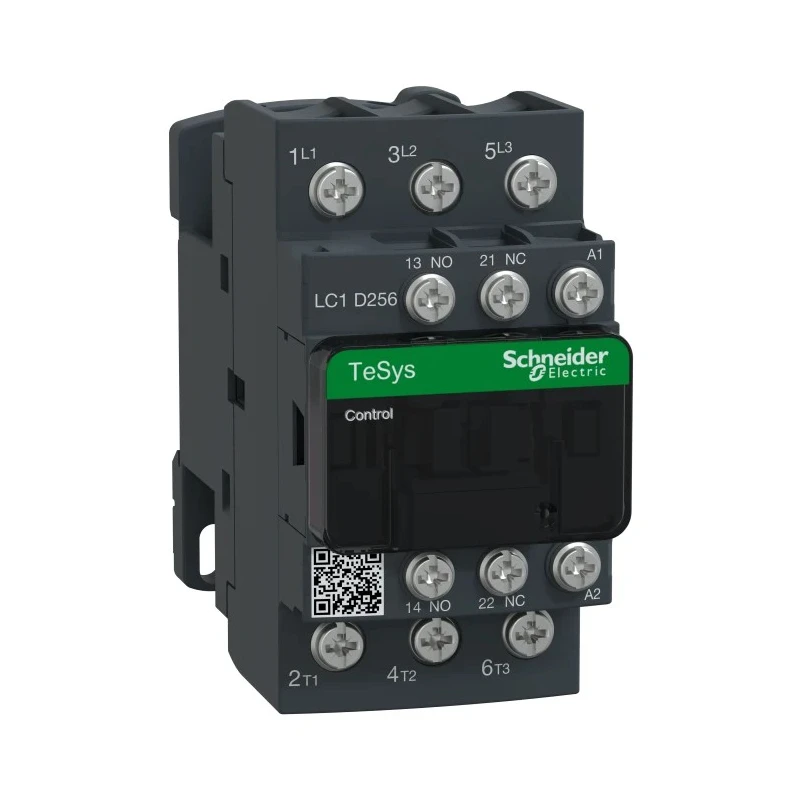

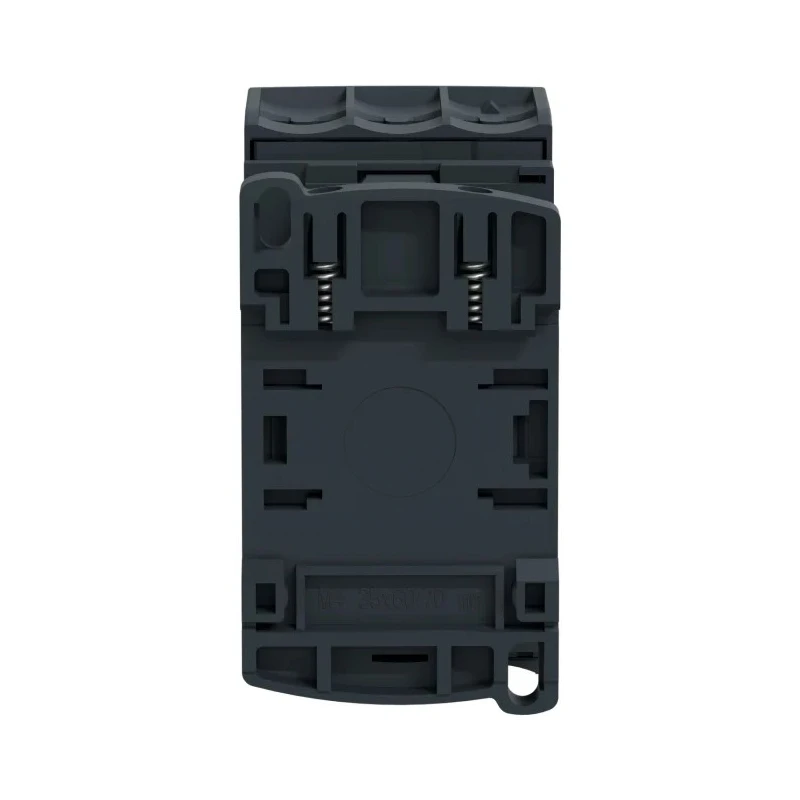

Schneider Electric LC1D TeSys D 3-Pole Contactor 110V AC Coil 25 A 11 kW 3 NO 690V AC LC1D256F7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LC1D256F7 |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Control Circuit Voltage Uc | 110V ac |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 110V AC coil for efficient performance.
- 3-pole design suitable for controlling motors and resistive loads.
- Contact current rated at 25 A with power rating of 11 kW at 690V AC.
- Includes 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO/1 NC).
- Compact DIN rail mountable with IP20 finger-safe screw terminals.
- Operational temperature range from -5°C to 60°C for varied environments.
- Conforms to multiple international standards including IEC, UL, CSA, and EN.
- Designed for easy integration into control systems and quick setup.
Product Description
Schneider Electric LC1D256F7 TeSys D Contactor is a robust and reliable electrical control device designed for industrial and commercial automation use. Featuring a 110V AC coil and 3-pole configuration, it is capable of managing currents up to 25 A and power loads of 11 kW at 690V AC.
This contactor boasts a versatile control circuit voltage of 110V AC and supports 3 normally open contacts along with 2 auxiliary contacts configured as 1 NO and 1 NC. Its compact size with dimensions of 85mm depth, 92mm width, and 45mm length allows for easy DIN rail mounting, making it suitable for control panels.
The device offers IP20 finger-safe screw connections labeled for both North American and international standards, ensuring user safety and installation convenience. Operating temperature ranges from -5°C to 60°C, covering diverse industrial environments.
Designed to comply with numerous certification standards including IEC 60947-4-1/-5-1, UL 508, CSA C22.2 No 14, BV, RINA, CCC, GL, GOST, DNV, UKCA, and LROS, the contactor ensures reliable performance under demanding conditions.
Key features include built-in auxiliary contacts for added switching functionality, screw terminal connections for secure wiring, bidirectional peak limiting diode suppressor to protect the coil, and various available accessories such as dust-tight auxiliary contact blocks and surge suppressors. The contactor is suitable for use with motor starters, lifts, escalators, conveyors, compressors, and HVAC systems.
Equipped with a 110V AC coil for efficient performance. 3-pole design for versatile applications in industrial control. Robust 25 A current rating and 11 kW power capacity at 690V AC. Includes auxiliary contacts enabling flexible switching options.
Compact DIN rail mounting with IP20 finger-safe screw terminals. Wide operating temperature range from -5°C to 60°C. Certified to multiple international standards for safety and reliability. Features and accessories facilitate easy installation and maintenance.
Designed for use in motor control and various electrical automation systems.
This Schneider Electric LC1D256F7 Contactor is manufactured in Indonesia and represents a high-quality solution for automation and control gear. It is a new, Better World product designed for disassembly and easy recycling, aligning with sustainable industrial practices.
Explore more Schneider Electric automation and control products to optimize your electrical system design and application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 11 kW at 690V AC.
The contact current rating for this unit is 25 A.
It is equipped with a 110V AC coil for operation.
This contactor features a 3-pole design suitable for various applications.
The dimensions are 45mm in length, 92mm in width, and 85mm in depth.
It operates effectively within a temperature range of -5°C to 60°C.
This unit is designed for DIN rail mounting, facilitating easy installation.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor conforms to multiple standards including IEC, UL, and CSA.
It features IP20 finger-safe screw terminals with markings for both North American and international standards.
It is suitable for controlling motors, lifts, escalators, conveyors, compressors, and HVAC systems.
This model is manufactured in Indonesia.
