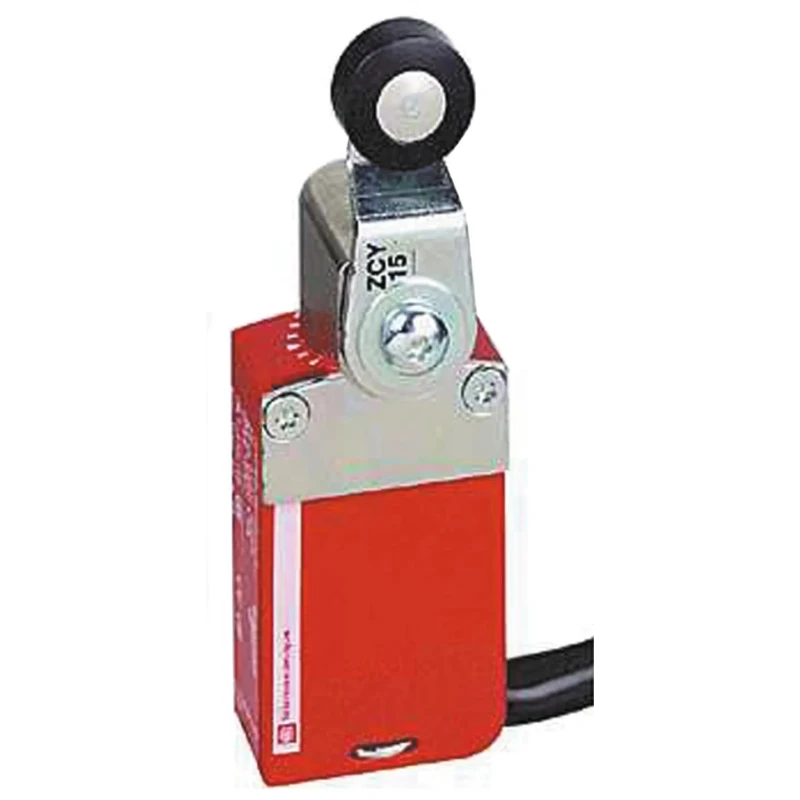

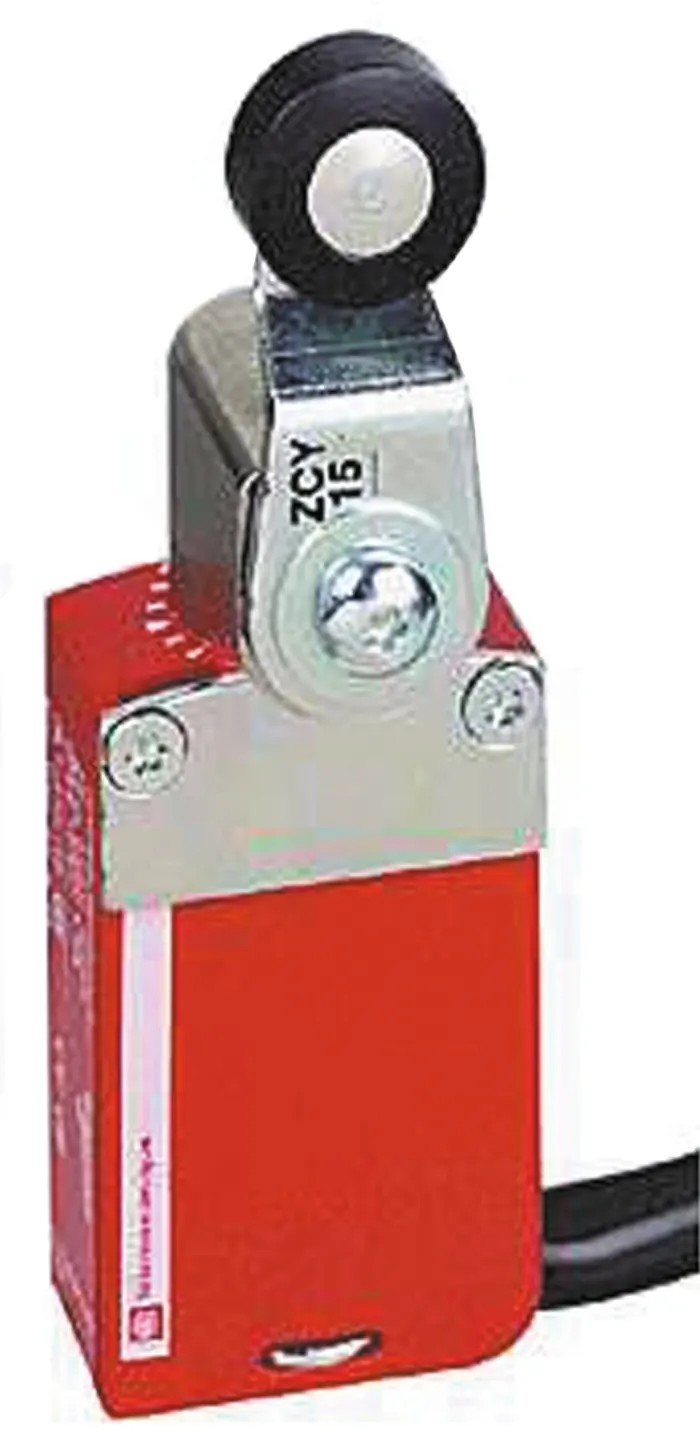

Telemecanique Sensors Roller Lever Limit Switch Metal Housing IP68 IP67 IP66 1 NO 2 NC 1.5A XCSM3715L2

Telemecanique Sensors XCSM3715L2 Roller Lever Limit Switch is a high-performance industrial-grade device designed primarily for machinery safety and automation control applications. It features a robust metal housing that provides IP68, IP67, and IP66 ingress protection ratings, ensuring resistance to dust and water in harsh environments.

This limit switch incorporates a roller lever actuator type with a snap action contact mechanism composed of 1 Normally Open and 2 Normally Closed contacts, allowing versatile switching configurations. It supports an electrical switching current of 1.5A and a compatible switching DC voltage up to 250V dc, suitable for controlling moderate power electrical circuits.

The switch operates reliably within a temperature range from -25°C minimum to 70°C maximum, making it suitable for diverse environmental conditions. Cable-type terminals provide secure and straightforward electrical connections on site.

Engineered for longevity, this switch achieves a mechanical life expectancy of 10 million cycles, making it ideal for continuous industrial use. The roller lever's rotary head is adjustable in 15° increments across 360° rotation, enabling installation flexibility according to user requirements.

Its front mounting orientation simplifies deployment in safety and automation systems. The product fully complies with multiple internationally recognized standards such as CE, CSA, EN, IEC, RoHS, and UL. The XCSM series safety limit switches are intended for monitoring machine guards, access doors, and other protective equipment, fulfilling stringent safety categories when used appropriately.

The switch features a roller lever actuator type suitable for precise mechanical applications. Its contact configuration is 1 Normally Open (NO) and 2 Normally Closed (NC) snap action contacts. Designed to operate under temperatures from -25°C to 70°C.

Switch supports switching current of 1.5A and switching DC voltage up to 250V dc. Includes cable-type terminals for reliable electrical connectivity. Compact metal housing ensures durability and industrial-grade protection.

Mechanical life of switch reaches up to 10,000,000 cycles for long-term use. Adjustable rotary head with 360° movement in 15° steps allows flexible installation. Mounting orientation is front-facing, facilitating easy fitting on machinery.

Certified under international standards including CE, CSA, EN, IEC, RoHS, and UL.

This limit switch is well suited for industrial automation, manufacturing machines, safety equipment, and control systems that require reliable, precise position sensing and switching capabilities. It supports applications in industrial tools, laboratory machines, HVAC equipment, and agricultural machinery among others.
