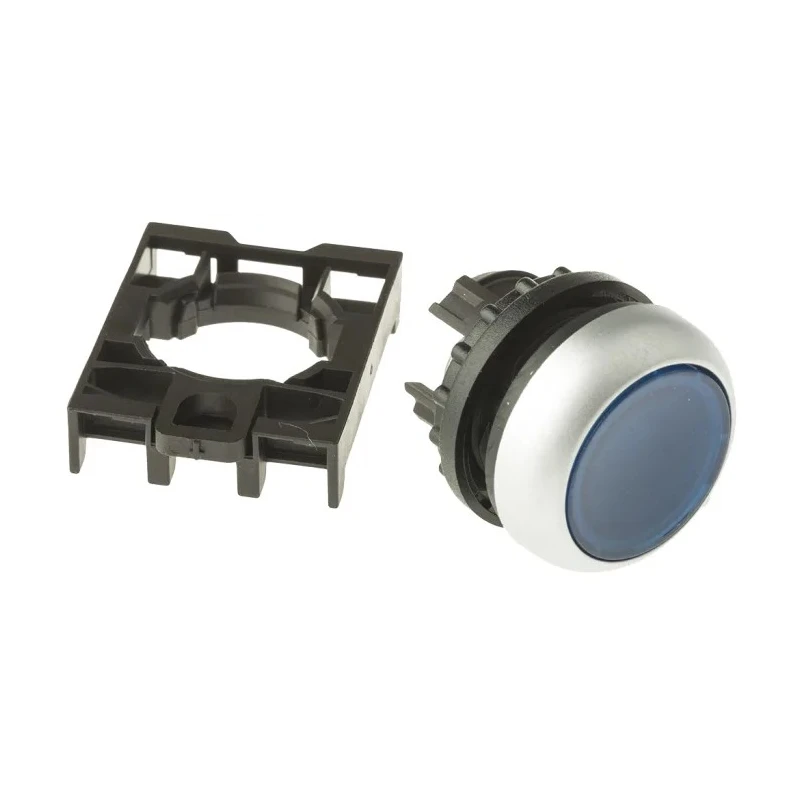

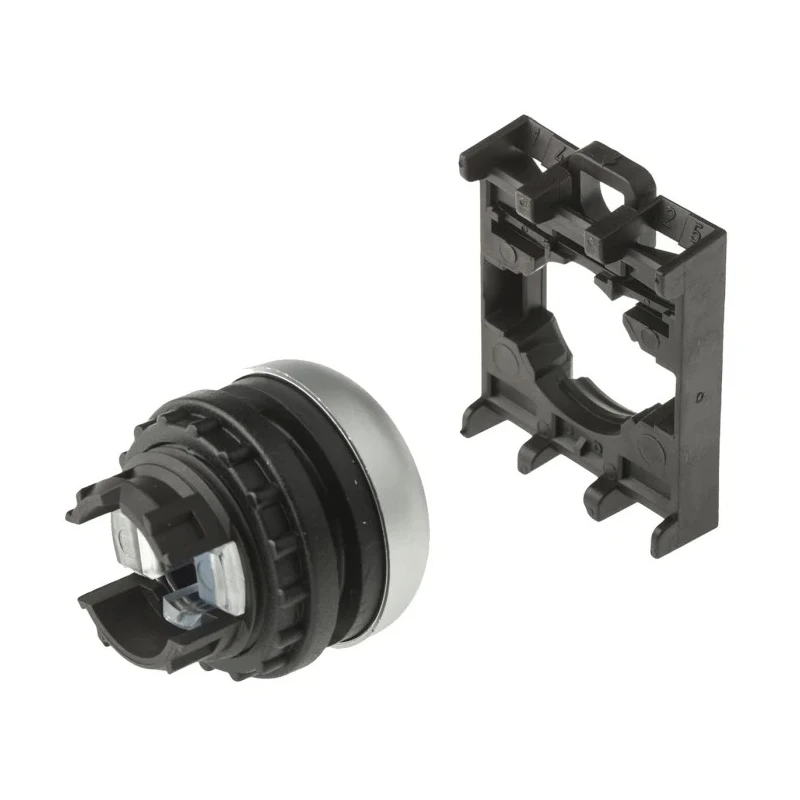

Eaton RMQ Titan M22 Series Blue Momentary Push Button Head, 22 mm Cutout, IP69K 78635805 M22-DL-B+M22-A

Eaton 78635805 M22-DL-B+M22-A RMQ Titan M22 Series Blue Momentary Push Button Head features a 22 mm cutout size and robust plastic construction suitable for industrial automation and machine control applications. This blue push button head enables reliable start or stop control of machinery, operating only when pressed to prevent accidental activation.

With a push button diameter of 29.7 mm, it fits standard panels and includes the body and fixing collar for secure mounting. It carries an IP69K rating, providing complete dust protection and high resistance to high-pressure water jets, making it ideal for contaminated or harsh environments.

The product supports a broad operating temperature range from -25°C to +70°C, enhancing durability under extreme environmental conditions. The plastic button is resistant to abrasion, impact, and chemicals, offering long service life in industrial settings.

This push button head conforms to international standards such as CSA-C22.2 No. 14-05, IEC 60068 parts 2-27, 2-30, 2-78, IEC/EN 60529, IEC/EN 60947-5, UL 508, and is CE certified, underscoring its quality and reliability.

Used in automated factory processes and machinery, the momentary actuation type allows the button to perform operations only while pressed, serving functions like reset indication typically denoted by the blue color.

Blue plastic button designed for momentary actuation ensures safe operation. Push button diameter is 29.7 mm to fit standard control panels effectively. IP69K rating offers protection against dust and high-pressure water jets.

Suitable for harsh environments with operating temperature from -25°C to +70°C. Robust plastic construction provides resistance to abrasion, impact, and chemicals. Includes body and fixing collar for easy installation. Conforms to multiple standards including CSA, IEC, UL, and CE.

Ideal for machine control and automation applications requiring momentary push buttons.

Choose Eaton RMQ Titan M22 Series Blue Momentary Push Button Heads for dependable industrial push button solutions within control systems, electrical automation, and manufacturing environments. Explore additional Eaton products for comprehensive switching components and automation solutions at EnvMart.
