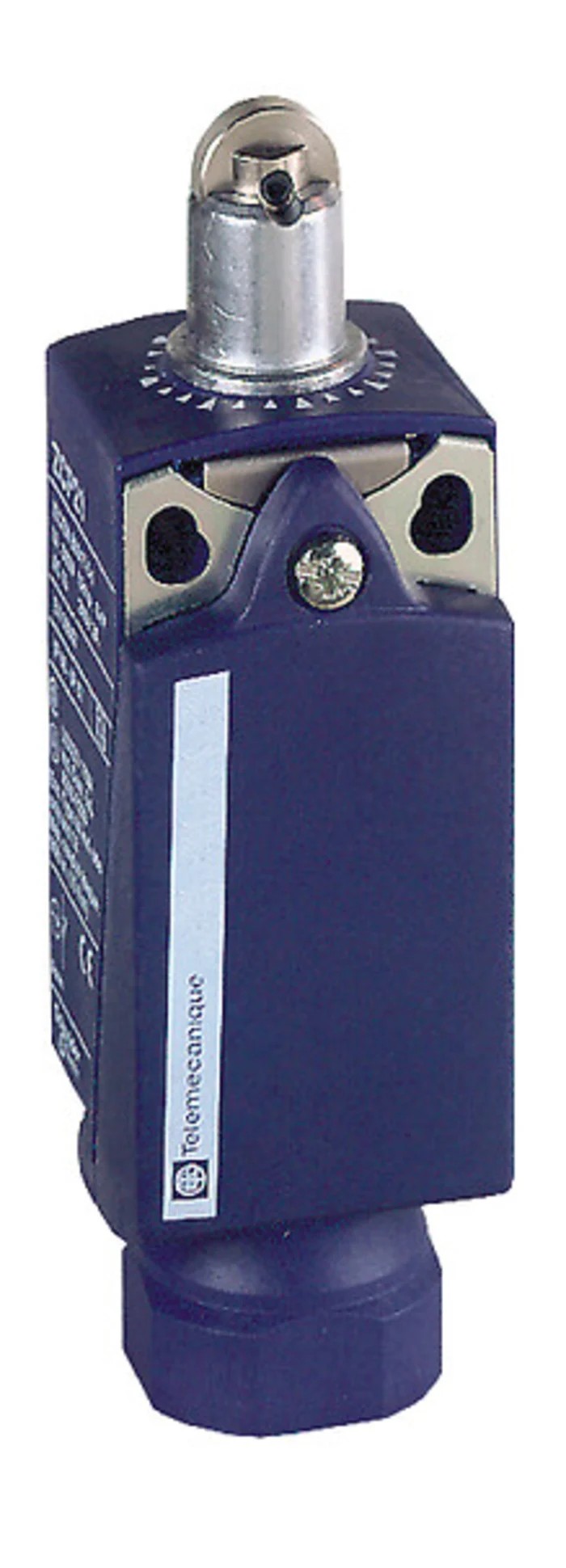

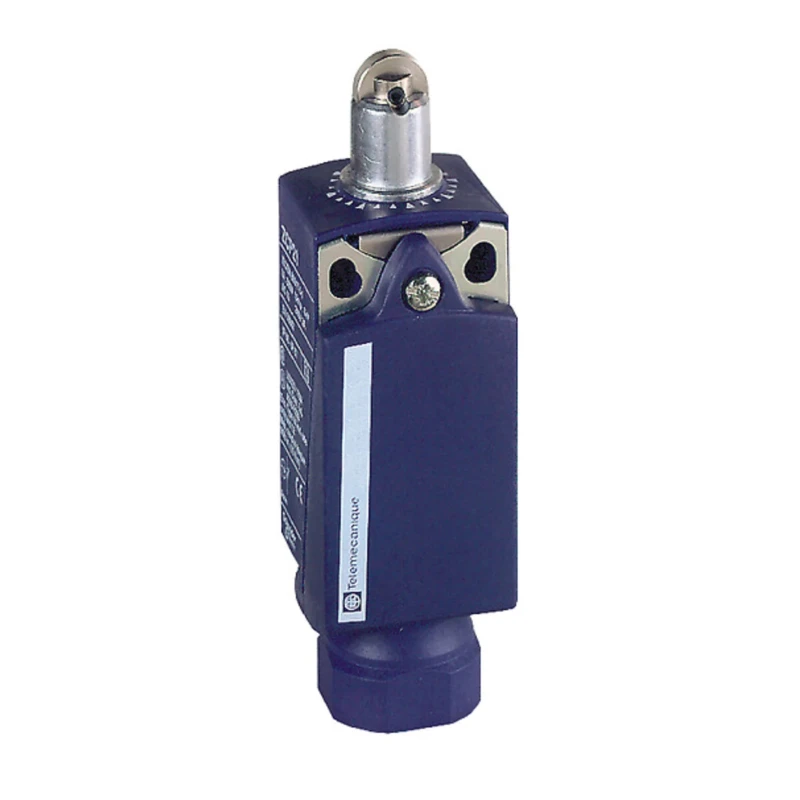

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch 1 NO/1 NC, IP66, IP67, Plastic Housing XCKP2102N12

Telemecanique Sensors XCKP2102N12 is a roller plunger limit switch from the OsiSense XC Series designed for precise position sensing and control in industrial systems. It is engineered with a snap-action contact mechanism featuring one Normally Open (1 NO) and one Normally Closed (1 NC) contact configuration to deliver fast and reliable circuit switching under moderate load conditions.

The limit switch is built with a robust plastic housing rated IP66 and IP67, shielding internal components from dust ingress and temporary immersion in water. Rated for a switching current of 10A, it supports AC voltages up to 240V and DC voltages up to 250V, making it suitable for various control and power circuit applications.

This switch is optimized for front mounting with a roller plunger actuator that provides positive mechanical engagement with machine parts, ideal for linear motion actuation. It operates effectively in environments ranging from -25°C to 70°C and incorporates screw clamp terminals with a 12.7mm conduit entry for secure and maintenance-friendly electrical connections.

With a mechanical life expectancy of 10 million cycles, it reduces the need for frequent replacements, enhancing reliability in demanding industrial applications. Its compact dimensions (65mm length, 31mm width, 30mm depth) allow easy integration within control panels and machinery.

Applications include end-of-travel sensing on conveyor systems, door position detection in industrial enclosures, limit detection on machine tools and presses, safety interlocks on manufacturing lines, and panel-mounted mechanisms requiring front access.

Compact electromechanical roller plunger actuator for precise control. IP66 and IP67 protection for harsh industrial environments. Snap-action contact design ensures rapid make-break signal transitions. 10A switching current compatible with 240V AC and 250V DC loads.

Long mechanical life of 10,000,000 cycles for durability. Temperature operating range from -25°C to 70°C for versatility. Secure screw clamp terminal wiring with 12.7mm conduit entry. Complies with CE, CSA, EN, IEC, RoHS, and UL standards.

French origin product ensuring quality manufacturing.

Explore the full range of Limit Switches and sensors from Telemecanique Sensors at EnvMart, perfect for automation, electrical, and mechanical industrial applications requiring reliability and precision.
