| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN1N3C10D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 0.013μH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 1.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 17mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 16GHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |

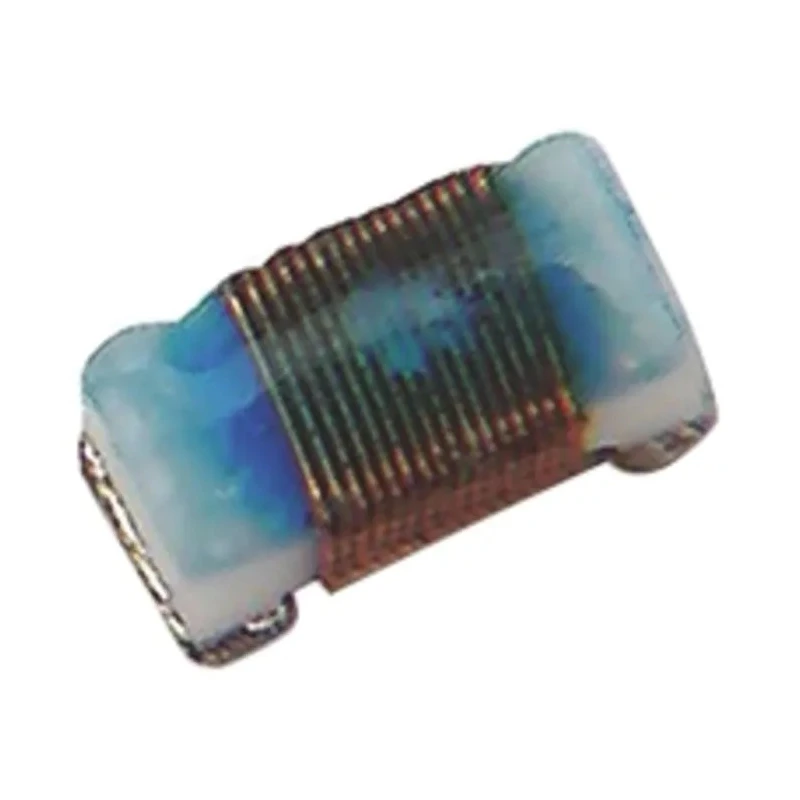

Murata LQW15AN1N3C10D is a high-quality 0402 unshielded wirewound surface mount inductor featuring a ferrite core. It offers an inductance of 0.013 μH with an inductance tolerance of ±0.2 nH and supports a maximum DC current of 1.2 A. This component is optimized for high-frequency circuits, particularly for VHF and UHF applications in wireless telecommunications such as Bluetooth, GSM, and W-LAN technologies.
Its compact dimensions of 1 mm length, 0.6 mm depth, and 0.5 mm height make it ideal for space-constrained PCB layouts. The solder termination style and paper tape packaging enable efficient automated assembly and reliable electrical connections.
Designed to operate reliably over a temperature range from -55°C to 125°C, the inductor delivers a low maximum DC resistance of 17 mΩ, minimizing power loss and heat generation during operation. The inductor's high self-resonant frequency of 16 GHz and minimum quality factor of 20 support superior performance in demanding RF circuits.
The RoHS compliant construction and moulded wirewound design add to the product's robustness and environmental compliance, making it suitable for industrial, telecommunications, and consumer electronics manufacturing use cases.
Compact 0402 package designed for high-frequency surface mount applications. Wirewound ferrite core construction for high resonance frequency and low resistance. Capable of handling a maximum DC current of 1.2 A. Wide operating temperature range from -55°C to 125°C ensures reliability.
RoHS compliant material and manufacturing standards. Minimum quality factor of 20 for efficient wireless communication circuit performance. Packaging on paper tape supports automated PCB assembly. Low maximum DC resistance of 17 mΩ reduces power dissipation.
Ideal for Bluetooth, GSM, and W-LAN wireless telecommunications applications. Moulded for enhanced mechanical strength and durability in electronic devices. Explore a wide range of Surface Mount Inductors and components at EnvMart for your electronic production and prototyping needs.
