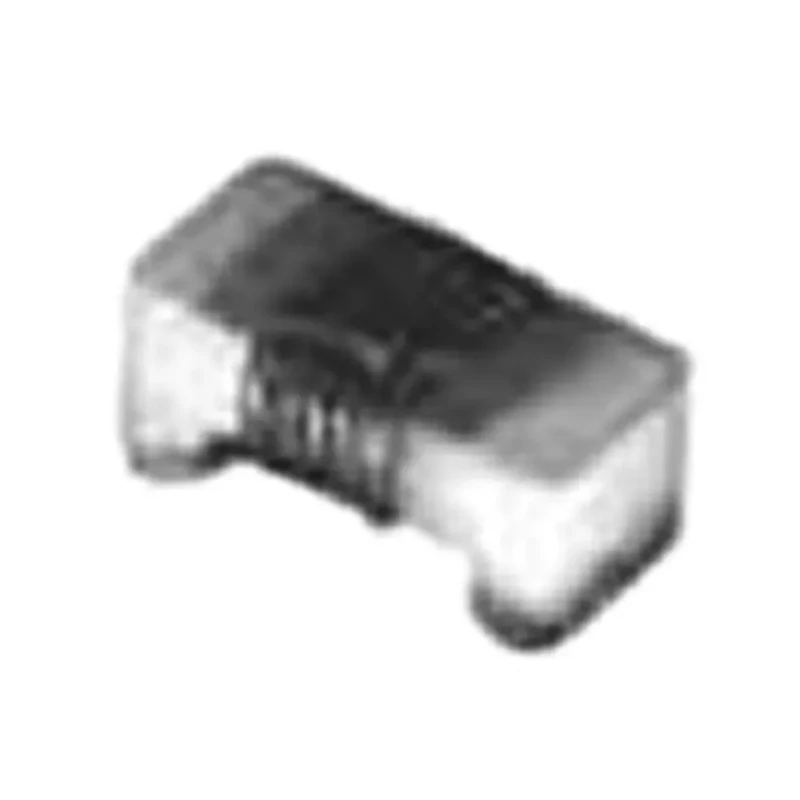

Murata Wirewound Surface Mount Inductor 10 nH ±2% 800 mA DC Current 5 GHz SRF LQW18AN10NG10D

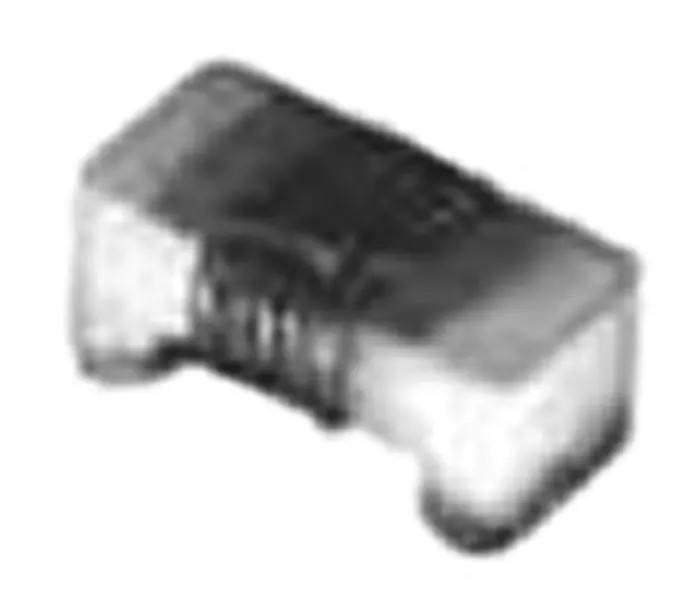

Murata LQW18AN10NG10D is a high-quality wirewound surface mount inductor engineered for demanding electronic applications requiring reliable inductance of 10 nH with a tight tolerance of ±2%.

This compact inductor utilizes the 1608 package format with physical dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, suitable for high-density circuit boards. It supports a maximum direct current of 800 mA and features a low DC resistance of 58 milliohms to minimize energy loss and heating.

Boasting a maximum self-resonant frequency of 5 GHz and a minimum quality factor of 38, it is optimized for very high frequency (VHF) and ultra-high frequency (UHF) circuit designs commonly found in Bluetooth, GSM mobile, and W-LAN wireless communication devices.

The wirewound construction combined with tin plating termination ensures durability and reliable soldering in automated assembly lines, with packaging supplied on paper tape to facilitate seamless insertion into machinery.

Operating temperature spans from -55°C to 125°C, allowing operation in diverse environmental conditions, and it meets RoHS compliance for environmental safety. Supports a maximum DC current of 800 mA. Compact 1608 package size facilitates space-saving designs.

Low DC resistance limits power dissipation. High self-resonant frequency suitable for wireless telecommunication frequencies. High quality factor ensures efficient circuit performance. Wirewound and tin plating provide mechanical reliability and solderability.

Wide temperature range for industrial applications. RoHS compliant and supplied on paper tape for ease of use. Ideal for Bluetooth, GSM, and W-LAN applications in industrial and commercial electronics. Explore more Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
