| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HS47NJ02D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Inductance | 47nH |
| Package/Case | 1005 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 720mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1GHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Wirewound |

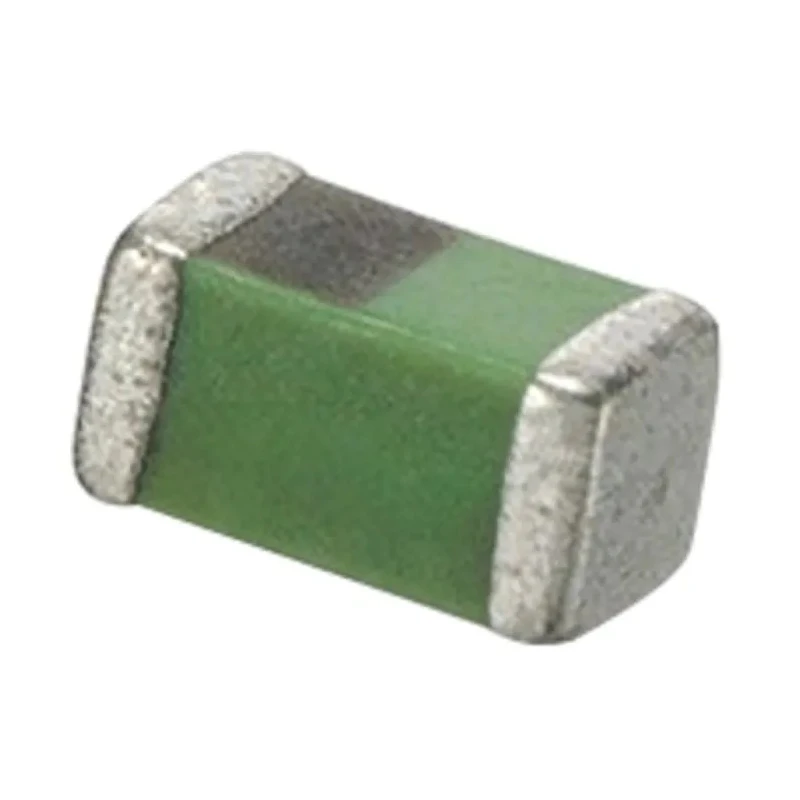

Murata LQG15HS47NJ02D is a high-frequency wirewound surface mount inductor with an inductance of 47 nanohenries (nH) and a tolerance of ±5%. This 1005 package size inductor supports a maximum DC current of 200 mA and boasts a low DC resistance of 720 milliohms (mΩ), making it suitable for power-saving applications.
This surface mount inductor is designed for use in RF circuit matching, WLAN networks, choke applications, and mobile communication equipment where stable inductance and high-frequency performance are critical. The device's quality factor of 8 at high frequencies enables efficient energy storage and loss reduction.
Operating reliably in temperatures ranging from -55°C to 125°C, this inductor provides robust performance under harsh thermal conditions. Its moulded wirewound construction ensures durability and mechanical strength.
The termination style is solder compatible for standard surface mount assembly methods, and it comes packaged on paper tape, facilitating automated production processes.
The compact 1 mm length, 0.5 mm height, and 0.5 mm depth dimensions allow for space-efficient PCB designs. There is no shielding on the device, and it contains two pins for electrical connection.
Applications include industrial electronics, telecommunications, power management circuits, and other electronics that require stable inductance at high frequency. Package size 1005 allows for compact surface mount designs.
High-frequency suitability with a self-resonant frequency up to 1 GHz. Wide operating temperature range ensures reliability under various conditions. Low DC resistance decreases power loss in circuits. Wirewound construction enhances inductance stability and durability.
Moulded design for mechanical strength and reliable long-term performance. Compatible with automated assembly due to paper tape packaging. Choose Murata LQG15HS47NJ02D for your next design requiring a technically advanced and reliable Surface Mount Inductor.
