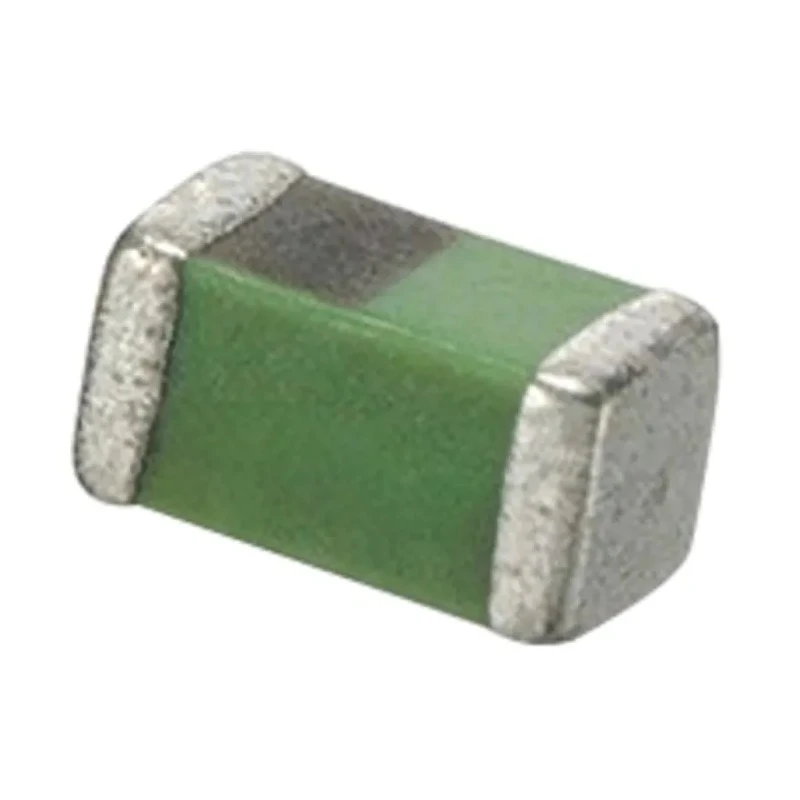

Murata Unshielded Wirewound Surface Mount Inductor 7.5 nH ±5% 300 mA 4.2 GHz Q:8 LQG15HS7N5J02D

Murata LQG15HS7N5J02D is an unshielded wirewound surface mount inductor designed for high frequency circuit applications with inductance of 7.5 nH ±5% tolerance and maximum DC current rating of 300 mA.

The inductor is manufactured in a compact 1005 package measuring 1 mm in length, 0.5 mm in height, and 0.5 mm in depth, making it ideal for space-constrained electronic assemblies.

Its maximum DC resistance of 240 mΩ ensures minimal power losses, while the device maintains stable performance over a wide operating temperature range from -55°C to 125°C.

Molded construction provides mechanical robustness and reliability, and the wirewound design offers a minimum quality factor of 8, supporting efficient operation up to a maximum self-resonant frequency of 4.2 GHz.

Electrical terminations use solder style pins, with a total pin count of 2, facilitating secure mounting on printed circuit boards. The product is delivered on paper tape packaging suitable for automated assembly processes.

This Murata LQG15HS7N5J02D inductor is commonly used as an RF choke and in WLAN network components, RF circuit matching, and mobile communication equipment resonance applications where high frequency stability and low losses are critical.

This wirewound Surface Mount Inductor is molded for durability and is designed for high frequency applications up to 4.2 GHz. The component has a compact 1005 package with dimensions 1 mm length, 0.5 mm height, and 0.5 mm depth.

It offers a maximum DC resistance of 240 mΩ for efficient low power loss operation. The inductor is suitable for use in chokes, WLAN networks, RF circuit matching, and mobile communication equipment. Operating temperature ranges from -55°C to 125°C ensuring reliability under varying environmental conditions.

Termination style is solder, facilitating straightforward PCB mounting. Contains 2 pins and comes packaged on paper tape for manufacturing ease.

This product supports various industrial and commercial electronics manufacturing, including applications in telecommunications and high-frequency circuits. Browse other inductors and surface mount components at EnvMart for complete electronic solutions.
