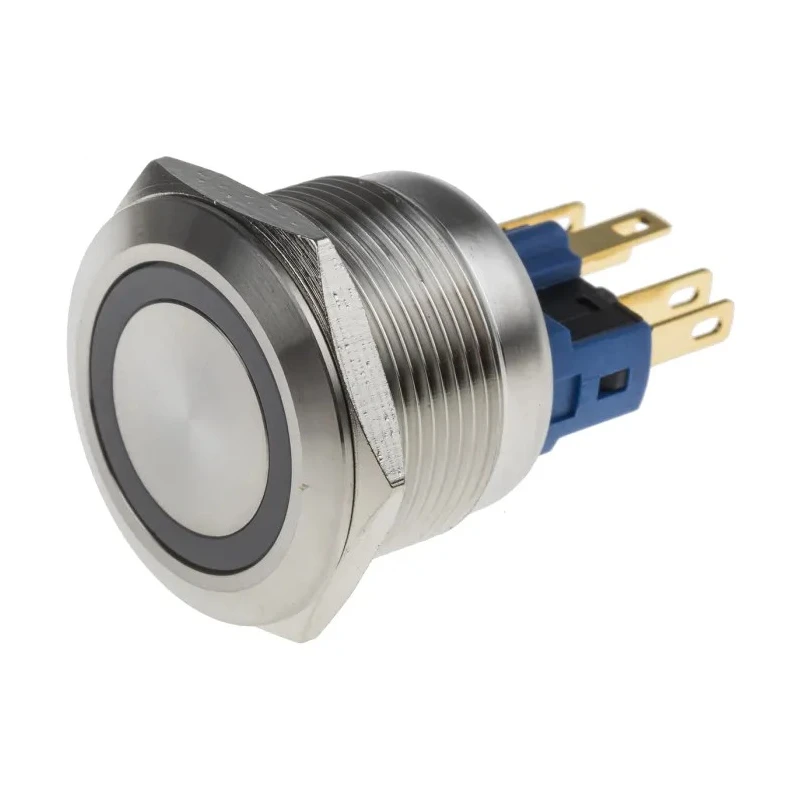

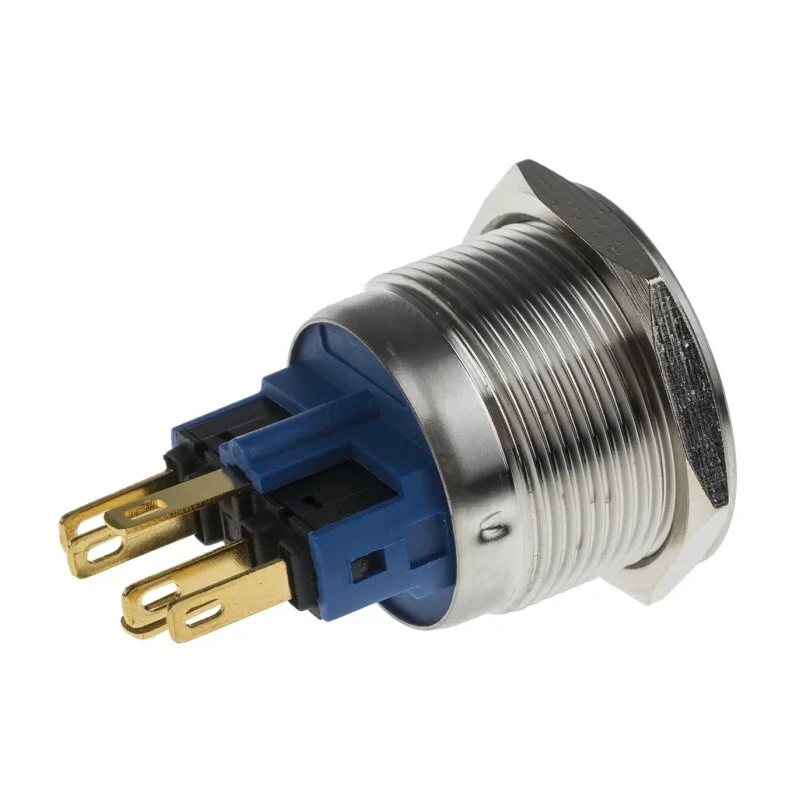

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, Blue LED, IP65/IP67, 250 V AC, 5A 811-8534

RS PRO 811-8534 is a high-quality illuminated momentary push button switch designed for reliable panel mounting applications requiring a 22 mm cutout. This SPDT switch is suitable for controlling electrical devices in industrial, commercial, and automation sectors where robust and vandal-resistant operation is essential. The flat silver actuator coupled with a blue LED provides clear visual status indication.

Built with stainless steel construction and silver-plated copper alloy contacts, it offers durability and excellent electrical performance. The quick connect terminal type simplifies installation and maintenance.

With an ingress protection rating of IP65 and IP67, the switch resists dust and water ingress, making it ideal for outdoor panels, control kiosks, and challenging environments subject to moisture exposure. It operates reliably over a temperature range down to -20°C.

The device supports a 5 amp contact current at up to 250 V AC, suitable for a wide range of electrical loads. Its operational lifespan extends to 50,000 cycles, ensuring long-term usage without frequent replacement.

The switch is momentary with a flat silver actuator providing reliable operation. It incorporates a blue LED indicator for illuminated status display. Designed for panel mounting with quick connect terminals. High ingress protection with IP65 and IP67 ratings ensures water and dust resistance.

Operating temperature ranges from -20°C suitable for various environments. Constructed with stainless steel for enhanced durability and vandal resistance. Silver-plated copper alloy contacts and terminals ensure effective electrical conductivity.

Rated operating life of up to 50,000 cycles guarantees longevity. Meets RoHS compliance for hazardous substances.

This RS PRO push button switch is well-suited for electrical panels, automation systems, instrumentation, industrial controls, and public access systems requiring a rugged and visible switching interface. The high ingress protection and stainless steel build make it ideal for harsh industrial and outdoor applications.
