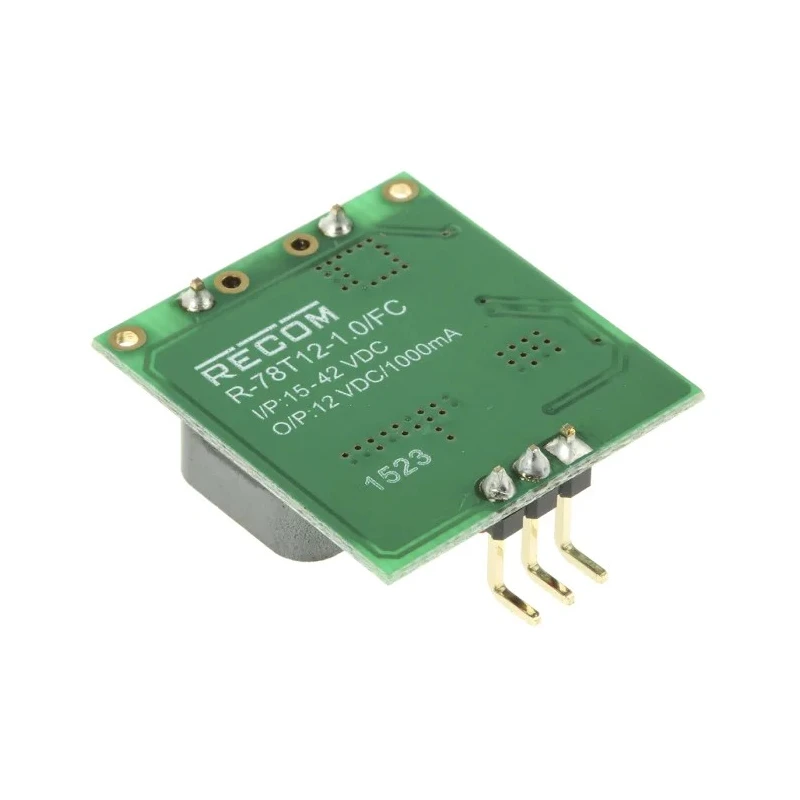

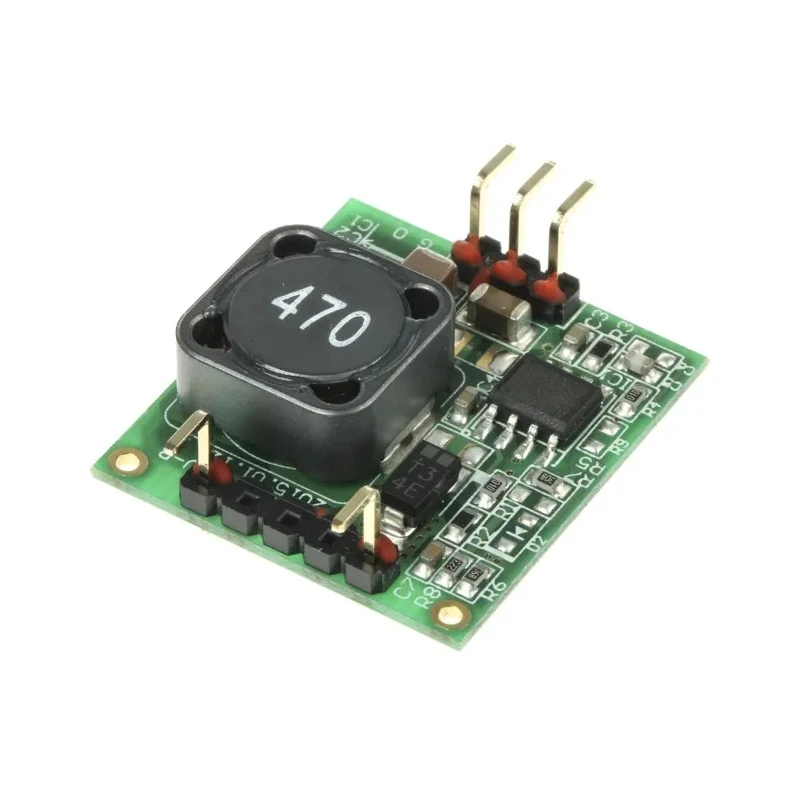

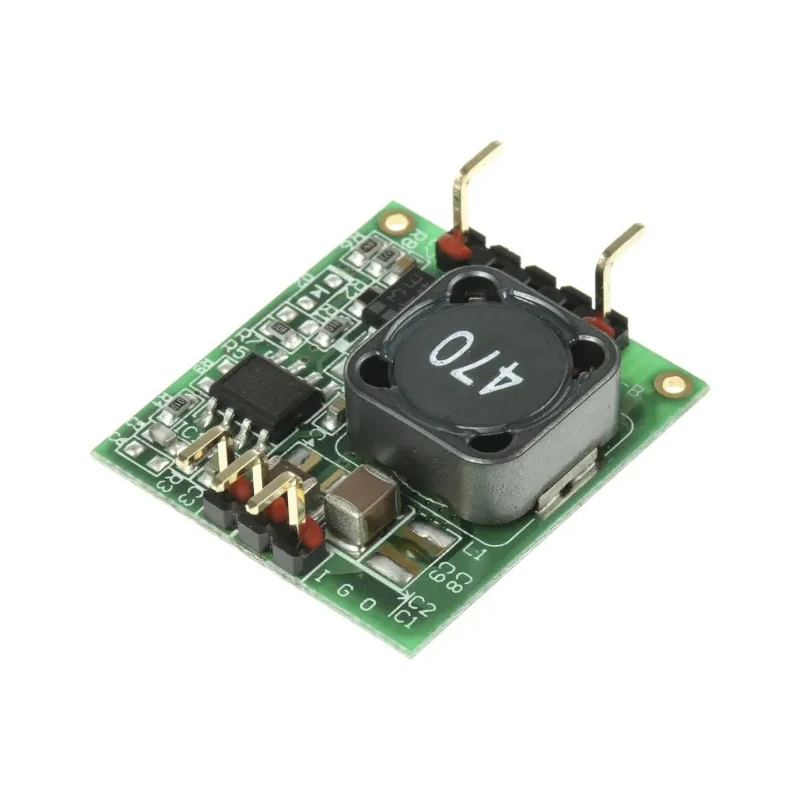

Recom DC/DC Converter 12V DC Input 1A 15V DC Input Screw Surface Mount 85°C Max Temp -40°C Min Temp SIP R-78T12-1.0/FC-TRAY

Free Delivery in India | Lowest Global Shipping Charges

Recom DC/DC Converter 12V DC Input 1A 15V DC Input Screw Surface Mount 85°C Max Temp -40°C Min Temp SIP R-78T12-1.0/FC-TRAY

Name: Recom DC/DC Converter 12V DC Input 1A 15V DC Input Screw Surface Mount 85°C Max Temp -40°C Min Temp SIP R-78T12-1.0/FC-TRAY
Brand: Recom
SKU: 375207
Price: 20.22 USD
Availability: InStock



Category DC/DC Converter Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters Recom R78-T DC/DC Converter, 12V dc/, 12V dc Input
Brand	Recom
Efficiency	95%
Length	23mm
Model	R-78T12-1.0/FC-TRAY
Depth	10mm
Gross Weight	4.5g
Width	25mm
Mount Type	Screw, Surface
Series	R78-T
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	367000h
Number of outputs	1
Ripple and Noise	100mV Pk-Pk
Maximum Input Voltage	12V dc
Minimum Input Voltage	15V dc
Output Voltage 1	12V dc
Output Current 1	1A

Key Features

High efficiency of up to 95% eliminates need for heatsinks or fans.
Compact SIP package with low profile suitable for portable battery-operated applications.
Wide input voltage range from 7V to 42V for versatile application.
Reliable operation with MTBF of 367,000 hours and short circuit protection.
Industry standard pin-out options for easy integration.
Fixed switching frequency at 350kHz with shielded magnetics.
Ripple and noise level maintained at 100mV peak-to-peak.
Operating temperature range from -40°C min to 85°C max ensures robust performance.

Product Description

Recom R-78T12-1.0/FC-TRAY DC/DC Converter is a compact and efficient switching regulator ideal for applications requiring stable 12V DC output with 1A current. Designed with screw surface mount package type (SIP), this converter provides reliable performance across a wide temperature range (-40°C to 85°C) and high efficiency up to 95%.

This model supports input voltages from 7V to 42V, making it versatile for various electronic and industrial uses including portable battery-powered equipment. The switching frequency is fixed at 350kHz with shielded magnetics, minimizing EMI while maintaining stable operation.

The converter features a robust design with an MTBF of 367,000 hours and includes short circuit protection to enhance reliability. Its compact dimensions (23mm length x 25mm width x 10mm depth) and lightweight profile (4.5g) make it easy to incorporate into tight spaces without the need for additional cooling solutions.

The 12V output voltage with 1A current and low ripple and noise (100mV peak-to-peak) ensures maximum efficiency and signal integrity. The device complies with industrial standards but does not carry specific approvals or certifications.

This Recom R-78T series DC/DC converter is suitable for industrial, laboratory, telecommunications, and power management applications where space and energy efficiency are critical. It offers an ideal balance between performance, reliability, and compactness for designers and engineers.

High efficiency up to 95% eliminates extra thermal management. Wide input voltage range supports flexible power supply sources. Compact SIP package saves PCB space for dense designs. Reliable long MTBF and protection features enhance product lifetime.

Stable output with low ripple and noise for sensitive electronics. Operating temperature range from -40°C to 85°C suits harsh environments. Surface screw mount for secure installation and easy maintenance. Explore more DC/DC Converters and power solutions in the Recom range at EnvMart.
