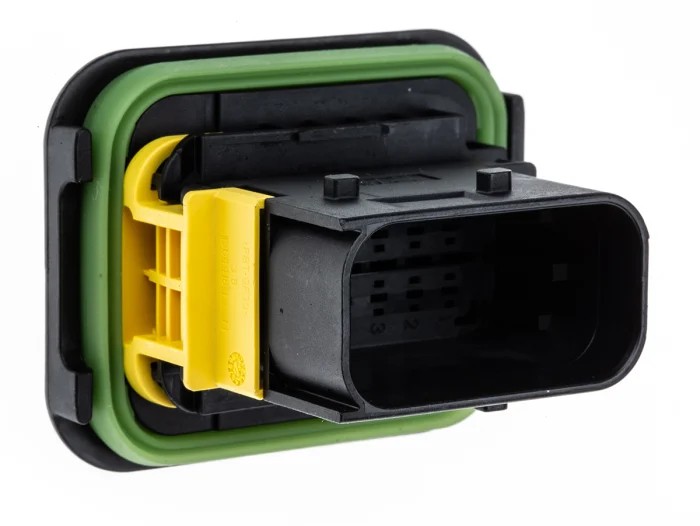

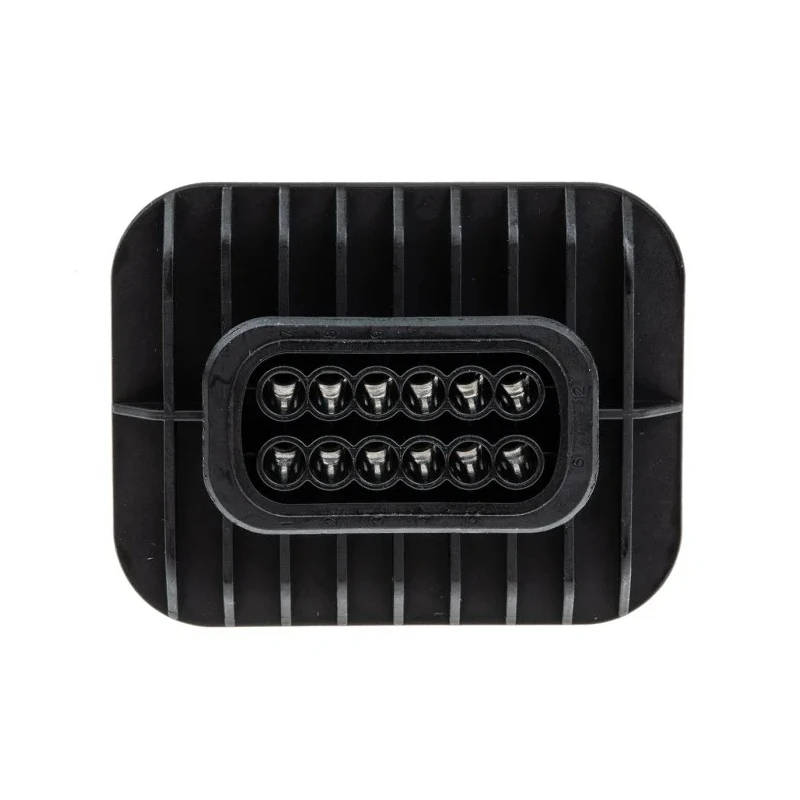

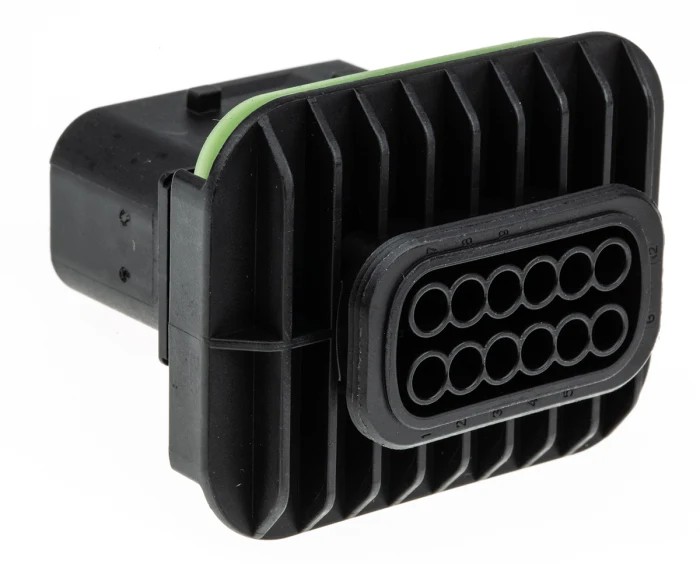

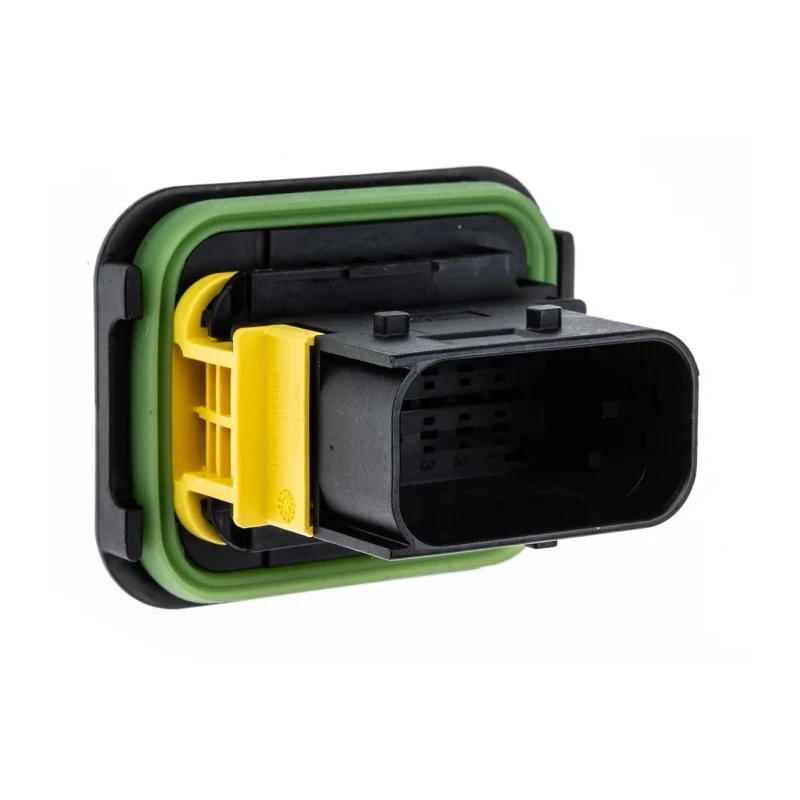

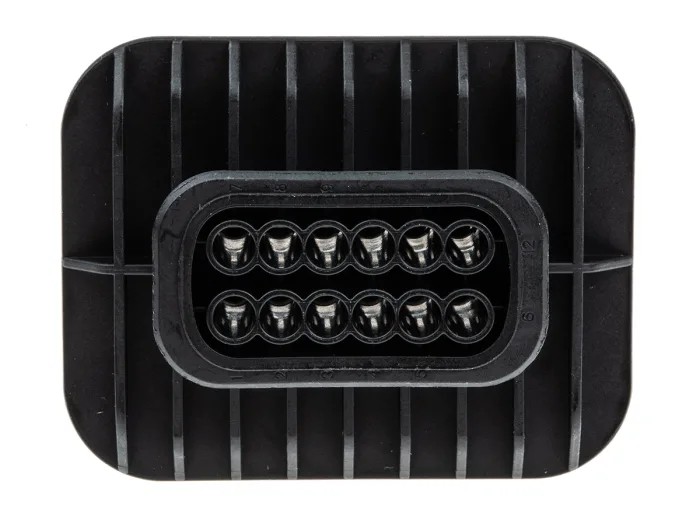

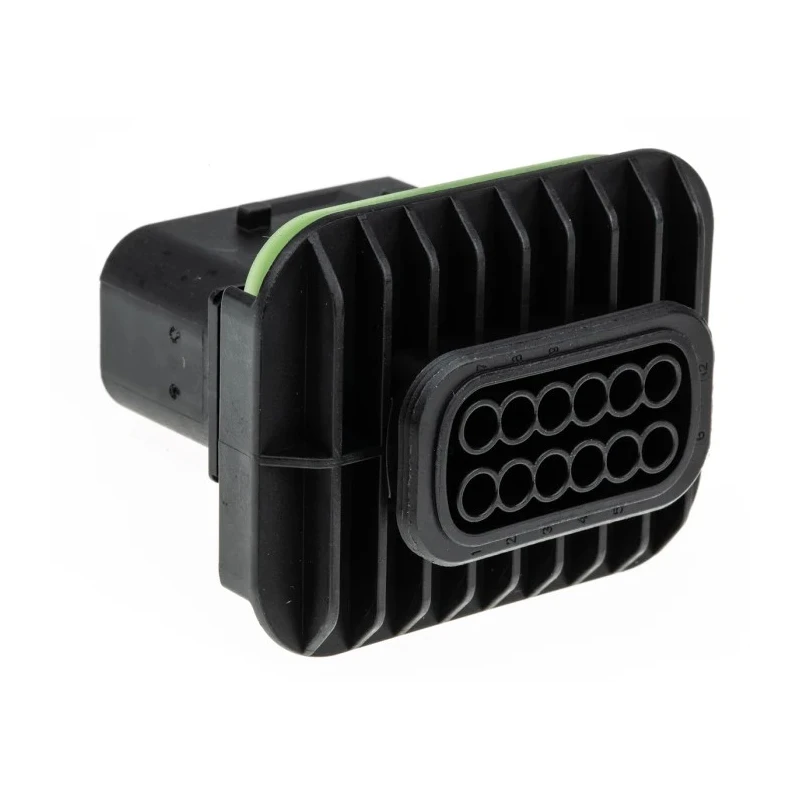

TE Connectivity Automotive Connector Male Black Flange 12 Way Crimp Termination 1-1564520-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 40A |
| Height | 39.8mm |
| Depth | 50.5mm |
| IP Rating | IP67, IP6K9K |
| Width | 47.05mm |
| Gender | Male |
| Mount Type | Flange |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | 1564520 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | MCP Interconnection System |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Number of Contacts | 12 |
| • Operating Temperature | -40°C to +140°C |
| • Connector Style | Housing for male terminals |
| • Connector System | Wire-to-Wire |
| • Housing Features | Centreline (Pitch): 4 mm |
Key Features
- Supports a current rating of 40A for heavy-duty applications.
- MCP Interconnection System with male gender and flange mount type.
- Designed with 2 rows and a centreline pitch of 4 mm.
- Operates reliably within temperature range of -40°C to 140°C.
- Rated IP67 and IP6K9K for water and dust ingress protection.
- Housing constructed from fibreglass reinforced polybutylene terephthalate for durability.
- Complies with EU ELV and RoHS standards for environmental safety.
- Suitable for wire-to-wire automotive electrical connections.
Product Description
TE Connectivity 1-1564520-1 Automotive Connector Male is a high-performance connector designed specifically for automotive applications requiring durable and reliable wire-to-wire connections. Featuring a black flange housing with 12 contacts configured in 2 rows, this connector utilizes a crimp termination style for secure electrical connections.
The connector system is based on the MCP Interconnection System with a centreline pitch of 4 mm, making it suitable for a variety of commercial and off-road vehicle uses. It is designed to carry a current of up to 40 amps, ensuring efficient power transmission in demanding environments.
The housing material is fibreglass reinforced polybutylene terephthalate, providing excellent mechanical strength and resistance to vibration, temperature extremes, and harsh environmental conditions. The connector offers IP67 and IP6K9K ratings, giving comprehensive protection against ingress of dust and water, even under high-pressure cleaning.
Operating temperature ranges from -40°C to +140°C, allowing the connector to maintain performance in extreme temperature scenarios commonly found in automotive and industrial applications. It incorporates an integral secondary locking mechanism, various polarization keys, low mating force, and slide locking for secure and reliable mating.
This product is fully compliant with EU ELV and EU RoHS directives, reflecting its commitment to environmental safety and sustainability. It is ideal for wire-to-wire interconnection needs in automotive, commercial vehicles, and industrial applications requiring robust sealing and high current handling.
Supports heavy-duty automotive electrical applications with a 12 way configuration. Robust housing material ensures durability and long service life. IP67 and IP6K9K rated for excellent environmental protection. Wide operating temperature from -40°C to 140°C suits diverse conditions.
Meets stringent EU environmental and safety standards. Discover more Automotive Connectors and related components in the Electronics & Electricals category at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 40A, making it suitable for heavy-duty applications.
The connector operates reliably within a temperature range of -40°C to +140°C.
It is rated IP67 and IP6K9K, providing excellent protection against water and dust ingress.
This model utilizes a crimp termination style for secure electrical connections.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, which provides durability and resistance to harsh conditions.
It features 12 contacts configured in 2 rows, with a centreline pitch of 4 mm.
This model employs a flange mount type for installation.
Yes, it complies with EU ELV and RoHS standards for environmental safety.
It is ideal for wire-to-wire interconnection needs in automotive, commercial vehicles, and industrial applications.
The connector has a height of 39.8 mm, a width of 47.05 mm, and a depth of 50.5 mm.
Yes, it incorporates an integral secondary locking mechanism and various polarization keys for secure mating.
This connector is part of the 1564520 series within the MCP Interconnection System.
