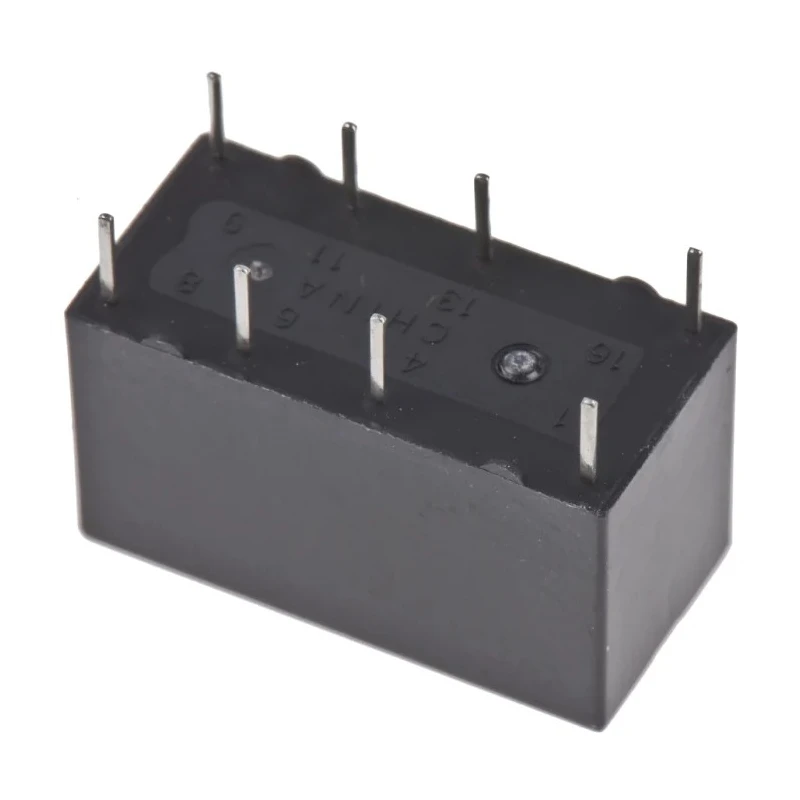

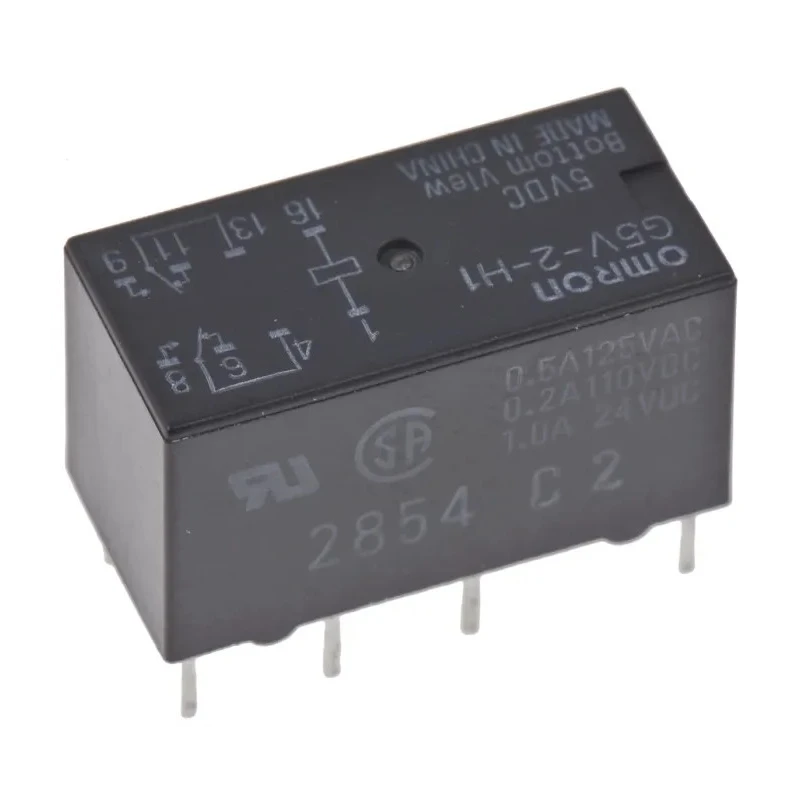

Omron PCB Signal Relay 5V DC Coil 1A DPDT with Gold Plated Contacts G5V-2-H1 DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H1 DC5 |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | W11 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 166Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- This relay offers ultra-high sensitivity coil designed for signal circuits.
- It is fully sealed and complies with FCC Part 68 requirements for reliability.
- Gold plated contact material enhances conductivity and durability.
- Operating temperature ranges from -25°C to 70°C, suitable for varied industrial conditions.
- Compact dimensions with 20.5mm length, 10.5mm width, and 11.5mm height allow space-efficient PCB mounting.
- Coil resistance is 166 ohms and power consumption is low at 150mW.
- The relay supports switching voltages up to 125V AC and 125V DC.
- Designed for solder terminal type mounting on printed circuit boards.
Product Description
Omron G5V-2-H1 DC5 is a miniature PCB signal relay engineered for precise switching applications in automation, electrical control, and signal conditioning sectors. Featuring a 5V DC coil with ultra high sensitivity, this DPDT relay suits intricate signal circuits requiring compact and reliable switching elements.
This fully sealed relay complies with RoHS standards and FCC Part 68 requirements, ensuring safety and environmental compliance. Its gold plated contacts assure consistent low-resistance performance and enhanced lifespan.
With a coil resistance of 166 ohms and coil power of only 150mW, the relay provides efficient operation with minimal power draw. It supports switching currents of up to 1A and switching voltages of 125V AC and DC, making it ideal for low-power signal applications.
Its operating temperature range from -25°C to 70°C covers diverse industrial environments. The compact form factor of 20.5mm length, 10.5mm width, and 11.5mm height facilitates easy PCB mounting with solder terminals.
Common applications include industrial automation controllers, telecommunications equipment, instrumentation, and other electrical signal switching needs. This relay offers ultra-high sensitivity coil designed for signal circuits.
It is fully sealed and complies with FCC Part 68 requirements for reliability. Gold plated contact material enhances conductivity and durability. Operating temperature ranges from -25°C to 70°C, suitable for varied industrial conditions.
Compact dimensions with 20.5mm length, 10.5mm width, and 11.5mm height allow space-efficient PCB mounting. Coil resistance is 166 ohms and power consumption is low at 150mW. The relay supports switching voltages up to 125V AC and 125V DC.
Designed for solder terminal type mounting on printed circuit boards.
Explore our comprehensive range of Signal Relays and components in the Electronics & Electricals category at EnvMart for precision and quality products tailored to your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 5V DC.
It can handle a maximum switching current of 1A.
The dimensions are 20.5mm in length, 10.5mm in width, and 11.5mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range is from -25°C to 70°C.
It is designed for PCB (Printed Circuit Board) mounting with solder terminals.
The coil resistance is 166 ohms.
It supports maximum switching voltages of 125V AC and 125V DC.
The coil power consumption is low at 150mW.
Yes, it complies with RoHS standards and FCC Part 68 requirements.
The contacts are made of gold plated material, enhancing conductivity and durability.
Common applications include industrial automation controllers, telecommunications equipment, and instrumentation.
