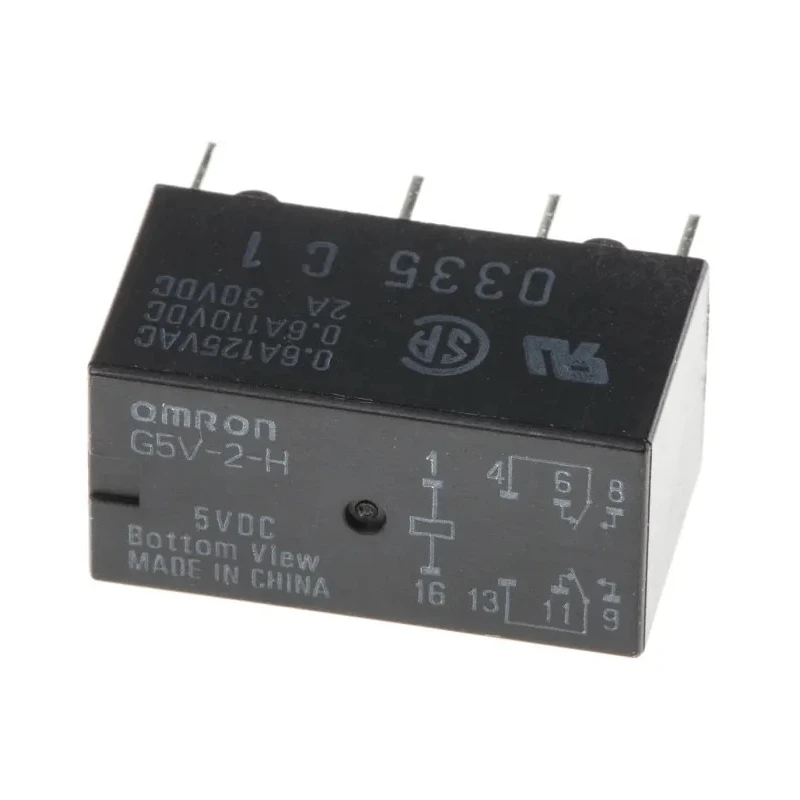

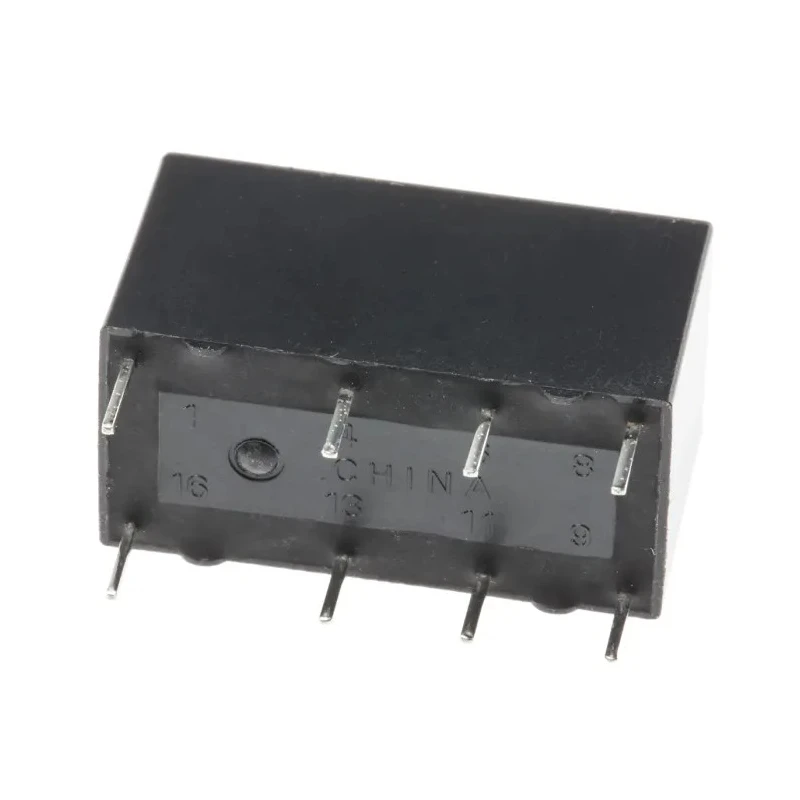

Omron PCB Signal Relay 5V dc Coil 1A DPDT G5V-2-H 5DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H 5DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 166Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- This relay is designed for PCB mounting with a compact size of 20.5mm length, 10mm width, and 11.5mm height.
- It supports switching AC and DC voltages up to 125V, suitable for various electronic applications.
- The coil resistance of 166 ohms with a power consumption of 150mW ensures energy-efficient operation.
- Gold-plated contacts provide enhanced conductivity and durability for reliable performance.
- Operating temperature ranges from -25°C to 70°C, supporting diverse environmental conditions.
- Fully sealed construction complies with FCC Part 68 requirements for electromagnetic compatibility.
- The relay conforms to RoHS standards, ensuring environmental safety and reduced hazardous substances.
- Ideal for automation, control circuits, and signal conditioning in industrial and electronic manufacturing.
Product Description
Omron G5V-2-H 5DC PCB Signal Relay is a miniature Signal Relay designed to provide reliable switching performance with a 5V dc coil and a 1A switching current capacity. It features a DPDT (Double Pole Double Throw) contact configuration, suited for precise signal control on printed circuit boards (PCB).
The relay measures 20.5mm in length, 10mm in width, and 11.5mm in height, making it ideal for compact electronic assemblies. Its coil resistance of 166Ω and power consumption of 150mW contribute to low power operation.
Suitable for switching both AC and DC voltages up to 125 volts, this relay utilizes gold-plated contacts that ensure excellent conductivity and mitigate corrosion, extending the relay's life and reliability.
With an operating temperature range from -25°C to +70°C, the relay is robust for a variety of industrial environments. The relay body is fully sealed, meeting FCC Part 68 electromagnetic compliance and conforming to RoHS environmental standards, making it compliant for global usage.
This relay is designed for PCB mount applications requiring sensitive signal switching. The double-pole double-throw contact configuration allows complex switching operations. Gold-plated contacts enhance signal integrity and longevity.
Compact dimensions allow integration into space-constrained designs. Energy-efficient coil power and resistance reduce electrical consumption. Reliable operation across wide temperature ranges supports industrial and commercial uses.
RoHS compliance ensures it meets stringent environmental directives.
This Omron relay is widely used in automation systems, electrical control panels, manufacturing equipment, laboratory instruments, and telecommunications infrastructure. Its durability and precise switching make it a preferred choice for signal conditioning and control circuits where reliable and repetitive operations are critical.
Browse the Electronics & Electricals category on EnvMart for additional Omron relays and signal conditioning products engineered to meet a broad range of industrial demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G5V-2-H 5DC relay has a switching current capacity of 1A.
This model measures 20.5mm in length, 10mm in width, and 11.5mm in height.
The coil voltage for this relay is 5V DC.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching operations.
The power consumption of the coil is 150mW.
This relay can switch AC and DC voltages up to 125V.
The operating temperature range is from -25°C to +70°C.
This relay is designed for PCB mounting.
The contacts are made of gold-plated material, enhancing conductivity and durability.
Yes, it conforms to RoHS standards, ensuring reduced hazardous substances.
The relay features solder-type terminals for connection.
It is suitable for automation, control circuits, and signal conditioning in industrial and electronic manufacturing.
