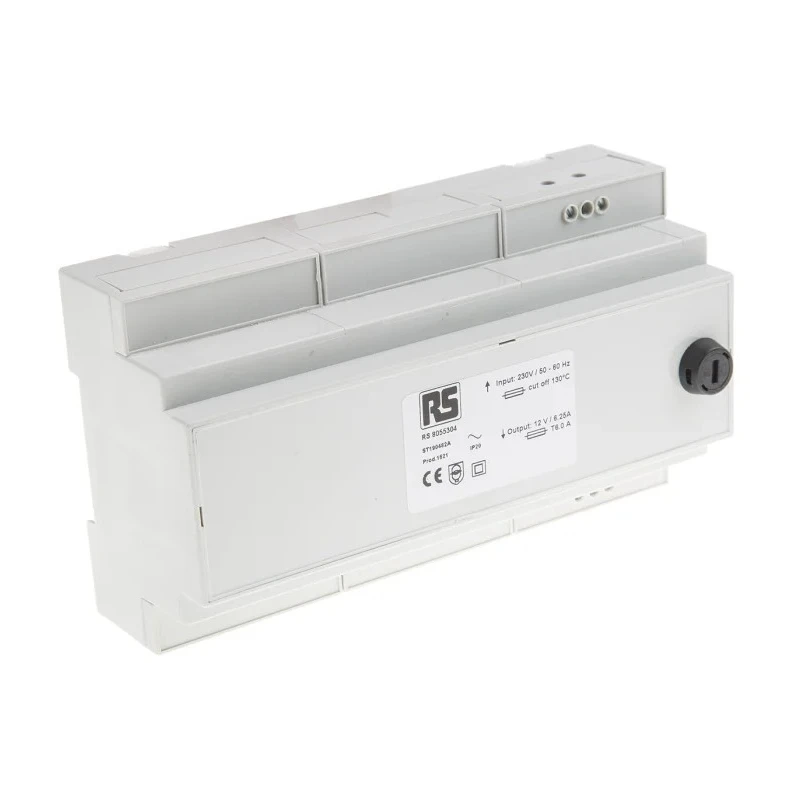

RS PRO 75 VA DIN Rail Transformer 230 V ac Primary 12 V ac Secondary AS/NZS 61558.2.6 CE RoHS 805-5304

The RS PRO 805-5304 DIN Rail Transformer is a reliable industrial-grade electrical component designed for efficient voltage transformation in electronic and power equipment. Featuring a single-phase moulded design with IP20 protection rating, it is ideal for mounting on a standard 35 mm DIN rail (TS35) within electrical panels.

This transformer operates at a primary voltage of 230 V ac with a secondary output voltage of 12 V ac, delivering a rated power of 75 VA suitable for a variety of commercial and industrial applications including automation systems, instrumentation, and control panels.

Terminated with screw terminals, the device offers secure and robust electrical connections. It supports operation at standard mains frequencies between 50 Hz and 60 Hz, and is engineered to endure a maximum temperature of 120°C, classified under temperature class E insulation, ensuring long service life under continuous load conditions.

Safety and compliance are guaranteed with adherence to AS/NZS 61558.2.6 and AS/NZS 61558.1 standards, along with CE and RoHS certifications that demonstrate environmental and electrical safety conformity.

With compact dimensions of 160 mm in width, 90 mm in length, and 58 mm in depth, combined with a manageable weight of 1.8 kg, this transformer is easy to integrate into existing electrical infrastructure without requiring extensive panel redesign.

Single phase moulded IP20 transformer for DIN rail mounting. Screw terminal type for secure electrical connections. Short circuit and overload protected for continuous applications. Temperature class E with max operating temp of 120°C.

Complies with AS/NZS 61558 and IEC/BS/EN safety standards. Compact size and lightweight design for versatile installation. Constructed in Poland to high manufacturing standards.

This product is a dependable choice for electrical engineers and technicians seeking high-quality DIN Rail Transformers for integration in industrial, manufacturing, water treatment, HVAC, and commercial power systems. Explore more power transformers and components within the RS PRO range on EnvMart to find complementary electrical solutions.
