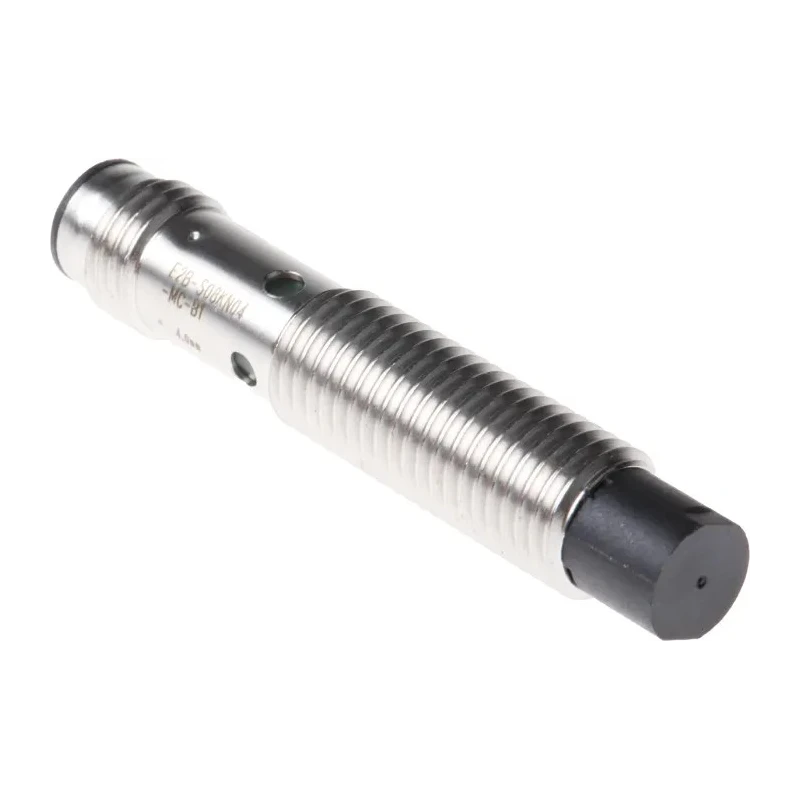

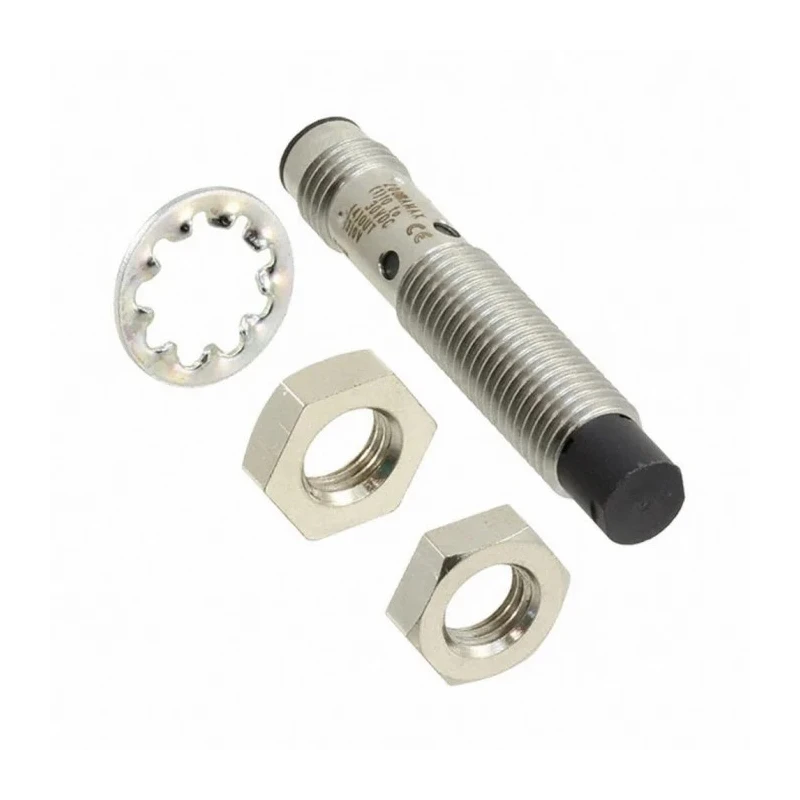

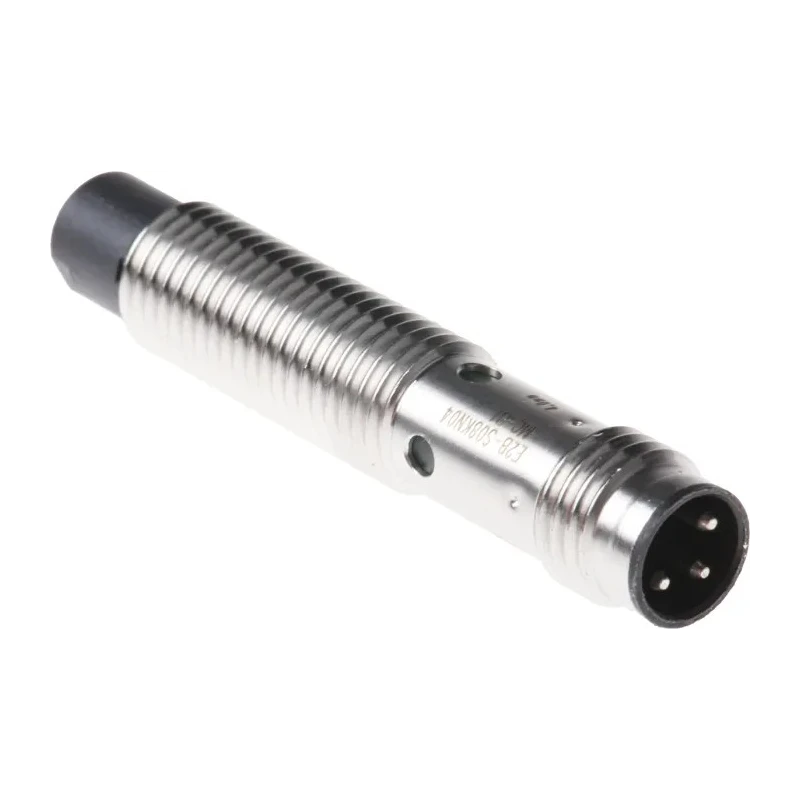

Omron Threaded Barrel Inductive Proximity Sensor M8 x 1 24V DC 4mm Detection PNP Output Stainless Steel E2B-S08KN04-MC-B1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Length | 44mm |
| Model | E2B-S08KN04-MC-B1 |
| Depth | 6.6mm |
| IP Rating | IP67 |
| Width | 13mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | E2B |
| Maximum Operating Temperature | 70°C |
| Thread Size | M8 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V dc |
| Materials Detected | Ferrous Metal |
| Maximum Detection | 4mm |
Key Features
- This sensor features a robust stainless steel body for durability in rugged environments.
- It has an M8 x 1 thread size and measures 44 mm in length and 13 mm in width.
- Rated IP67, it is protected against dust and water ingress for reliable operation.
- Offers non-flush mounting with an M8 terminal type for easy installation.
- Operates at a maximum supply voltage of 24 V DC with up to 200 mA switching current.
- Detects ferrous metals effectively at distances up to 4 mm.
- Functioning temperature range from -25°C to 70°C supports diverse industrial conditions.
- Unshielded sensing with a maximum switching frequency of 1 kHz enables fast response.
Product Description
The Omron E2B-S08KN04-MC-B1 threaded barrel Inductive Proximity Sensor is designed for reliable metal detection in industrial automation and control systems. Featuring a stainless steel housing, it offers robust mechanical protection and corrosion resistance, ideal for harsh environments.
This sensor detects ferrous metal objects up to 4 mm away with a precise PNP output, operating within a voltage range of up to 24 V DC and a switching current of 200 mA. Its compact threaded barrel form factor with M8 x 1 mounting thread allows easy installation in machinery and automated production lines.
IP67 rated, the sensor is protected from dust and water ingress, allowing its use in applications requiring stringent ingress protection. It operates reliably in temperatures ranging from -25°C to +70°C, making it suitable for environmental extremes often encountered in manufacturing and processing plants. The sensor is unshielded with a maximum switching frequency of 1 kHz for quick sensing responses.
Typical industrial applications include automated manufacturing lines, level and position detection in tanks and machinery, object counting on conveyor systems, and precise robotics control. The sensor's M8 connector type supports straightforward installation and wiring.
This sensor features a robust stainless steel body for durability in rugged environments. It has an M8 x 1 thread size and measures 44 mm in length and 13 mm in width. Rated IP67, it is protected against dust and water ingress for reliable operation.
Offers non-flush mounting with an M8 terminal type for easy installation. Operates at a maximum supply voltage of 24 V DC with up to 200 mA switching current. Detects ferrous metals effectively at distances up to 4 mm. Functioning temperature range from -25°C to 70°C supports diverse industrial conditions.
Unshielded sensing with a maximum switching frequency of 1 kHz enables fast response.
Engineered and built in Indonesia, this sensor is part of the reliable Omron E2B series known for industrial quality and long service life. Its CE certification confirms compliance with European safety standards.
Explore a wide range of industrial sensors and automation components at EnvMart to optimize your production efficiency and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can detect ferrous metal objects at distances up to 4 mm.
It operates reliably within a temperature range from -25°C to +70°C.
This sensor features a PNP output type for its signal.
It has an IP67 rating, providing protection against dust and water ingress.
The maximum supply voltage for this sensor is 24 V DC.
It is specifically designed to detect ferrous metals.
The maximum switching frequency is 1 kHz, allowing for quick sensing responses.
This sensor measures 44 mm in length, 13 mm in width, and has a depth of 6.6 mm.
It offers non-flush mounting with an M8 x 1 thread size for installation.
The maximum switching current is 200 mA.
This sensor is manufactured in Indonesia.
It is CE certified, confirming compliance with European safety standards.
