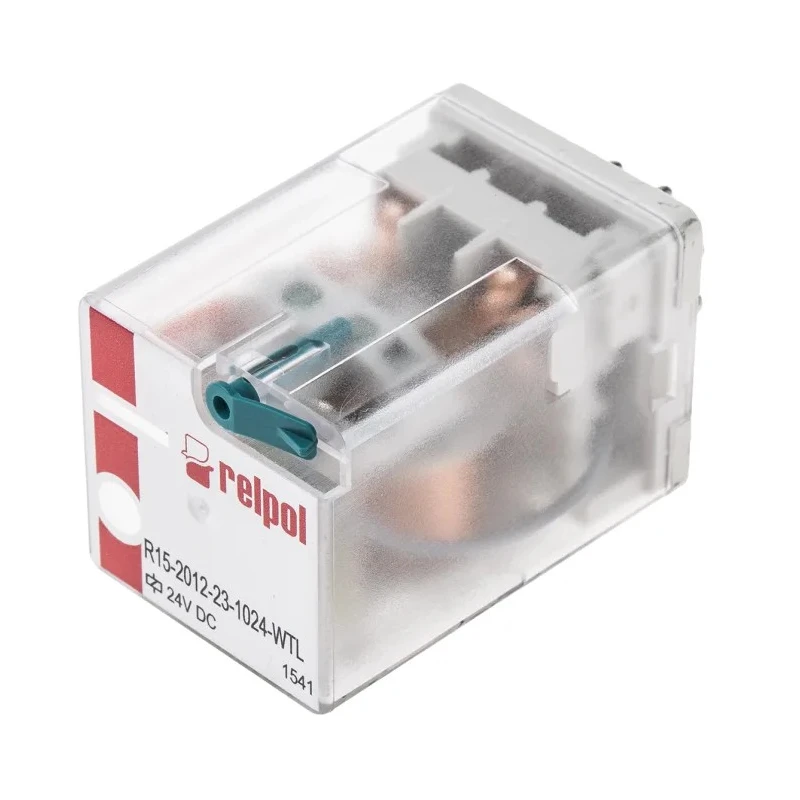

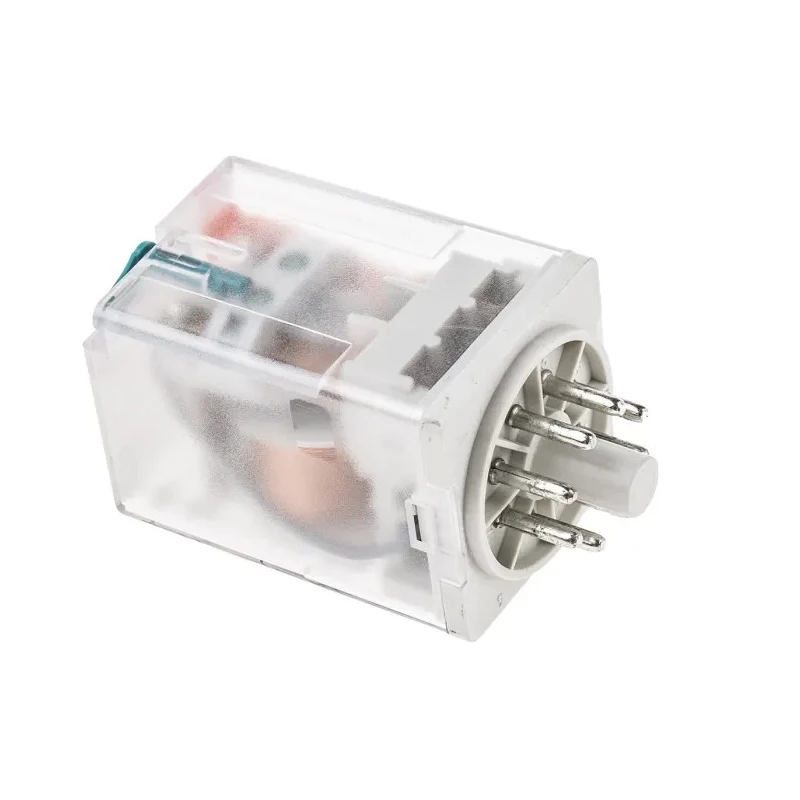

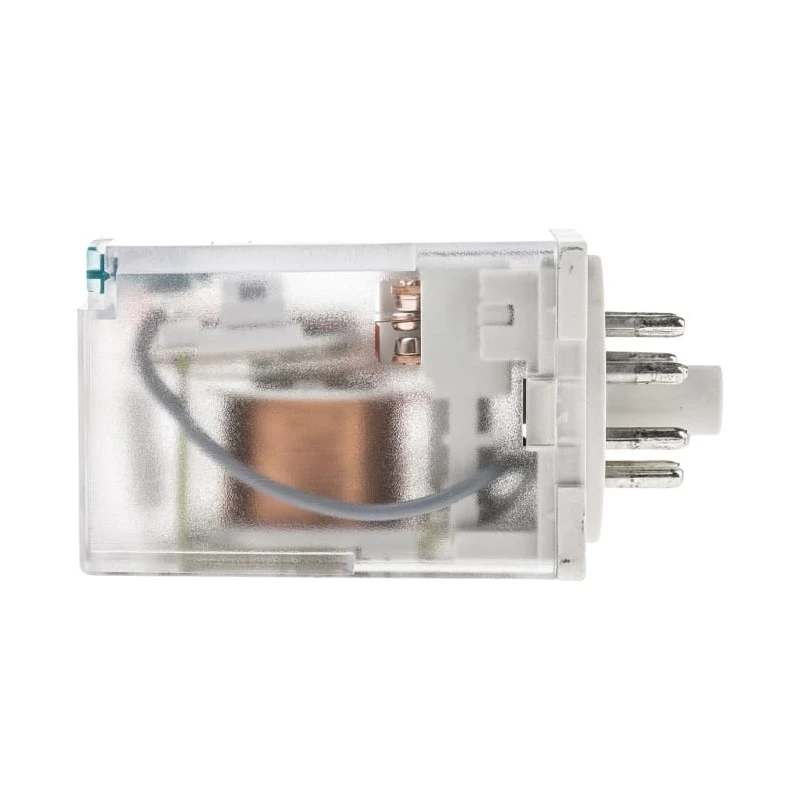

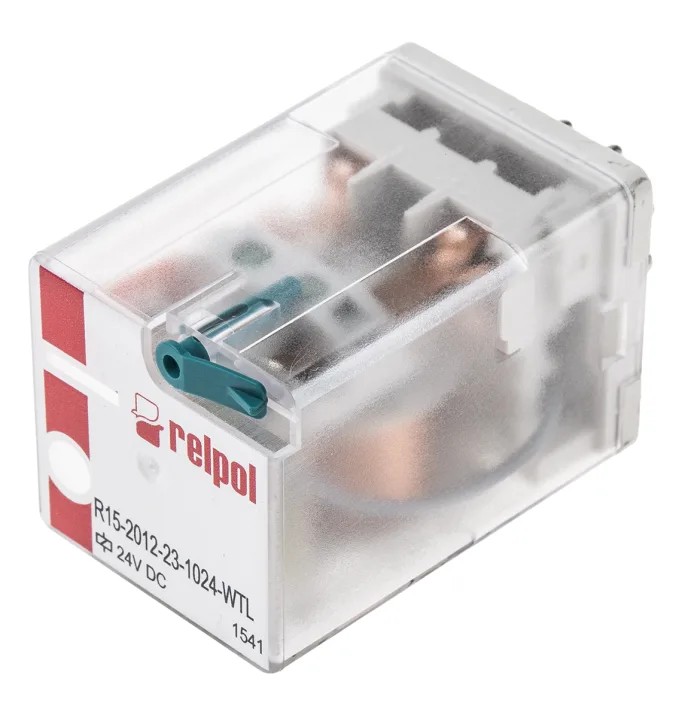

Relpol Power Relay 24V DC Coil 10A Switching Current DPDT Plug-In Terminal R15-2012-23-1024-WTL

Relpol R15-2012-23-1024-WTL is a high-quality Power Relay designed for industrial and automation applications requiring precise control with dependable durability. Featuring a 24V DC coil, this DPDT (Double Pole Double Throw) relay delivers a switching current capacity up to 10A, making it suitable for controlling heavier electrical loads within automation, machinery, and electrical panel systems.

Its miniature form factor, with dimensions of 35mm length, 35mm height, and 54.4mm width, facilitates easy integration even in compact spaces. The relay’s plug-in terminal configuration enhances ease of installation and quick replacement in maintenance scenarios.

The relay contacts employ silver alloy material to ensure low contact resistance and high reliability over extensive operational cycles. It supports a switching power of 1.5W with coil resistance of 430Ω, thus optimizing energy consumption within control circuits. Able to safely switch DC voltages up to 24V and AC voltages up to 440V, it meets varying power control requirements.

Engineered to operate efficiently within a broad temperature range from -40°C to 70°C, the device is suitable for challenging industrial environments. Certified to CSA, UL, and UR standards, Relpol assures adherence to rigorous safety and performance norms.

This model is part of the R15 series of miniature industrial relays and features standard WT (mechanical indicator and lockable front test button) functions for operational feedback and safety testing. The relay is cadmium-free and RoHS compliant, supporting environmentally conscious manufacturing practices.

Coil voltage rating of 24V DC ensures effective electromagnetic switching. DPDT contact configuration for multi-circuit control. Maximum switching current of 10 amps supports a wide range of loads. Compact size allows fitment in tight electrical panel layouts.

Test button and mechanical indicator for safe and easy diagnostics. Robust silver alloy contacts optimize conductivity and longevity. Wide temperature range supports diverse industrial applications. Certified under CSA, UL, and UR for international safety standards.

Plug-in terminal type promotes straightforward installation and service. Environmentally compliant with RoHS directive.

This relay is ideal for applications spanning industrial machinery control, HVAC automation, power monitoring equipment, manufacturing control panels, and other automated systems requiring reliable DPDT switching capability at moderate voltage and current levels.
