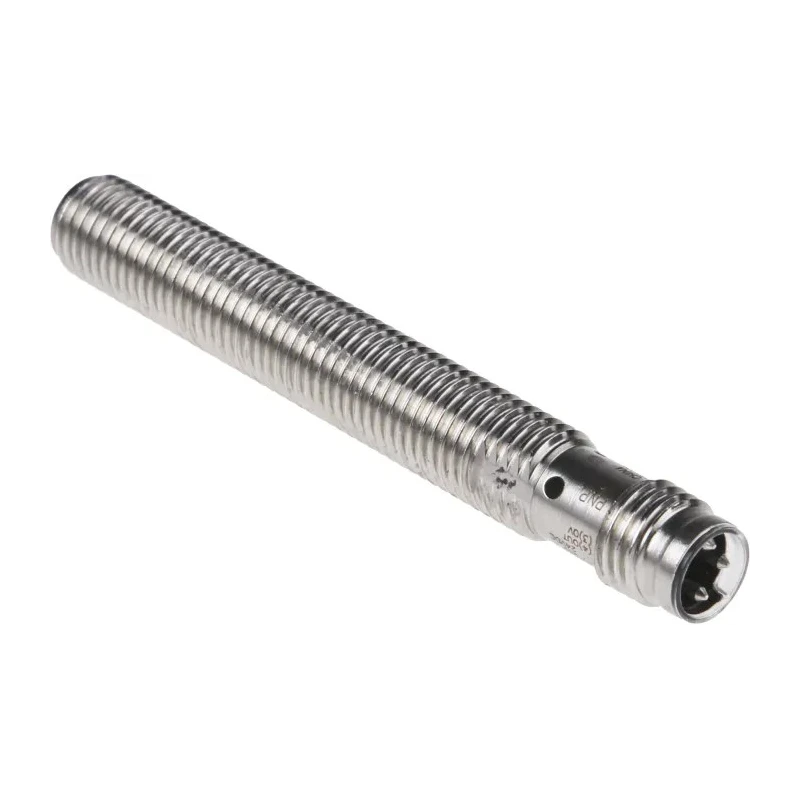

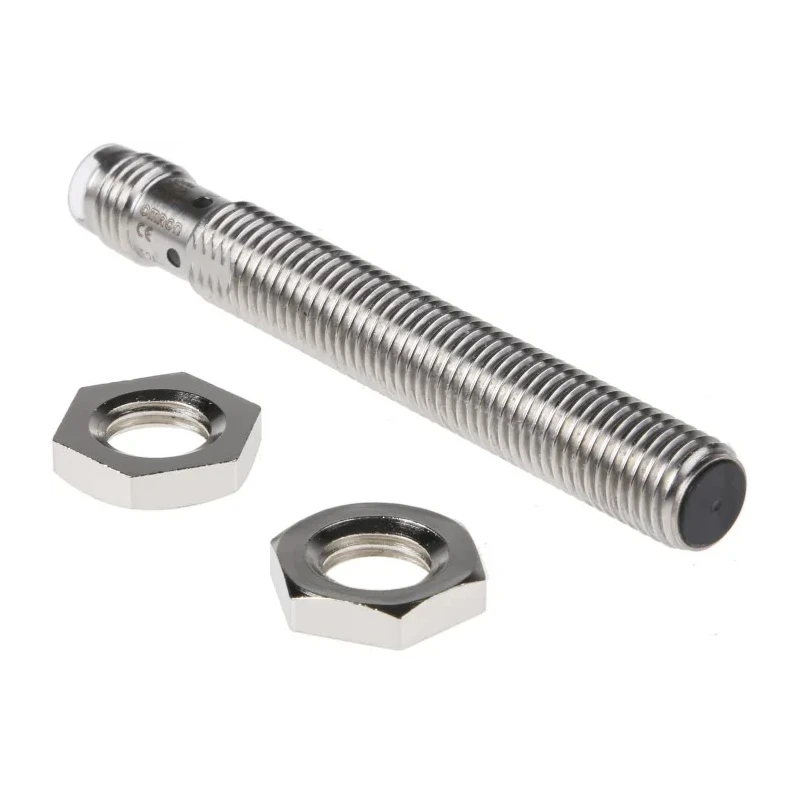

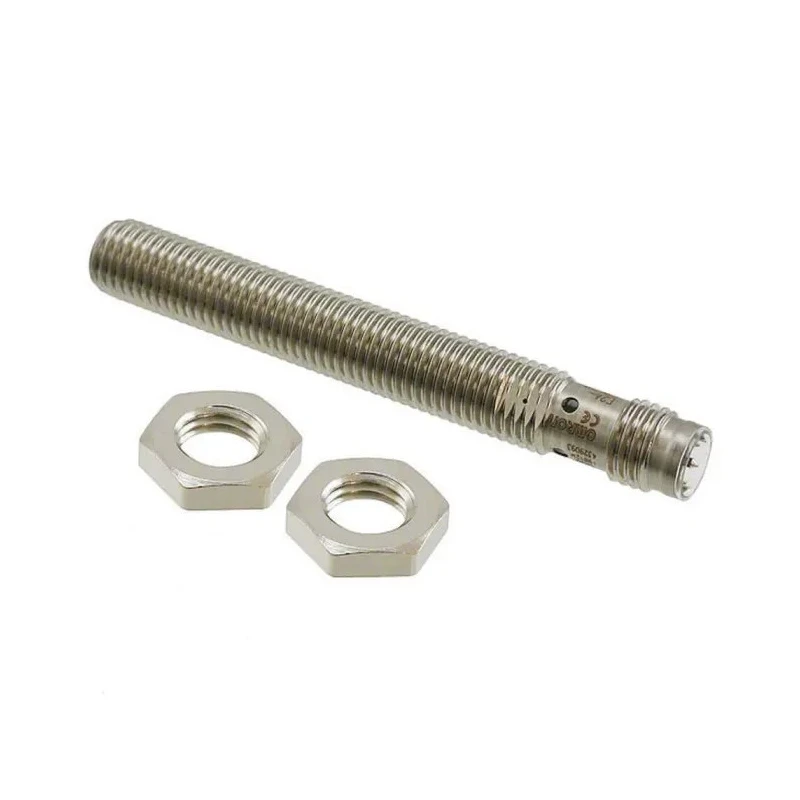

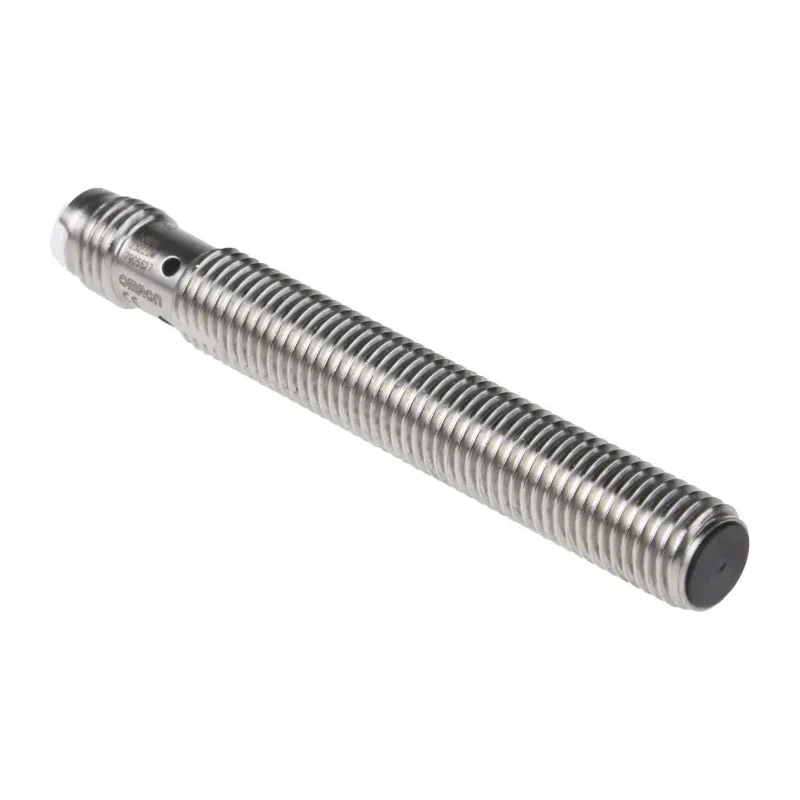

Omron Threaded Barrel Inductive Proximity Sensor M8, PNP Output, 24V DC, 20 mm Detection Range E2A-S08LS02-M5-B1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 49mm |
| Model | E2A-S08LS02-M5-B1 |
| IP Rating | IP67 |
| Width | 13mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | E2A |
| Maximum Operating Temperature | 70°C |
| Thread Size | M8 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 32V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.5kHz |
| Standards/Approvals | IP69k After DIN 40050, IP67 after IEC 60529, EMC after EN60947-5-2 |
| Maximum Supply Voltage | 24V dc |
| Materials Detected | Ferrous Metal |
| Maximum Detection | 20mm |
Key Features
- This sensor features a robust stainless steel housing for enhanced durability.
- It provides a sensing distance of up to 20 mm for precise applications.
- Designed for flush mounting with an M8 thread size for easy installation.
- Operates reliably within a temperature range of -40°C to 70°C.
- Rated IP67 for protection against dust and water ingress.
- Equipped with PNP output and supports a maximum switching current of 200 mA.
- Supports a maximum supply voltage of 24 V DC and maximum DC voltage of 32 V DC.
- Includes reverse polarity and short-circuit overload protection for safety.
Product Description
Omron E2A-S08LS02-M5-B1 is a high-quality Inductive Proximity Sensor featuring a threaded barrel design and robust stainless steel housing, suitable for industrial automation and control systems. Operating at 24 V DC with a maximum current capacity of 200 mA, it precisely detects the presence of ferrous metal objects within a 20 mm range.
The sensor is flush mountable with M8 thread size and dimensions of 49 mm length and 13 mm width, making it compact for diverse installations. It operates reliably in harsh environments, rated IP67 and IP69k according to IEC and DIN standards, safeguarding against dust and water.
Designed to withstand temperatures from -40°C to +70°C, this sensor ensures consistent performance across industrial, manufacturing, robotics, and conveyor applications. Its built-in shielding and protection features guard against reverse polarity and short circuit overload, enhancing reliability and safety.
The E2A series PNP output sensor supports switching frequencies of up to 1.5 kHz and is optimized for automation tasks such as object detection, collision avoidance, precise positioning in robotics, and safety monitoring on conveyor systems.
This sensor features a robust stainless steel housing for enhanced durability. It provides a sensing distance of up to 20 mm for precise applications. Designed for flush mounting with an M8 thread size for easy installation.
Operates reliably within a temperature range of -40°C to 70°C. Rated IP67 for protection against dust and water ingress. Equipped with PNP output and supports a maximum switching current of 200 mA. Supports a maximum supply voltage of 24 V DC and maximum DC voltage of 32 V DC.
Includes reverse polarity and short-circuit overload protection for safety. Ideal for object detection, collision prevention, robotics positioning, and conveyor safety monitoring.
The product is ideally suited for industrial, automation, manufacturing, and safety applications. Its rugged design and reliable performance make it suitable for controlling machinery, protecting processes, and enhancing safety compliance.
Explore the range of Omron sensors for advanced industrial automation solutions available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 20 mm for ferrous metal objects.
It operates reliably within a temperature range of -40°C to +70°C.
This unit features a PNP output type.
It supports a maximum switching current of 200 mA.
This sensor is rated IP67, providing protection against dust and water ingress.
The maximum supply voltage supported by this sensor is 24 V DC.
The sensor has a length of 49 mm and a width of 13 mm.
It is designed for flush mounting with an M8 thread size.
This model is specifically designed to detect ferrous metal materials.
The maximum DC voltage for this sensor is 32 V DC.
It complies with IP69k after DIN 40050, IP67 after IEC 60529, and EMC after EN60947-5-2 standards.
The maximum switching frequency for this sensor is 1.5 kHz.
