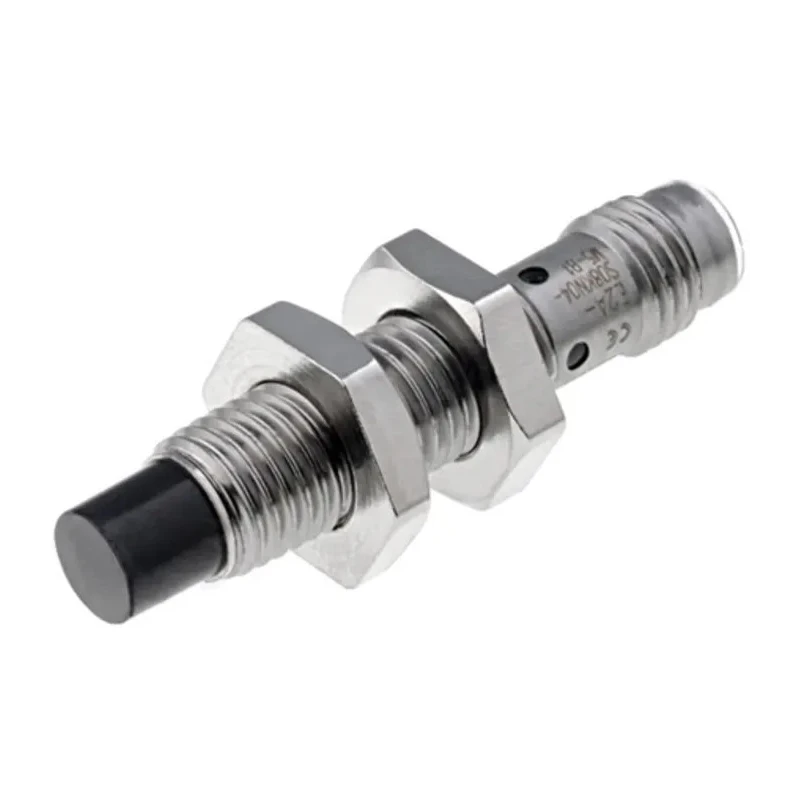

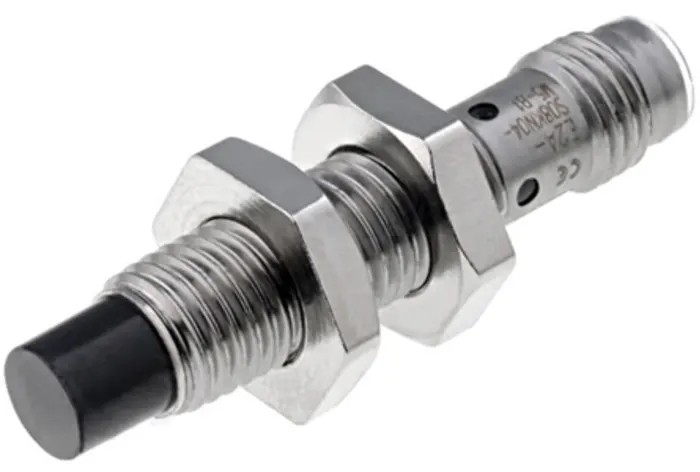

Omron Threaded Barrel Inductive Proximity Sensor M8 NPN 24V DC 4 mm Detection Range E2A-S08LN04-M1-C1

Omron E2A-S08LN04-M1-C1 is a high-performance threaded barrel inductive proximity sensor designed for precise detection of ferrous metal objects within a 4 mm range. The sensor features a compact M8 threaded body constructed from durable stainless steel, measuring 49 mm in length and 13 mm in width. Its non-flush mount style and M12 terminal connection enable straightforward installation in automated industrial environments.

This sensor operates on a maximum supply voltage of 24V DC and supports a maximum DC voltage of 32V with an AC voltage rating up to 1000V, making it suitable for diverse power conditions. It delivers reliable switching performance with a frequency of up to 1 kHz and a switching current capacity of 200 mA. The device is equipped with built-in short circuit and reverse polarity protections enhancing operational safety.

Rated IP67, the sensor is protected against dust ingress and water immersion, ensuring long-term durability in demanding environments. It performs reliably across a broad temperature range from -40°C to 70°C. The sensor is unshielded, specifically optimized for detecting ferrous metals in manufacturing, automation, HVAC, and other industrial applications.

The Omron E2A series sensors conform to EMC standards after EN60947-5-2, upgrading electromagnetic compatibility required for industrial use. These features make the E2A-S08LN04-M1-C1 ideal for precision sensing tasks requiring compact size and robustness.

Thread size M8 with 49 mm length and 13 mm width for compact installation. Operates at 24V DC supply voltage with maximum switching current of 200 mA. IP67 rated housing ensures dust-tight and water-resistant performance.

Non-flush mount type with M12 terminal connection provides easy integration. Operates in temperatures from -40°C to 70°C suitable for harsh environments. Unshielded sensor detects ferrous metals with 1 kHz switching frequency.

Equipped with short circuit and reverse polarity protection for operational safety. Compliance with EMC standard EN60947-5-2 confirms industrial-grade reliability.

Ideal for industrial automation and control systems, this sensor supports efficient and accurate object detection to optimize manufacturing and processing operations. Discover the full range of Inductive Proximity Sensors in our EnvironmentMart catalog for your automation and control needs.
