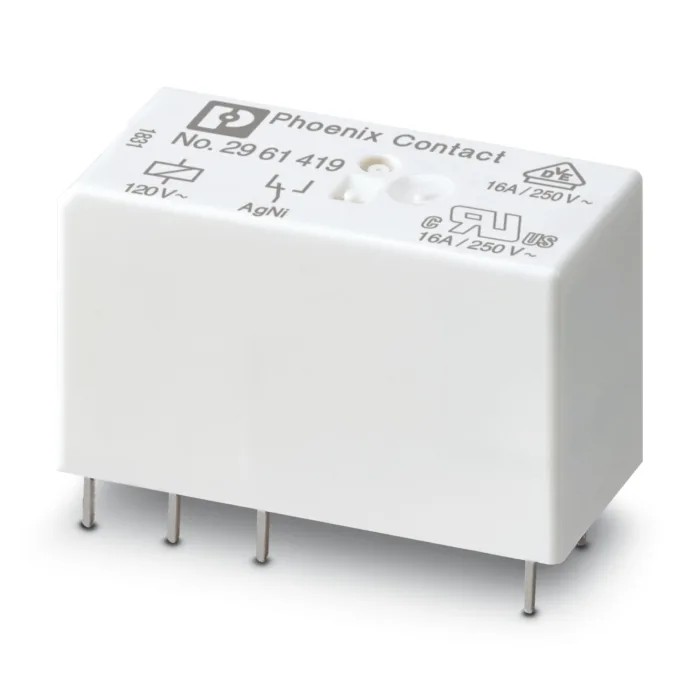

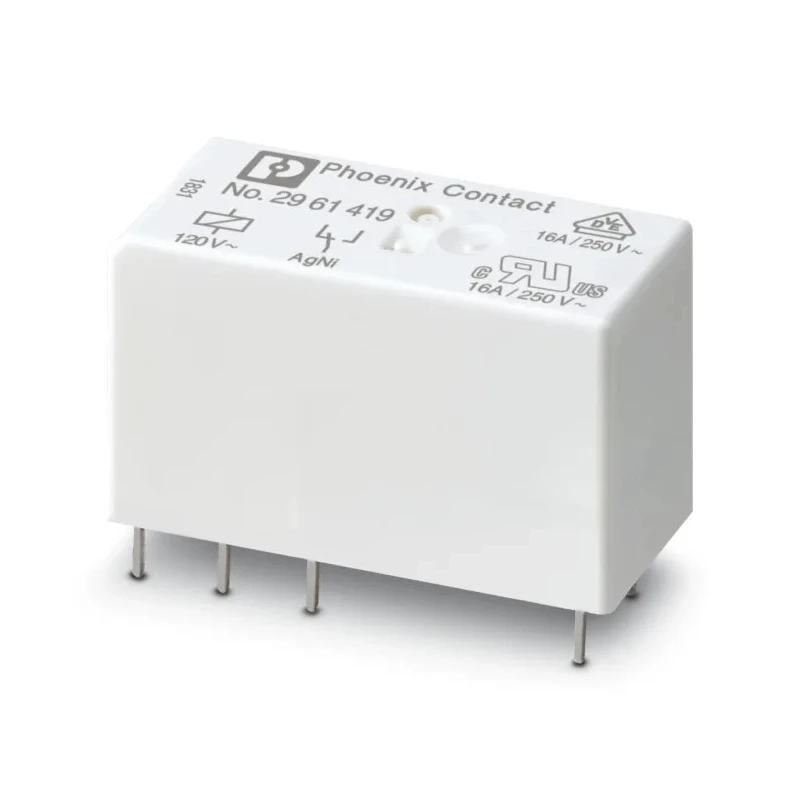

Phoenix Contact PCB Power Relay 120V AC Coil, 16A Switching Current, SPDT Model 2961419

Phoenix Contact model 2961419 is a high-quality PCB power relay designed for industrial and automation use, featuring a 120V AC coil voltage and a 16A switching current capability. This Single Pole Double Throw (SPDT) relay provides reliable switching performance for electrical circuits requiring robust power control.

The relay is of plug-in type and mounted on PCB, offering compact dimensions with height 29mm, width 15.7mm, and length 12.7mm, making it suitable for densely packed control panels and electronic assemblies. It supports contact switching voltages up to 250V AC and 250V DC, with coil resistance measured at 8.1kΩ ensuring consistent coil actuation.

Operating temperature ranges from a low of -40°C to a high of 85°C make this relay highly versatile for harsh environmental conditions. The silver alloy contact material enhances electrical conductivity and mechanical endurance, ensuring a long relay lifespan. The relay supports up to RT III protection, allowing it to withstand washing processes without flux residue leakage, making it suitable for applications requiring such robustness.

With multiple international standards and approvals including CSA, cUL, GOST, GL, VDE-PZI, and UL, this relay is built to meet stringent safety and performance regulations. Typical applications include switching between two power sources, selecting inputs, or routing circuits in industrial automation, electrical control systems, and signal conditioning equipment.

The relay is plug-in mounted on PCB for ease of installation. Coil voltage rating of 120V AC ensures compatibility with standard control voltages. The SPDT contact configuration allows for switching and selecting between two circuits.

Supports high switching currents of up to 16A for demanding power loads. Robust operating temperature range from -40°C to 85°C suits varied environmental conditions. Silver alloy contacts provide excellent conductivity and durability.

Compact form factor is ideal for space-constrained industrial setups. Certified against multiple safety and quality standards including UL and VDE-PZI.

This Phoenix Contact PCB Power Relay model 2961419 is ideal for electrical, automation, and industrial control applications requiring dependable power switching solutions. Look for more power relay options and components in the Electronics & Electricals category at EnvMart.
