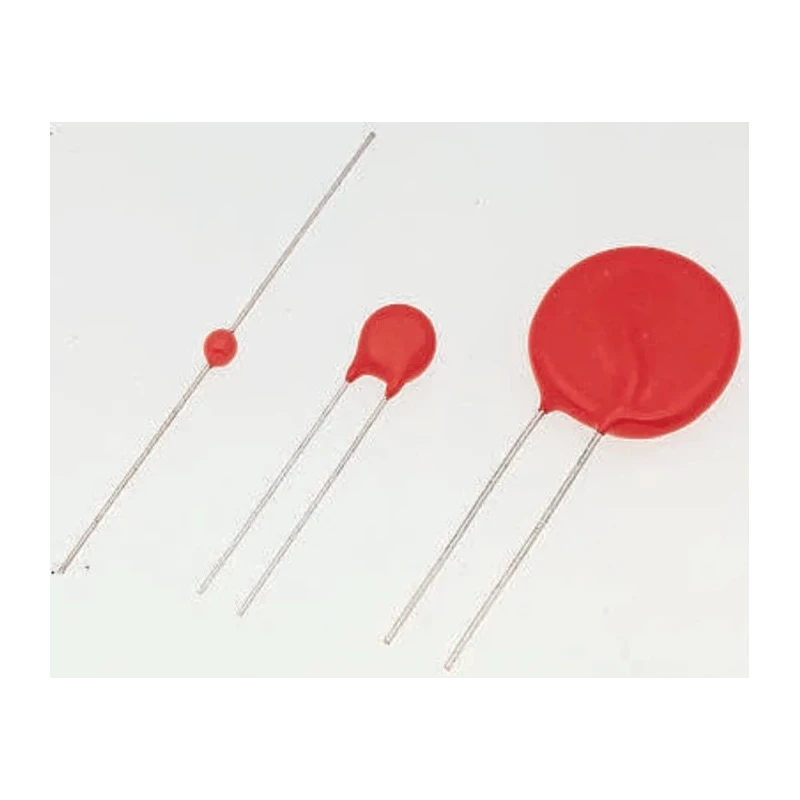

Littelfuse ZA Metal Oxide Varistor 1.035 nF 2.5 A Clamping 1240 V Radial Lead V56ZA2P

Littelfuse V56ZA2P Metal Oxide Varistor is designed to protect low and medium-voltage circuits from transient surges, offering a capacitance of 1.035 nF and a clamping current of 2.5 A with a clamping voltage rating of 1240 V. This radial lead varistor is part of the ZA series, known for compact, durable designs for a wide range of industrial and commercial electronic equipment.

The component features a varistor voltage of 56 V and supports a maximum AC voltage of 35 V ac and maximum DC voltage of 45 V dc. Its 9 mm diameter and 32 mm length, along with a thickness and depth of 5 mm each, make it compatible with standard PCB layouts. It withstands transient surge currents up to 250 A, ensuring robust protection against electrical surges.

Constructed with metal material, this varistor complies with several industry standards including Lead-Free, UL 1449, UL-94V-0, MIL-STD-202, Halogen-Free, and RoHS, ensuring reliability and environmental compliance. The device operates effectively from -55°C ambient temperature, suitable for industrial, telecommunications, automotive systems, motor control, solenoid and power supply circuits. The radial lead termination style with 6 mm lead pitch facilitates easy PCB mounting. It comes supplied in tape & reel packaging suitable for automated assembly.

This Metal Oxide Varistor protects circuits by clamping voltage spikes, enhancing system robustness. Its compact size and radial mounting provide easy integration on printed circuit boards. Robust energy rating of 52 J supports effective transient energy absorption.

Suitable for industrial, telecommunications, automotive, and power supply applications wherever transient voltage suppression is critical. Manufactured adhering to strict environmental and safety standards to ensure high reliability.
