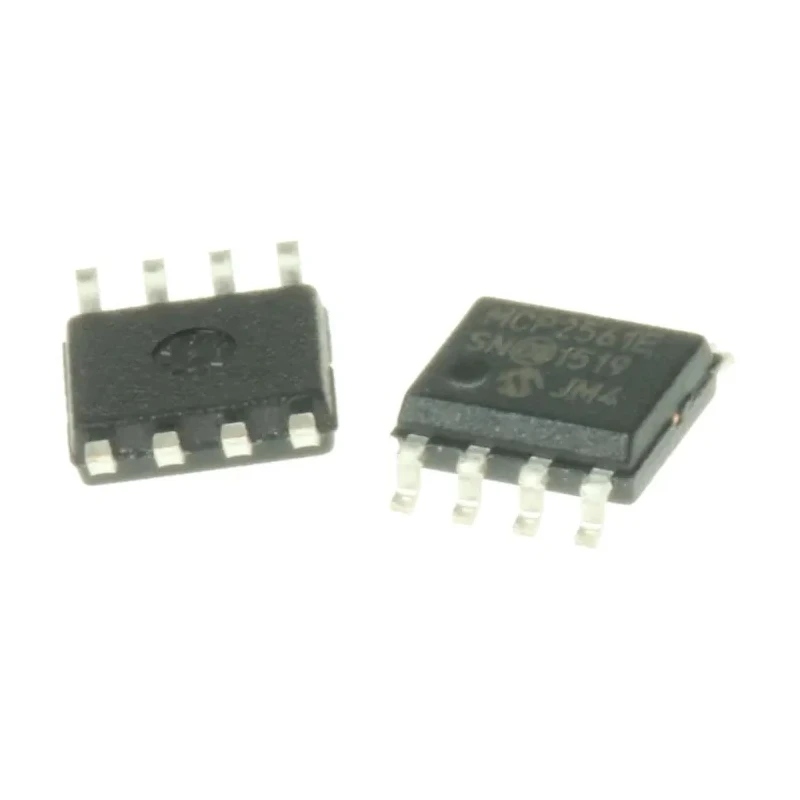

Microchip CAN Transceiver 8-Pin SOIC 1 Mbps 4.5-5.5V Surface Mount MCP2561-E/SN

Free Delivery in India | Lowest Global Shipping Charges

Microchip CAN Transceiver 8-Pin SOIC 1 Mbps 4.5-5.5V Surface Mount MCP2561-E/SN

Name: Microchip CAN Transceiver 8-Pin SOIC 1 Mbps 4.5-5.5V Surface Mount MCP2561-E/SN
Brand: Microchip
SKU: 372949
Price: 1.59 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.5mm
Length	4.9mm
Model	MCP2561-E/SN
Width	3.9mm
Mount Type	Surface
Series	MCP2561
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	CAN Transceiver
Minimum Operating Temperature	-40°C
Interface Type	IEC 61000-4-2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	70mA
Maximum Data Rate	1Mbps
Number of Transceivers	1
Microchip MCP2551-E/SN, CAN Transceiver 1 Mbps, 8-Pin SOICBrand	Microchip

Key Features

Operates from a supply voltage range of 4.5 to 5.5 volts.
Consumes a supply current of 70 mA during operation.
Offers standby power-down mode to reduce power consumption.
Supports electrostatic discharge (ESD) protection compliant with IEC 61000-4-2.
Designed to function across a broad temperature range from -40°C to 150°C.
Compact 8-pin SOIC package with dimensions 4.9 mm length, 3.9 mm width, and 1.5 mm height.
Meets RoHS compliance for environmental standards.
Suitable for CAN bus applications requiring robust and efficient data transmission.

Product Description

Microchip MCP2561-E/SN is a high-performance CAN transceiver designed for Controller Area Network (CAN) bus systems. Featuring an 8-pin Small Outline Integrated Circuit (SOIC) package, it operates at data rates up to 1 Mbps, making it well-suited for automotive, industrial, and other embedded communication applications requiring reliable data interchange.

This device supports a power supply range between 4.5 and 5.5 volts and consumes 70 mA of supply current, providing efficient performance during operation. It includes a power down standby mode to minimize power usage when the transceiver is inactive, enhancing system power management.

The MCP2561-E/SN offers robust electrostatic discharge (ESD) protection in accordance with the IEC 61000-4-2 standard, safeguarding electronic circuits against voltage spikes and static discharge events. It functions reliably over an extended operating temperature range from -40°C to 150°C, making it suitable for harsh environmental conditions.

Its compact dimensions (4.9 mm length x 3.9 mm width x 1.5 mm height) and surface mount package type facilitate easy integration into densely packed printed circuit boards (PCBs). Additionally, the device is RoHS compliant, meeting environmental regulations for hazardous substance restrictions.

Applications for the MCP2561-E/SN CAN transceiver include automotive communication systems, industrial automation, HVAC controllers, and other embedded systems implementing CAN bus protocols for data exchange and control.

Operates at maximum data rate of 1 Mbps. Low power consumption with 70 mA supply current. Power down standby mode for energy efficiency. Meets IEC 61000-4-2 ESD protection standards. Wide operating temperature range from -40°C to 150°C.

Compact 8-pin SOIC surface mount package. RoHS compliant for environmental safety. Designed for automotive and industrial CAN bus networks. Explore a wide range of CAN Interface ICs within EnvMart's Electronics & Electricals category for efficient industrial and automotive communication solutions.
