Microchip CAN Transceiver 1 Mbps, 8-Pin SOIC MCP2561-E/SN

Free Delivery in India | Lowest Global Shipping Charges

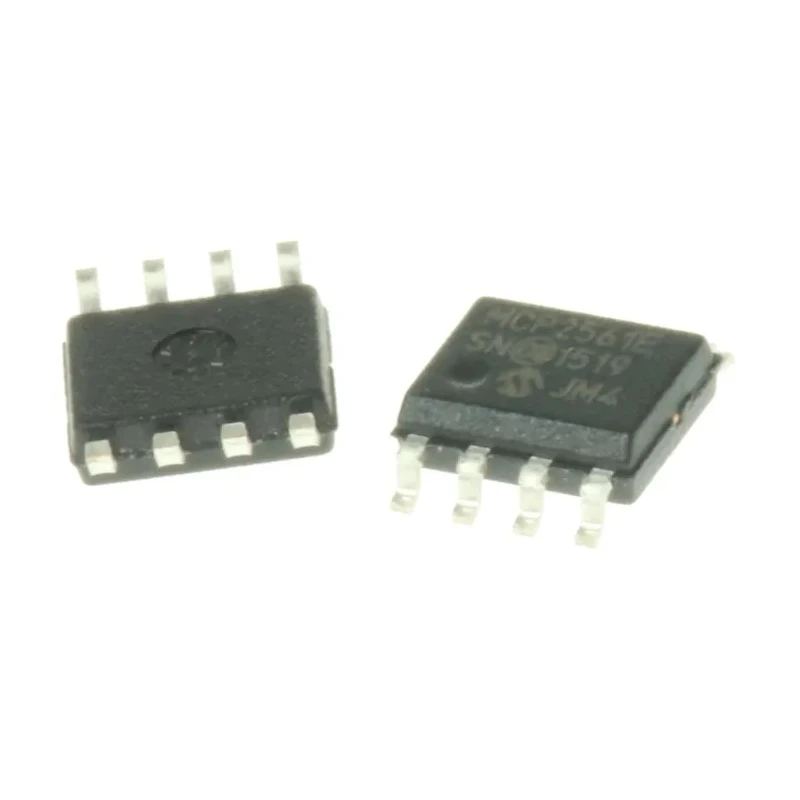

Microchip CAN Transceiver 1 Mbps, 8-Pin SOIC MCP2561-E/SN

Name: Microchip CAN Transceiver 1 Mbps, 8-Pin SOIC MCP2561-E/SN
Brand: Microchip
SKU: 372943
Price: 1.35 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.5mm
Length	4.9mm
Model	MCP2561-E/SN
Width	3.9mm
Mount Type	Surface
Series	MCP2561
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	CAN Transceiver
Minimum Operating Temperature	-40°C
Interface Type	IEC 61000-4-2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	70mA
Maximum Data Rate	1Mbps
Number of Transceivers	1
Microchip MCP2561FD-E/SN, CAN Transceiver 8 Mbps, 8-Pin SOICBrand	Microchip

Key Features

Supports a maximum data rate of 1 Mbps for fast CAN bus communication.
Single transceiver design with 8-pin SOIC package for surface mounting.
Operates efficiently with a supply current of 70 mA in standby mode.
Wide operating voltage range from 4.5 V to 5.5 V.
Temperature range from -40°C to 150°C ensures reliability in harsh environments.
Compliant with IEC 61000-4-2 for ESD protection, ensuring durability.
RoHS compliant, supporting environmental standards.
Surface mount technology package suitable for modern PCB designs.

Product Description

Microchip MCP2561-E/SN is a high-performance CAN transceiver designed for Controller Area Network (CAN) bus applications with a maximum data rate of 1 Mbps. It comes in a compact 8-pin SOIC surface-mount package, making it ideal for space-constrained designs requiring robust and reliable communication.

This transceiver supports a wide operational voltage range from 4.5 V to 5.5 V and is optimized for low power consumption with a standby supply current of 70 mA. It operates reliably in extreme temperature conditions ranging from -40°C to 150°C, making it suitable for automotive, industrial, and other harsh environment applications.

The MCP2561-E/SN is compliant with the IEC 61000-4-2 standard for electrostatic discharge (ESD) protection, ensuring longevity and durability in electrically noisy environments. Its compact size - 4.9 mm length, 3.9 mm width, and 1.5 mm height - supports dense PCB layouts and surface-mount assembly techniques.

As a RoHS-compliant device, the MCP2561-E/SN aligns with environmental directives, making it environmentally friendly. The transceiver is designed for seamless integration in CAN communication systems used in industrial automation, automotive networks, HVAC control systems, and other commercial electronic devices.

Supports a maximum data rate of 1 Mbps for fast CAN bus communication. Single transceiver design with 8-pin SOIC package for surface mounting. Operates efficiently with a supply current of 70 mA in standby mode. Wide operating voltage range from 4.5 V to 5.5 V.

Temperature range from -40°C to 150°C ensures reliability in harsh environments. Compliant with IEC 61000-4-2 for ESD protection, ensuring durability. Compact dimensions: length 4.9 mm, width 3.9 mm, and height 1.5 mm. RoHS compliant, supporting environmental standards.

Surface mount technology package suitable for modern PCB designs.

This product belongs to the Semiconductor category and is an essential component for embedded system designers, automotive engineers, and electronic system developers requiring reliable CAN bus communication hardware.
