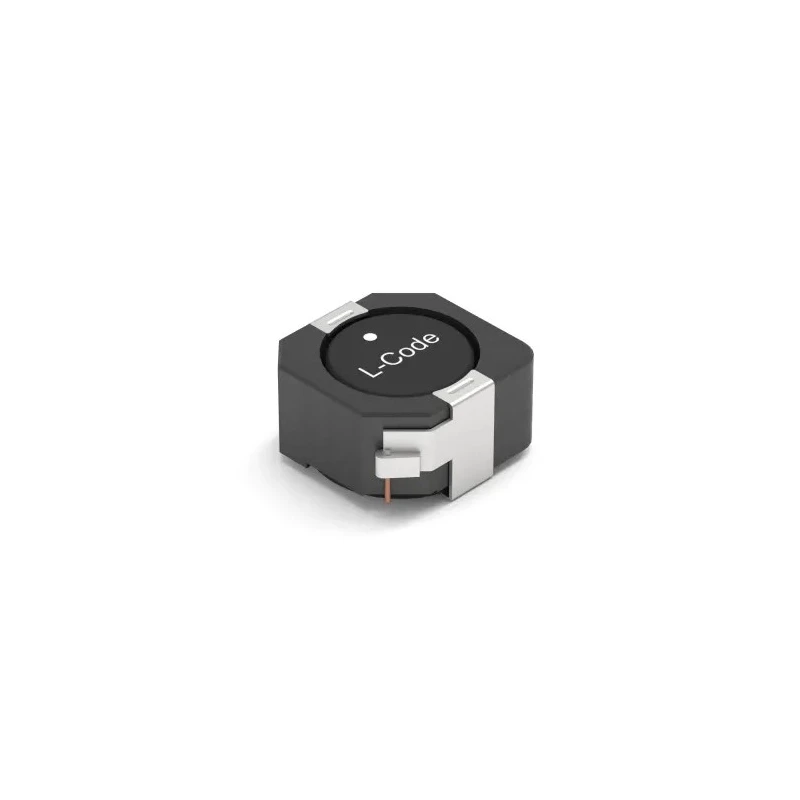

Wurth Elektronik WE-PD 7332 Shielded Wirewound Surface Mount Inductor 180μH ±20% 490mA 1.45Ω 7.3 x 3.2 x 7.3mm 7447789218

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD 7332 Shielded Wirewound Surface Mount Inductor 180μH ±20% 490mA 1.45Ω 7.3 x 3.2 x 7.3mm 7447789218

Name: Wurth Elektronik WE-PD 7332 Shielded Wirewound Surface Mount Inductor 180μH ±20% 490mA 1.45Ω 7.3 x 3.2 x 7.3mm 7447789218
Brand: Wurth Elektronik
SKU: 372803
Price: 2.41 USD
Availability: InStock



Category Power Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	3.2mm
Length	7.3mm
Depth	7.3mm
Packaging	Tape & Reel
Series	WE-PD
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Inductance	180μH
Standards/Approvals	IEC 62024-2-2020, JEDEC JS709B, RoHS, REACH
Package/Case	7332
Maximum DC Current	490mA
Maximum DC Resistance	1.45Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	6MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

This inductor features a 7332 package size with tape & reel packaging for easy mounting.
Operating temperature ranges from -40°C to 125°C ensuring high reliability.
It has a maximum DC resistance of 1.45Ω for efficient current flow.
Magnetically shielded wirewound construction minimizes leakage fields.
Maximum self-resonant frequency is 6MHz suitable for high-frequency applications.
Compliance with IEC 62024-2-2020, JEDEC JS709B, RoHS and REACH standards guarantees quality.
Ideal for switching regulators, integrated DC-DC converters, and graphic card circuits.

Product Description

Wurth Elektronik 7447789218 WE-PD Series Shielded Wirewound Surface Mount Inductor with an inductance of 180μH, ±20% tolerance, and maximum DC current rating of 490mA. Designed for high performance in power electronics, it features magnetic shielding to reduce interference and a wirewound construction to maintain high storage capacity.

It is supplied in a 7332 package size with tape & reel packaging suited for automated assembly lines. The device operates reliably within a temperature range from -40°C to 125°C and has a maximum DC resistance of 1.45Ω.

With a maximum self-resonant frequency of 6MHz, this inductor supports high-frequency switching regulator applications, integrated DC-DC converters, and high-efficiency (>86%) power circuits such as those found in graphic cards.

The inductor meets stringent standards including IEC 62024-2-2020, JEDEC JS709B, RoHS, and REACH, ensuring suitability for automotive and industrial environments. This inductor features a 7332 package size with tape & reel packaging for efficient PCB mounting.

Operating temperature ranges from -40°C to 125°C ensuring robust performance in harsh environments. It has a maximum DC resistance of 1.45Ω to reduce power losses. Magnetically shielded wirewound construction provides low leakage magnetic fields, ideal for sensitive electronic designs.

Maximum self-resonant frequency of 6MHz enables compatibility with high-frequency power conversion circuits. Certified to meet IEC 62024-2-2020 and JEDEC JS709B standards supporting automotive and industrial qualifications.

Applications include switching regulators, integrated DC-DC converters, and graphic cards with high efficiency demands. Manufactured in China, this new product is part of the respected WE-PD series from Wurth Elektronik, well-known for quality and innovation in electronic passive components.

Explore Wurth Elektronik inductors and other surface mount components at EnvMart for reliable industrial, electronics, and automotive applications.
