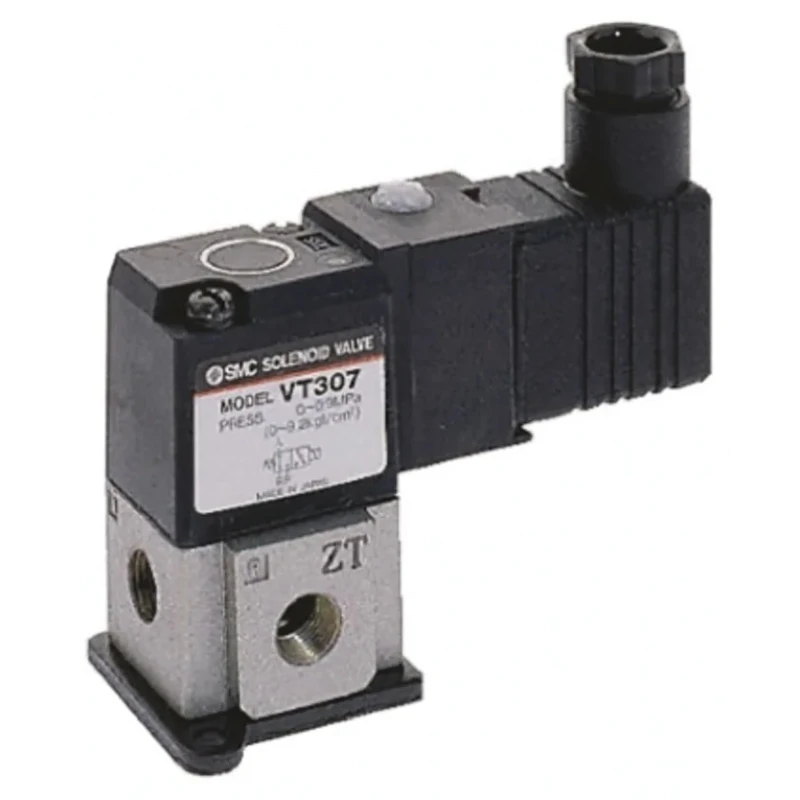

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Manifold Mount 110V AC Die Cast Aluminium VT307-3DZ1-01F-Q

SMC VT307-3DZ1-01F-Q Pneumatic Solenoid Valve 3/2 NC Solenoid 1/8 G Port 110V AC is a direct-acting valve designed for efficient pneumatic control and energy saving in industrial applications. The valve body is made from durable die cast aluminium and incorporates hydrogenated nitrile rubber seals for excellent sealing performance.

This manifold-mounted valve offers a maximum operating pressure of 0.7 MPa and maximum flow rate of 187 L/min, making it suitable for diverse uses including blow-off valves, pressure release valves, single and double acting cylinder drives, divider valves, and selector valves.

The valve supports multiple functions such as normally open (N/O), normally closed (N/C), divider, and selector types. It can be easily switched from normally closed to normally open by inverting the function plate. Manual override is of the non-locking push type for easy intervention.

Electrical connection is provided via a DIN connector with IP65 protection for dust and moisture resistance, ensuring durability in harsh industrial environments. Operating temperatures range from -10°C to 50°C and the valve supports pilot pressures from 0 to 1 MPa.

Compliant with RoHS and CE standards, this valve meets international requirements for hazardous area safety and environmental considerations. Compact dimensions with a height of 84 mm, length of 77.6 mm, and width of 25.6 mm enable integration into limited space installations.

Direct-acting solenoid valve with energy-saving and vacuum versions. Die cast aluminium body and hydrogenated nitrile rubber seals. Manifold mount and universal porting type with DIN 43650 connector. Non-locking push type manual override for operational control.

Functions include N/O, N/C, Divider valve, Selector valve and easy conversion between N/C and N/O. Operating range: -10°C to 50°C, max pressure 0.7 MPa, max flow 187 L/min. Complies with RoHS and CE standards.

This valve is ideal for a wide range of industrial pneumatic applications including manufacturing automation, fluid power control, HVAC systems, and laboratory instrumentation. Explore more pneumatic solutions in EnvMart's Pneumatic Solenoid Valve category for reliable and innovative fluid control technology.
