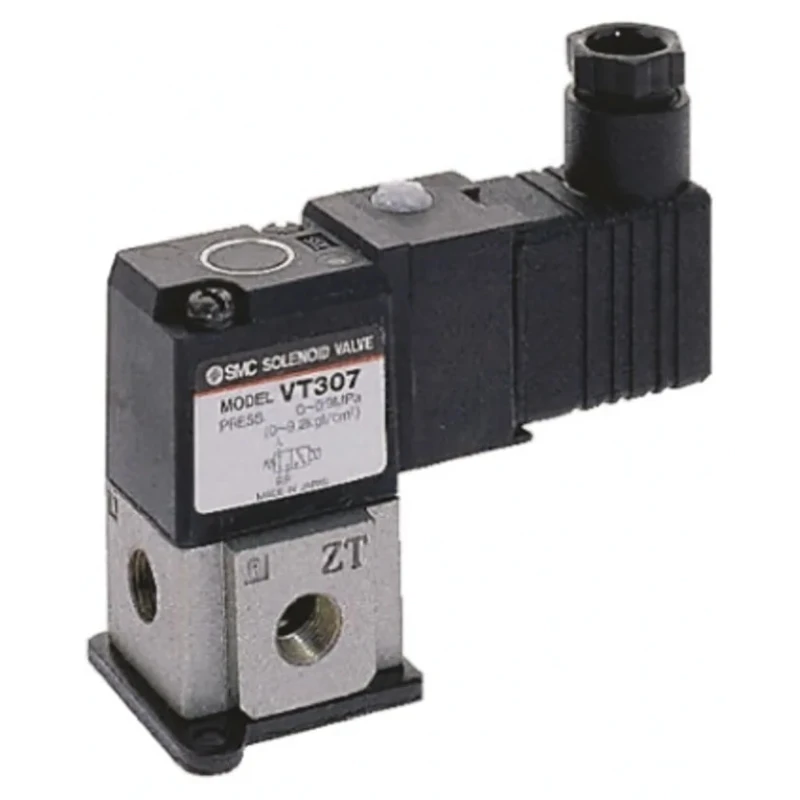

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G VT Series 24V dc Die Cast Aluminium VT307V-5DZ1-02F-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G VT Series 24V dc Die Cast Aluminium VT307V-5DZ1-02F-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	84mm
Length	77.6mm
Model	VT307V-5DZ1-02F-Q
Width	25.6mm
Mount Type	Manifold
Series	VT
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/4 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	187L/min
Standards/Approvals	CE, RoHS
Connection Thread Standard	G
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	1MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.2W
SMC 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT307 Series 24V dcBrand	SMC
Various functions	N/O, N/C, Divider valve, Selector valve

Key Features

Operates at 24V DC with a solenoid power consumption of 4.2W.
Features threaded G connection ports sized 1/4 inch with female port gender.
Supports a maximum operating pressure of 0.7 MPa and pilot pressure from 0 to 1 MPa.
Designed to handle a maximum flow rate of 187 L/min.
Suitable for operating temperatures ranging from -10°C to 50°C.
Includes a 3/2 NC valve function with three ports and three positions.
Constructed with a hydrogenated nitrile rubber seal for durability.
Equipped with a DIN connector and DIN mount pattern for secure electrical connection.

Product Description

SMC VT307V-5DZ1-02F-Q Pneumatic Solenoid Valve 3/2 NC Solenoid G VT Series 24V dc offers high reliability and efficient pneumatic control in a compact manifold mount configuration. The valve features a durable die cast aluminium body and hydrogenated nitrile rubber seals, ensuring excellent resistance to wear and environmental conditions.

Operating at 24V DC and consuming just 4.2W, the solenoid is energy efficient. This valve has three ports with threaded G-type connections sized at 1/4 inch and female port gender, allowing for versatile integration in pneumatic systems. Its 3/2 NC valve function supports precise control of air flow with three positions for operation.

Engineered for industrial applications, it supports maximum pressures up to 0.7 MPa and a pilot pressure range from 0 to 1 MPa, while delivering a high flow rate of 187 L/min. The valve works reliably within the temperature range of -10°C to 50°C and is equipped with a DIN electrical connector and mount, facilitating seamless installation and maintenance.

This SMC series valve complies with CE and RoHS standards ensuring quality and safety. It is suitable for pneumatic applications such as blow-off valves, pressure release valves, single and double acting cylinder drives, divider valves, and selector valves. The design supports multiple mounting orientations with a dust-proof enclosure for robust industrial use.

With a compact form factor, measuring 84 mm in height, 77.6 mm in length, and 25.6 mm in width, this valve fits well in confined installations without compromising performance. The VT307 series is an updated model offering reduced power consumption and voltage surge suppression.

Operates at 24V DC with low power consumption. Manifold mount type with threaded G 1/4” connections. Handles maximum operating pressure of 0.7 MPa. Compact dimensions ideal for space-constrained environments. Complies with CE and RoHS standards.

Suitable for diverse pneumatic control applications in industrial, manufacturing, and automation sectors. Durable die cast aluminium body with nitrile rubber seals. Supports three port and three position operation with manual override options.
