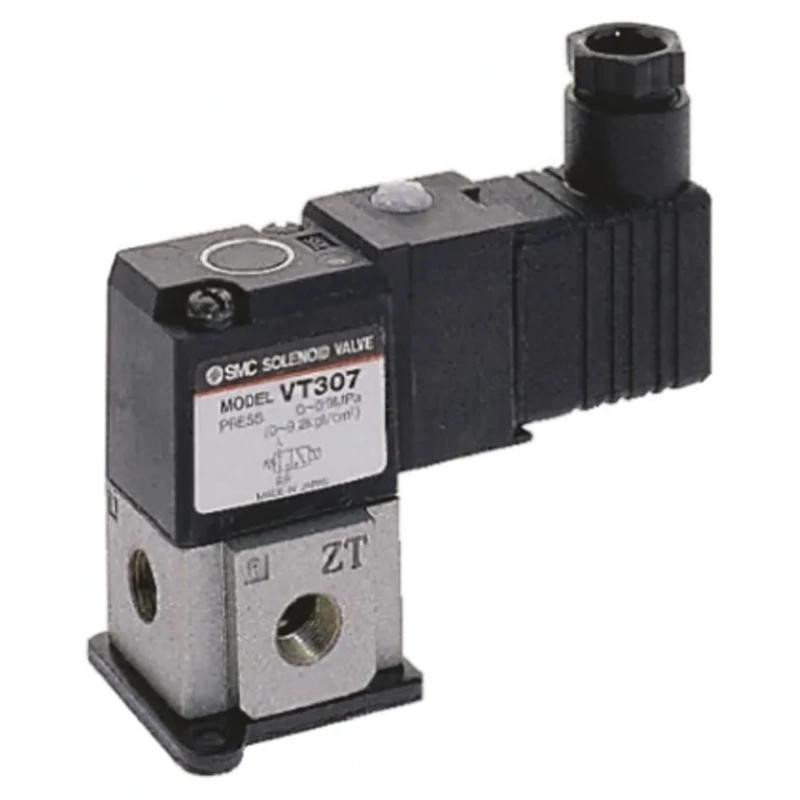

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Port, 110V AC, Die Cast Aluminium VT307-3D1-01F-Q

SMC VT307-3D1-01F-Q is a high-quality 3/2 NC pneumatic solenoid valve designed for efficient pneumatic control in industrial applications. It operates at 110V AC with a durable die cast aluminium body and manifold mount type configuration.

This direct-acting solenoid valve from the VT series offers reduced power consumption and features a single solenoid actuator with three ports and three switching positions. The valve supports a maximum operating pressure of 0.7 MPa and pilot pressure range from 0 to 1 MPa, making it suitable for diverse pneumatic systems requiring reliable pressure control.

The valve is fitted with hydrogenated nitrile rubber seals that provide excellent durability and sealing efficiency. Its compact physical dimensions - length 77.6 mm, height 84 mm, width 25.6 mm - enable installation in limited spaces. The electrical connection uses a DIN connector with IP65-rated dust-proof enclosure, allowing for stable operation in dusty or industrial environments.

Functional versatility includes normally open (N/O), normally closed (N/C), divider valve, and selector valve options. It can be mounted in any orientation without restriction, enhancing installation flexibility. The valve is CE and RoHS certified, ensuring compliance with safety and environmental standards.

Ideal for use in pneumatic automation, manufacturing, fluid power, HVAC controls, and testing laboratories, this valve ensures precise and reliable flow control. The VT307 series is engineered in Japan, reflecting top-tier manufacturing standards.

This valve features a single solenoid actuation type with 3 ports and 3 positions. Capable of handling a maximum operating pressure of 0.7 MPa and pilot pressure up to 1 MPa. Equipped with hydrogenated nitrile rubber seals for reliable sealing performance.

Supports multiple valve functions including N/O, N/C, divider valve, and selector valve. Compact dimensions: length 77.6mm, height 84mm, and width 25.6mm for space-efficient applications. Electrical connection via DIN connector with IP65 protection ensuring dust-proof enclosure.

Operates within a temperature range of -10°C to 50°C suitable for varying industrial environments. Meets CE and RoHS standards, compliant with international quality and environmental norms. Explore the Pneumatic Solenoid Valve category at EnvMart for comprehensive industrial valve solutions designed to optimize pneumatic control systems.
