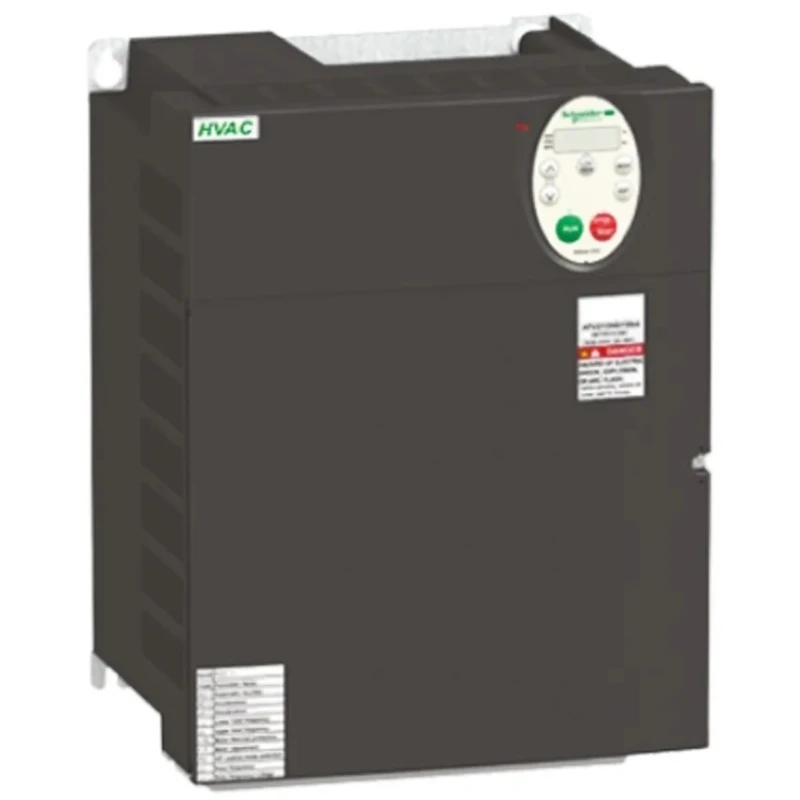

Schneider Electric Inverter Drive ATV212HD15N4, 15 kW, 3 Phase, 400 V AC, 30.5 A, Variable Speed Drive
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV212HD15N4 |
| IP Rating | IP41, IP21, IP20 |
| Drive Type | Variable Speed |
| Mount Type | EMC Mount |
| Overall Length | 245mm |
| Series | ATV 212 |
| Overall Width | 190mm |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 200Hz |
| Minimum Operating Temperature | +40°C |
| Number of Phases | 3 |
| Maximum Output Current | 30.5A |
| Standards/Approvals | REACH, CSA, EN, UL, CE, C-Tick, RoHS, IEC |
| Overall Depth | 329.5mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Supports asynchronous motors with variable speed drive technology.
- IP21 protection rating with built-in EMC filter for reliable operation.
- Operates within temperature range +40°C to 50°C with 0.5 to 200 Hz output frequency.
- Complies with IEC/EN standards and certifications including REACH, CSA, EN, UL, CE, C-Tick, and RoHS.
- Energy-efficient design reduces consumption up to 70% compared to conventional systems.
- Ideal for HVAC and fluid management applications in commercial buildings.
- Optional motor chokes available to increase cable lengths and minimize disturbances.
- Mountable vertically with 4 fixing holes, allowing easy installation in control panels.
Product Description
Schneider Electric ATV212HD15N4 inverter drive is a high-performance variable speed drive designed for 3-phase asynchronous motors. Rated at 15 kW (20 hp) with a supply voltage range of 380 V to 480 V AC, this product supports an output current up to 30.5 A and frequency control between 0.5 and 200 Hz.
This inverter drive features a compact form factor with dimensions measuring 245 mm in length, 190 mm in width, and 329.5 mm in depth. Weighing approximately 11.65 kg, the drive incorporates a built-in EMC filter and an IP21 protection rating to provide operational reliability and immunity from electromagnetic disturbances.
Designed with eco-energy principles, the Altivar 212 dramatically reduces energy consumption by up to 70% compared to traditional control systems. Its advanced cable temperature rise reduction technology avoids the need for additional harmonic attenuation equipment, such as line chokes or DC chokes.
Ideal for HVAC systems and fluid management in tertiary sector buildings, this drive is compliant with international IEC/EN 61800-5-1 and 61800-3 standards for safety, immunity, and EMC emissions. Certifications include CE, UL, CSA, C-Tick, and NOM, ensuring global regulatory compliance.
Installation is user-friendly, allowing vertical mounting (+/- 10°) with four fixing holes. The drive supports multiple communication protocols such as Modbus, METASYS N2, APOGEE FLN P1, and BACnet, enabling easy integration with building management systems.
Supports asynchronous motors with variable speed drive technology. Built-in EMC filter enhances electromagnetic compatibility. Compact installation dimensions for panel mounting. Energy efficiency reduces consumption significantly.
Wide operating temperature range ensures reliable use. Compliance with international standards and certifications. Optional motor chokes for extended cable length and disturbance mitigation. Designed for HVAC and fluid management industrial applications.
Browse EnvMart's extensive range of Inverter Drives and automation controls for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV212HD15N4 inverter drive has a power rating of 15 kW (20 hp).
This model supports a maximum output current of 30.5 A.
The output frequency range of this inverter drive is from 0.5 to 200 Hz.
It is compatible with asynchronous motors, utilizing variable speed drive technology.
The dimensions of this inverter drive are 245 mm in length, 190 mm in width, and 329.5 mm in depth.
The ATV212HD15N4 has an IP21 protection rating, which provides limited protection against dust and water.
This model operates within a temperature range of +40°C to 50°C.
It complies with several standards including REACH, CSA, EN, UL, CE, C-Tick, RoHS, and IEC.
This inverter drive can be mounted vertically with four fixing holes, allowing for easy installation in control panels.
It is designed to reduce energy consumption by up to 70% compared to conventional systems.
The ATV212HD15N4 supports multiple communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.
Optional motor chokes are available to increase cable lengths and minimize disturbances.
