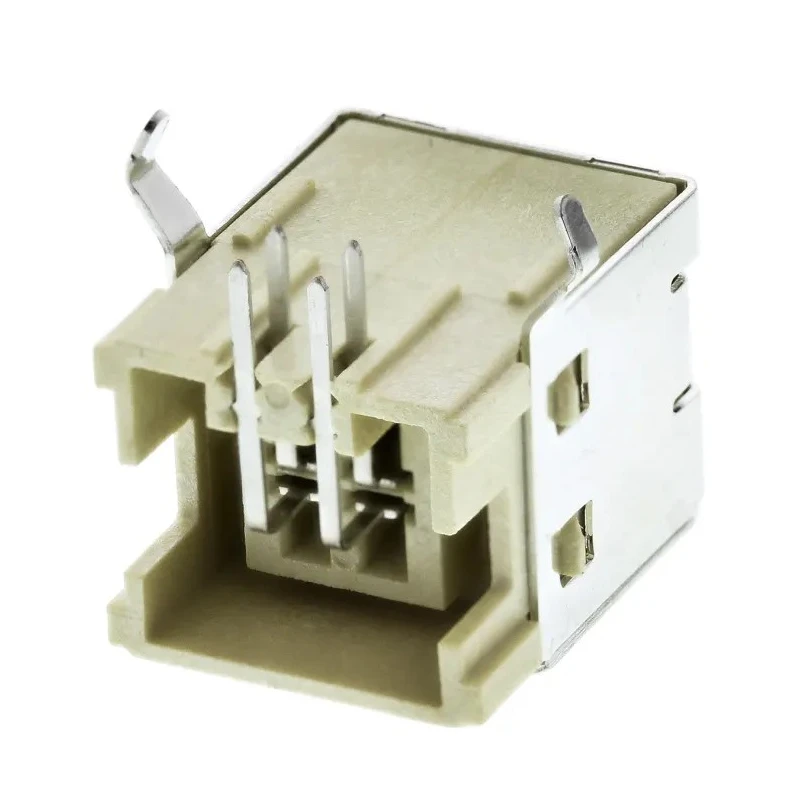

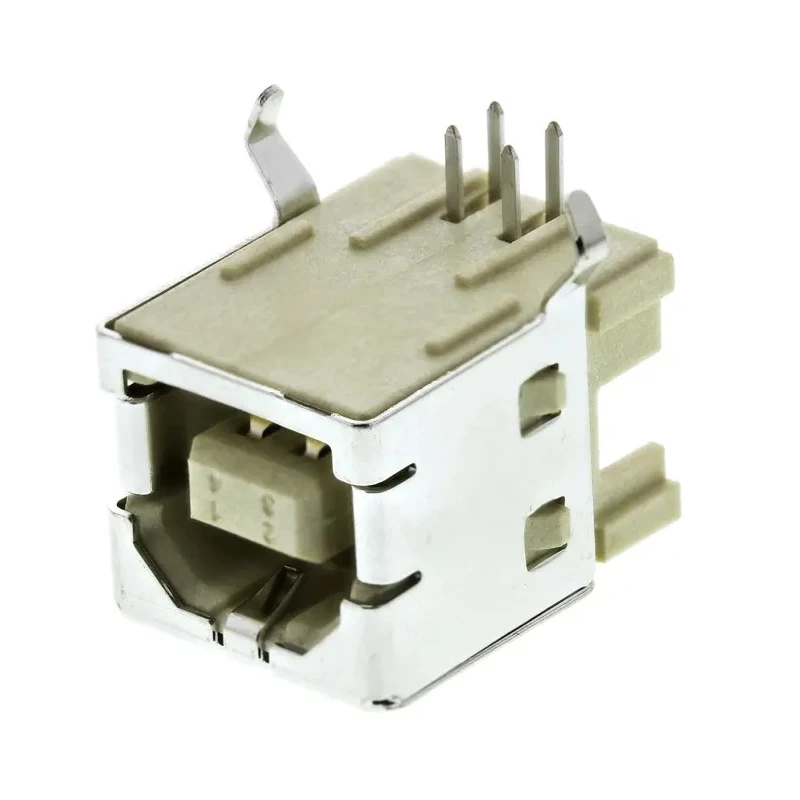

TE Connectivity Right Angle PCB Female 1 Port USB Type B USB Connector USB 2.0 292304-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 292304-2 |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | 2923 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Right angle orientation for PCB mounting enhances design flexibility.
- Supports USB 2.0 specification for data transfer speeds up to 60 MB/s.
- Rated for 1A current and 30V voltage, suitable for diverse electronic devices.
- Constructed with copper alloy contacts and a strong nickel outer housing for durability.
- Operating temperature range from -55°C to 85°C ensures performance in varied environments.
- Polarized design guarantees proper orientation and plug and play compatibility.
- Single female port type USB Type B connector ideal for laptops, desktops, GPS devices, and digital audio equipment.
- Solder termination type ensures secure and stable mounting on PCBs.
Product Description
TE Connectivity 292304-2 is a right angle PCB female USB Type B connector designed for USB 2.0 applications, delivering data transfer speeds up to 60 MB/s. It is engineered for robust and reliable connections in electronic assemblies requiring compact and secure interfaces.
This USB connector features a strong nickel-plated outside housing with copper alloy contacts, ensuring excellent conductivity and mechanical durability. Its polarized design facilitates correct plug orientation and easy hot-plug capabilities.
The connector supports a current rating of 1 ampere at 30 volts, suitable for standard USB power and signal transmission. With a solder termination type, the connector provides a secure and stable mounting to printed circuit boards, enhancing the integrity of electronic circuits.
Operating efficiently in harsh environments, it withstands temperatures from -55°C to 85°C. These specifications make it ideal for use in laptops, desktops, GPS devices, digital audio systems, modems, keyboards, mice, joysticks, and smartphones.
Right angle orientation for PCB mounting enhances design flexibility. Compatible with USB 2.0 for high speed data transfer up to 60 MB/s. Durable copper alloy contacts with nickel outer housing provide reliable performance.
Polarized for proper orientation ensuring seamless plug and play. Operates across a temperature range of -55°C to 85°C. Rated for 1A current at 30V suitable for various applications. Solder termination for secure PCB connection.
Single port female USB Type B connector for versatile electronic device integration. Manufactured in China under series 2923 standards.
This connector is widely used in industrial, commercial, and consumer electronics applications where reliable USB connectivity is essential. It supports various data transfer modes including asynchronous and isochronous transfers, making it suitable for audio, data, and control signals.
Explore EnvMart's extensive USB Connector category for more TE Connectivity products and technical solutions tailored to your electronic connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB Type B connector supports data transfer speeds up to 60 MB/s, adhering to the USB 2.0 specification.
It is rated for a current of 1A and a voltage of 30V, making it suitable for various electronic applications.
The connector operates efficiently within a temperature range of -55°C to 85°C, ensuring performance in diverse environments.
It features a solder termination type, which provides a secure and stable mounting on printed circuit boards (PCBs).
This model has a right angle orientation, which enhances design flexibility for PCB mounting.
It is constructed with copper alloy contacts and a nickel-plated outer housing, ensuring good conductivity and mechanical durability.
This model features a single female port, designed specifically for USB Type B connections.
It is suitable for use in laptops, desktops, GPS devices, digital audio systems, modems, keyboards, mice, joysticks, and smartphones.
Yes, it is compatible with USB 2.0 devices, supporting various data transfer modes including asynchronous and isochronous transfers.
This connector is manufactured in China under the series 2923 standards.
The connector gender is female, designed for receiving USB Type B plugs.
This USB connector belongs to the 2923 series, which includes various USB connectivity solutions.
