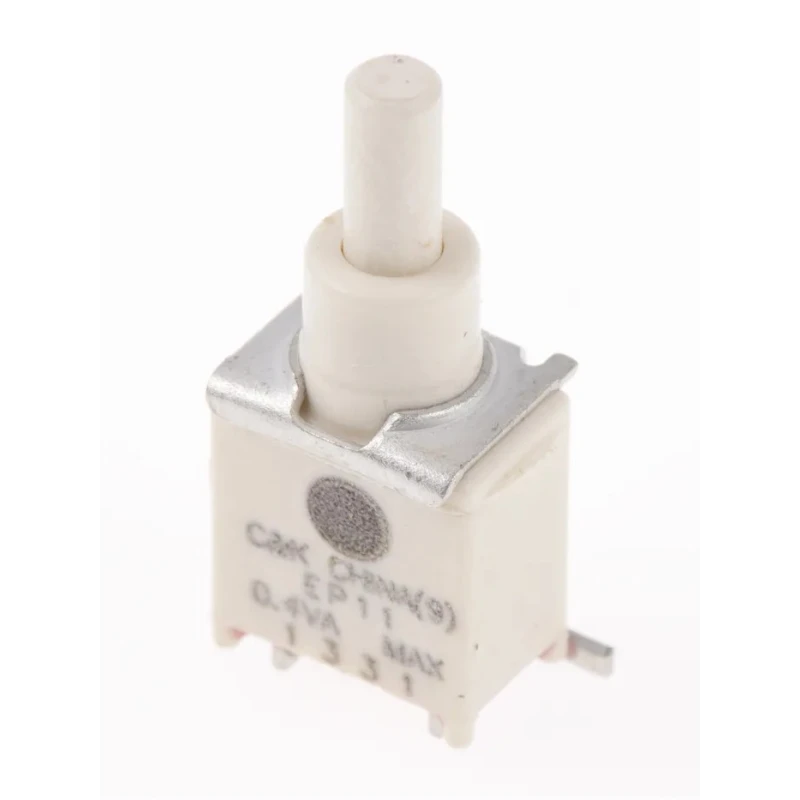

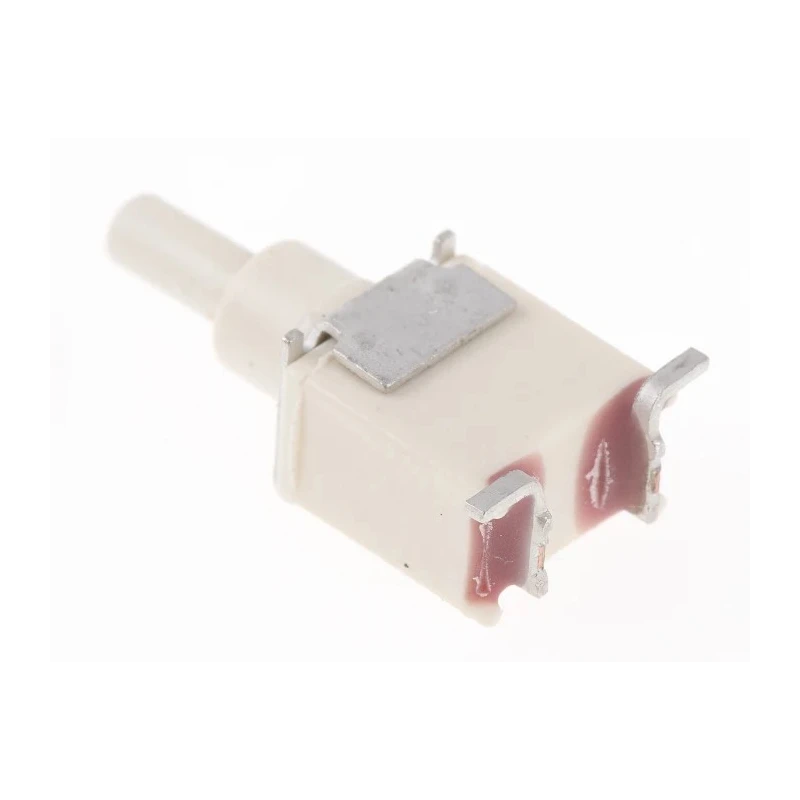

C & K EP Series Miniature Momentary Push Button Switch PCB Mount 13 mm Cutout SPST IP57 EP11SD1SAPE

C & K EP11SD1SAPE is a miniature push button switch from the EP series designed for momentary operation on printed circuit boards (PCB). Featuring a plunger actuator, this switch requires a 13 mm panel cutout and has a single pole single throw (SPST) contact configuration, making it suitable for simple on/off control tasks in electronic and electrical applications.

Engineered with a glass filled Nylon 6/6 case material certified to UL 94 V-0 flammability standard, the switch offers reliable and safe operation even under challenging industrial conditions. Gold plated contacts ensure low contact resistance and durability, suitable for frequent switching operations.

The device is rated to handle a maximum switch contact current of 400 milliamps, making it ideal for low current control circuits. Its waterproof IP57 rating permits use in environments where dust ingress and temporary water immersion may occur, enhancing the switch’s robustness and longevity.

Operating temperatures range from -30°C to 85°C, allowing performance stability in both cold and warm environments. The switch is approved under CSA, UR, and RoHS standards, underscoring compliance with quality and environmental requirements.

This push button switch is specifically designed for PCB mounting using solder tag terminals, facilitating easy integration during wave soldering or automated PCB assembly processes. Its compact miniature footprint with 13 mm panel cutout makes it ideal for use in dense control panels and electronic enclosures.

Typical applications include industrial automation control panels, measurement equipment, communication devices, and consumer electronics demanding reliable momentary switching. This switch is well-suited for manufacturers, designers, and engineers requiring high-quality sub-miniature momentary switches with environmental protection.

The switch operates in a momentary manner with plunger actuator style suitable for industrial automation. It features a single pole single throw (SPST) contact configuration for simple on/off switching. Designed with durable glass filled Nylon 6/6 case material rated UL 94 V-0 for safe electrical applications.

Rated for a switch contact current of 400mA and withstands immersion washing and wave soldering during PCB assembly. Offers wide operating temperature range from -30°C up to 85°C for harsh environments. Gold contacts ensure reliable electrical conductivity and longevity under frequent actuation.

The switch complies with CSA, UR, and RoHS standards ensuring safety and environmental conformity. Terminal type uses solder tags for secure PCB mounting and electrical connection. Compact sub-miniature size with a panel cutout requirement of 13 mm ideal for tight spaces in control panels.

Waterproof ingress protection rating of IP57 protects against dust and temporary water immersion. Explore more in our Push Button Switches & Components category for additional solutions from C & K and other leading brands suitable for your industrial and commercial needs.
