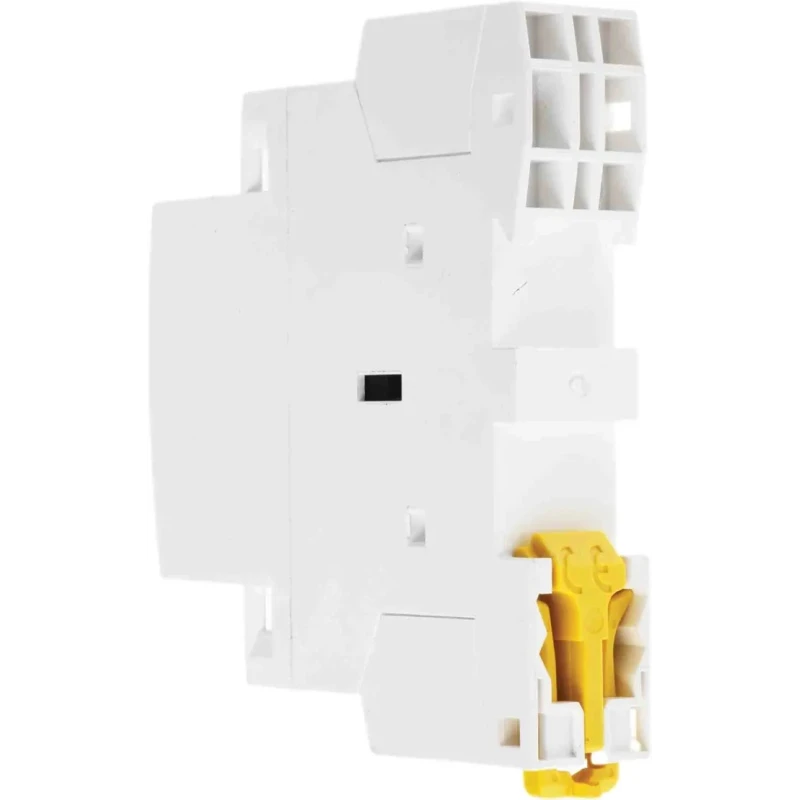

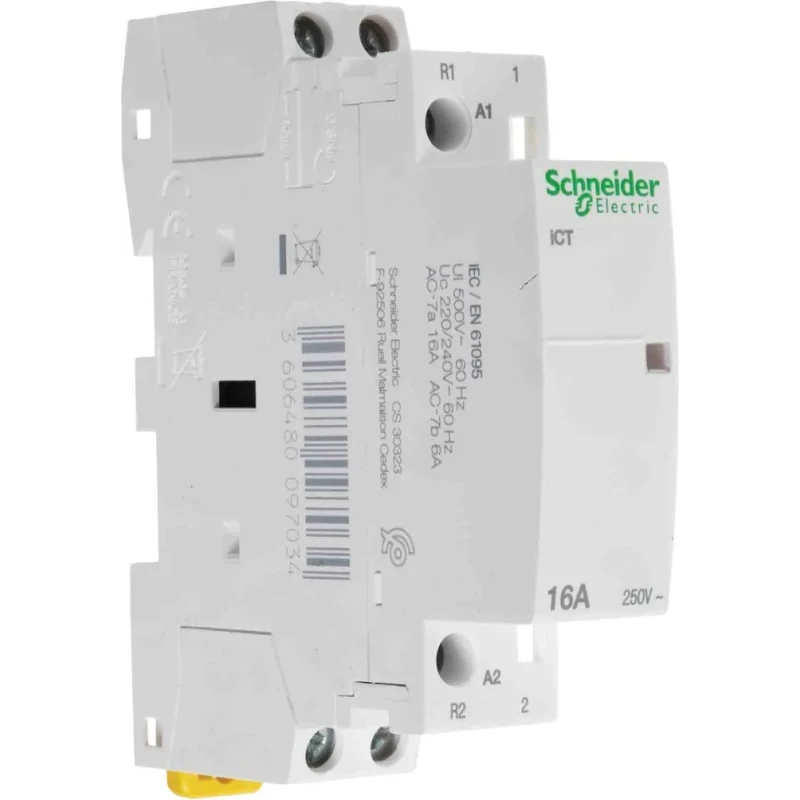

Schneider Electric ICT Contactor 230V AC Coil 2-Pole 16A 1 NO/1 NC 250V AC A9C22615
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 18mm |
| Model | A9C22615 |
| Depth | 68mm |
| Width | 81mm |
| Mount Type | DIN Rail |
| Series | ICT |
| Power Rating | 1.3W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61095, RoHS |
| Contact Voltage | 250V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 1 NO/1 NC |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- Equipped with 1 normally open and 1 normally closed contact configuration for versatile switching.
- Power rating of 1.3W at 240V ensuring energy efficiency.
- Designed for DIN rail mounting with screw terminal connections offering IP20 finger-safe protection.
- Operates reliably within -5°C to 60°C temperature range suitable for industrial environments.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC to enhance switching capabilities.
- Compact dimensions of 68mm depth, 18mm length, and 81mm width optimize panel space.
- Complies with IEC/EN 61095 and RoHS standards ensuring safety and environmental compliance.
- Manufactured in France to high quality standards with class-2 insulation ensuring operator safety.
Product Description
Schneider Electric A9C22615 ICT Contactor is designed for efficient motor control with a coil voltage of 230V AC and operational contact current rated at 16 Amps. This 2-pole contactor enables reliable switching with 1 normally open (NO) and 1 normally closed (NC) contact configuration, suitable for both single-phase and three-phase applications.
The device features a low power coil consumption of 1.3W at 240V, making it energy efficient while providing robust switching capabilities. It mounts easily on DIN rails and incorporates screw terminal connections with IP20 finger-safe protection for operator safety and international compatibility.
Operating temperature range from -5°C to 60°C ensures the contactor performs reliably in diverse industrial environments including manufacturing, HVAC systems, and automation control. The compact design with dimensions 68mm depth, 18mm length, and 81mm width helps optimize panel space in control cabinets.
With compliance to IEC/EN 61095 and RoHS standards, this Schneider Electric ICT contactor offers assured quality and environmentally responsible manufacturing. The built-in auxiliary contacts (1 NO and 1 NC) provide added switching capacity for control and signaling circuits.
The robust class-2 insulation gives continuous safety for operators and unqualified personnel, making it suitable for industrial and commercial use cases involving motor control, automation, and power switching requirements.
Equipped with built-in auxiliary contacts for versatile switching applications. IP20 rated screw connections support safe and reliable wiring. Impulse relay and day-night function enhance operational flexibility. Coil is rated for continuous 24-hour operation ensuring durability.
Spacers recommended when multiple contactors are installed side-by-side to avoid heat build-up.
This Schneider Electric ICT Contactor A9C22615 is an excellent solution for industrial automation, manufacturing processes, motor control panels, and HVAC system integrations. Browse EnvMart for more Schneider Electric automation and control gear products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric ICT Contactor has a power rating of 1.3W at 240V, ensuring energy efficiency during operation.
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact, providing versatile switching capabilities.
The operating temperature range for this contactor is from -5°C to 60°C, making it suitable for various industrial environments.
The dimensions of this contactor are 68mm in depth, 18mm in length, and 81mm in width, optimizing panel space in control cabinets.
It is designed for DIN rail mounting, allowing for easy installation in control panels.
This model uses screw terminals with IP20 finger-safe protection, ensuring safe and reliable wiring connections.
The contactor complies with IEC/EN 61095 and RoHS standards, ensuring safety and environmental compliance.
The maximum contact current for this contactor is rated at 16A, suitable for various motor control applications.
Yes, it includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed for enhanced switching capabilities.
The coil voltage for this Schneider Electric contactor is 230V AC, making it compatible with standard control circuits.
This contactor is manufactured in France, adhering to high quality standards.
It features class-2 insulation, providing continuous safety for operators and unqualified personnel.
