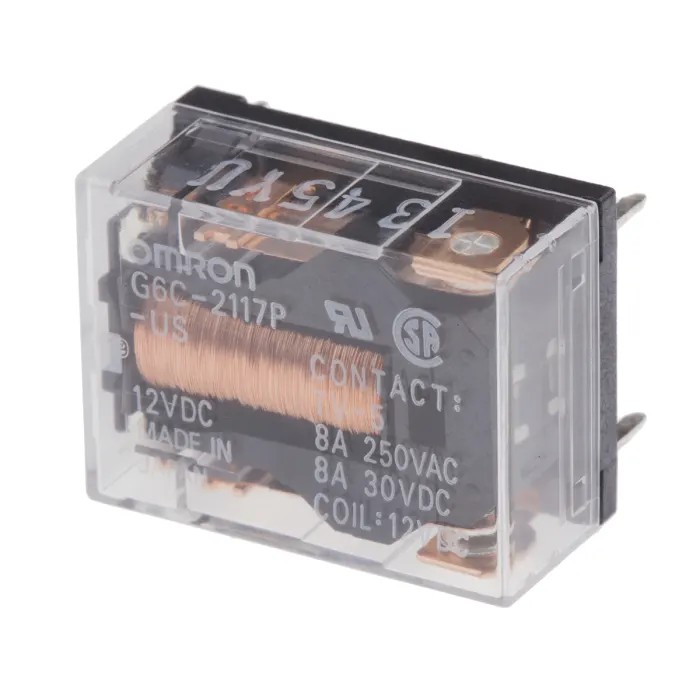

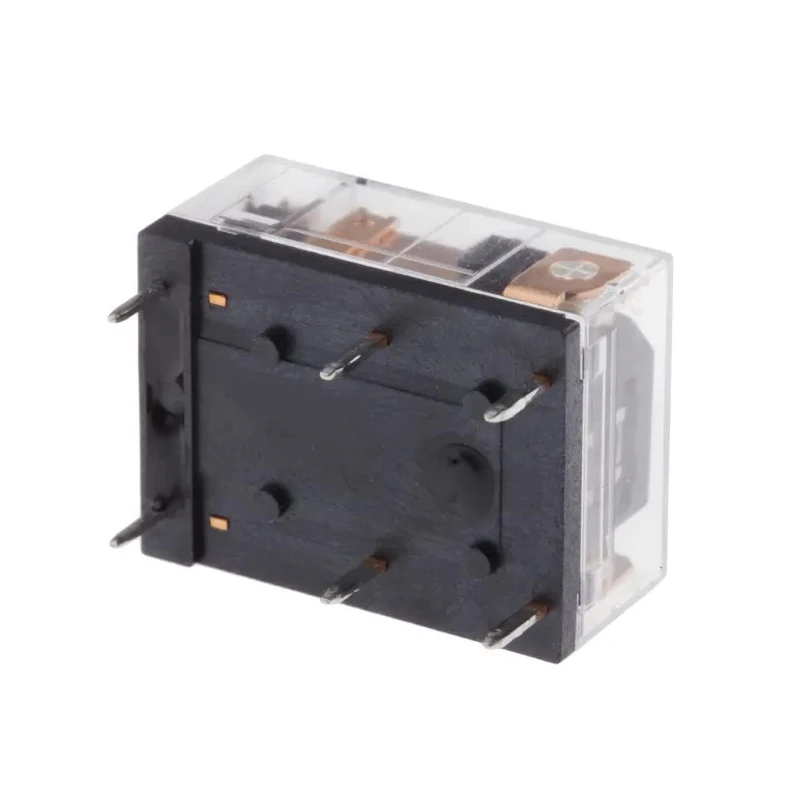

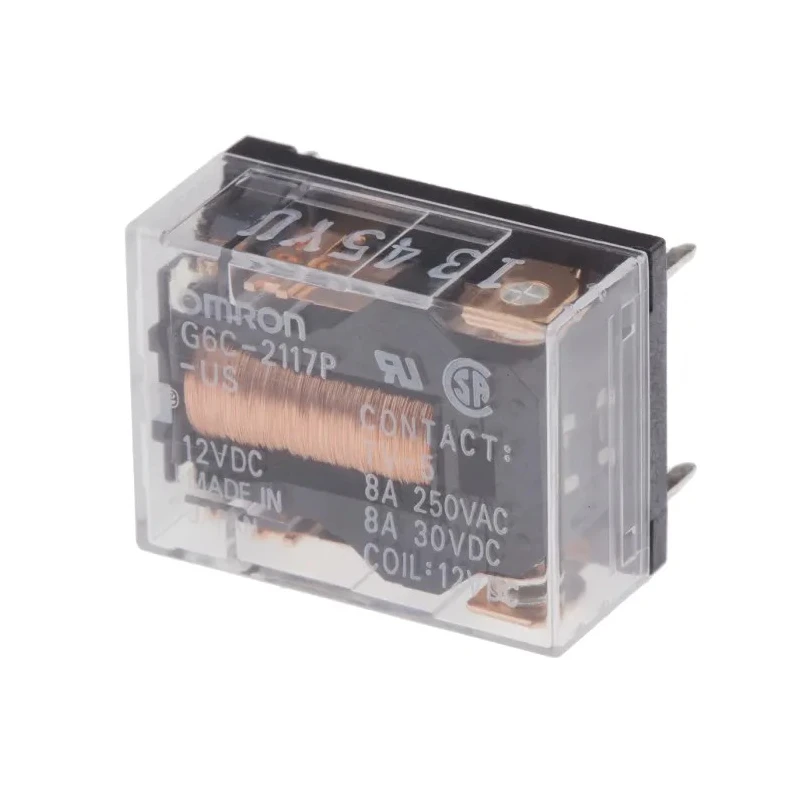

Omron PCB Power Relay 12V DC Coil 8A Switching Current SPDT G6C-2117P-US DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6C-2117P-US DC12 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Switching Power | 200mW |
Key Features
- The relay has a coil voltage rating of 12V DC.
- Single-Pole Double-Throw (SPDT) contact configuration ensures versatile switching options.
- Mount type is PCB with solder terminal for secure attachment.
- Compact dimensions of 20mm length, 15mm width, and 10mm height fit space-constrained applications.
- Switching current is rated at 8A for robust power handling.
- Switching power capability is 200mW for efficient operation.
- Operates reliably in temperatures from -25°C to 70°C.
- Contact material is silver alloy with low resistance of 30 milliohms for optimal conductivity.
Product Description
Omron G6C-2117P-US DC12 PCB Power Relay is a compact, reliable relay designed for electronic and electrical applications requiring precise control and switching. With a low-power 12V DC coil and capacity to switch 8A current, this relay supports efficient circuit design with stable SPDT contact arrangement.
This relay is tailored for PCB mounting with solder terminals, featuring dimensions of 20mm length, 15mm width, and 10mm height making it suitable for space-saving requirements in automation, control panels, and other electrical installations. Its operating temperature range from -25°C to 70°C ensures dependable operation in varying environmental conditions.
The use of silver alloy contacts with a contact resistance of 30 milliohms minimizes signal losses and enhances durability. Coil resistance of 720 ohms and coil power consumption of only 200mW contributes to energy-efficient performance.
Certified by UL and CSA, the G6C series meets rigorous quality and safety standards essential for industrial and commercial power relay applications including automation, signal conditioning, and control systems.
The relay operates efficiently with 12V DC coil voltage. SPDT contact configuration allows versatile switching capabilities. Compact size supports integration into PCBs in tight spaces. Switching current up to 8A handles moderate power loads.
Meets UL and CSA standards for quality assurance. Suitable for automation, industrial control, and electrical circuits. Durable silver alloy contacts ensure longevity and conductivity. Low coil power consumption reduces energy usage in systems.
Wide operating temperature range supports various environmental conditions. Designed and manufactured in Japan assuring high reliability.
This power relay from Omron is ideal for use in commercial, industrial, and automation applications requiring accurate power switching, compact size, and industry certifications. For more solutions, explore our Electronics & Electricals category at EnvMart to find the right relay and control components for your projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this relay is 12V DC.
This model has a maximum switching current of 8A.
It features a Single-Pole Double-Throw (SPDT) contact configuration.
The relay has dimensions of 20mm in length, 15mm in width, and 10mm in height.
The contact material is silver alloy, which provides low resistance and optimal conductivity.
It operates reliably in temperatures ranging from -25°C to 70°C.
The coil resistance is 720 ohms.
The coil power consumption is 200mW.
This relay is certified by UL and CSA, ensuring it meets rigorous quality and safety standards.
It is designed for PCB mounting with solder terminals for secure attachment.
The switching power capability is 200mW.
This power relay is manufactured in Japan.
