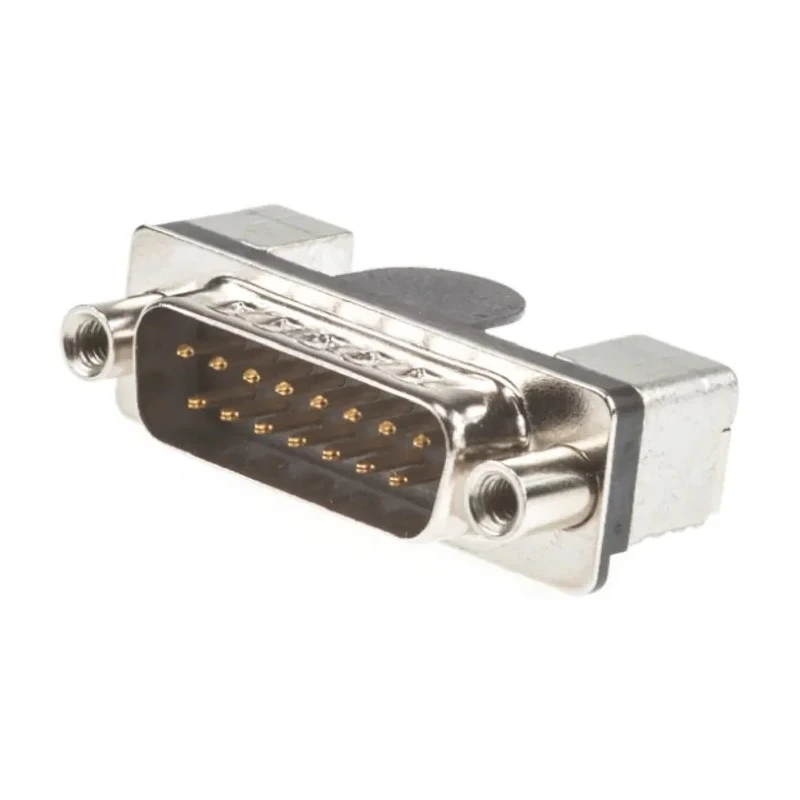

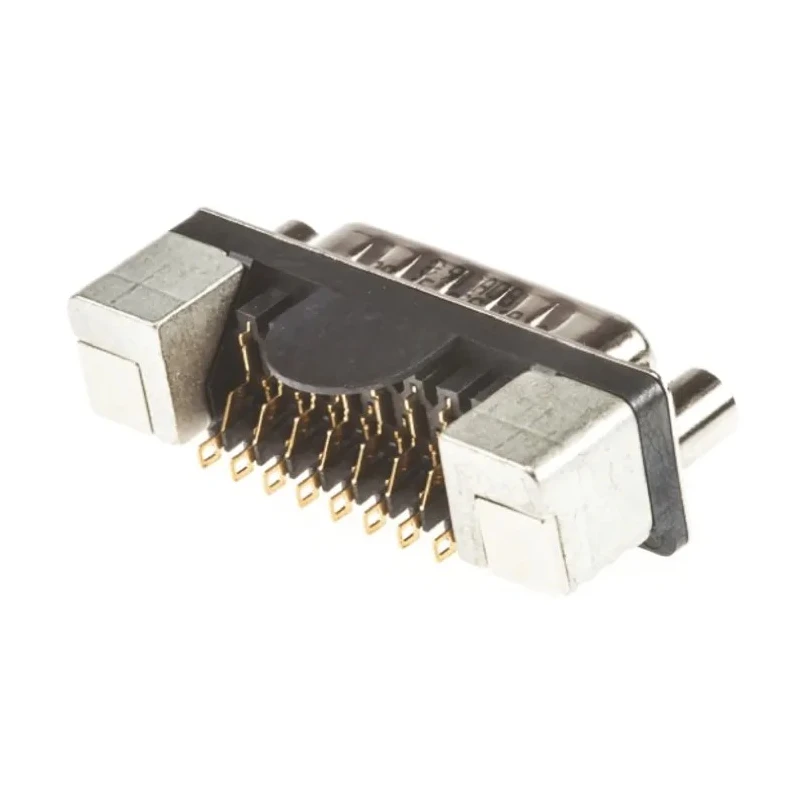

HARTING D-Sub 15 Way Right Angle 2.76 mm Pitch Surface Mounted Male D-Sub Connector with Board Lock 09552666819741
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Metal |
| Contact Material | Phosphor Bronze |
| Series | D-Sub |
| Mounting Hardware | Board Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-2 |
| 692-6046 | 9 way with UNC 4-40 non-removable screw locks fitted |
| 787-0893 | 9 way with M3 non-removable screw locks fitted |
| 692-6059 | 15 way with UNC 4-40 non-removable screw locks fitted |
| 787-0907 | 15 way with M3 non-removable screw locks fitted |
Key Features
- Rated for 5A current capacity ensuring reliable electrical performance.
- Right angle orientation designed for space-saving PCB layout.
- Durable metal housing provides robust mechanical protection.
- Gold plated phosphor bronze contacts ensure corrosion resistance and conductivity.
- Temperature range from -55°C to 125°C supports harsh environments.
- Solder termination type allows secure PCB mounting.
- Low profile design with 9.85 mm height suitable for compact assemblies.
- Includes board lock mounting hardware for secure installation.
Product Description
HARTING 09552666819741 D-Sub 15 Way Right Angle D-Sub Connector features a surface mount design with board lock hardware, metal housing, and a 2.76 mm pitch. Rated for a current capacity of 5A and voltage up to 1000V, this connector is suitable for a variety of demanding industrial, electronic, and manufacturing applications. Its right angle orientation and low profile (9.85 mm) height allow for efficient PCB space utilization.
The connector's contacts are made from phosphor bronze and plated with gold to ensure excellent conductivity and resistance against corrosion. Operating reliably across a wide temperature range from -55°C to 125°C, it is well-suited for environments with harsh temperature fluctuations. The solder termination type facilitates secure and durable attachment to printed circuit boards. The board lock mounting hardware adds mechanical stability during installation and use.
This product is commonly used in electronic components manufacturing, automotive electronics, industrial control systems, and communication equipment. Its robust metal housing provides mechanical protection from physical and environmental damage.
Rated for 5A current capacity ensuring reliable electrical performance. Right angle orientation designed for space-saving PCB layout. Durable metal housing provides robust mechanical protection. Gold plated phosphor bronze contacts ensure corrosion resistance and conductivity.
Temperature range from -55°C to 125°C supports harsh environments. Solder termination type allows secure PCB mounting. Low profile design with 9.85 mm height suitable for compact assemblies. Includes board lock mounting hardware for secure installation.
Voltage rating up to 1000V for high voltage applications. Manufactured in China to meet precise quality standards.
This connector is a reliable component choice for designers and engineers seeking high-quality, durable D-sub connectors to enhance their electronic assemblies and systems. For more products in the D-Sub Connector category, explore our extensive EnvMart catalog.
