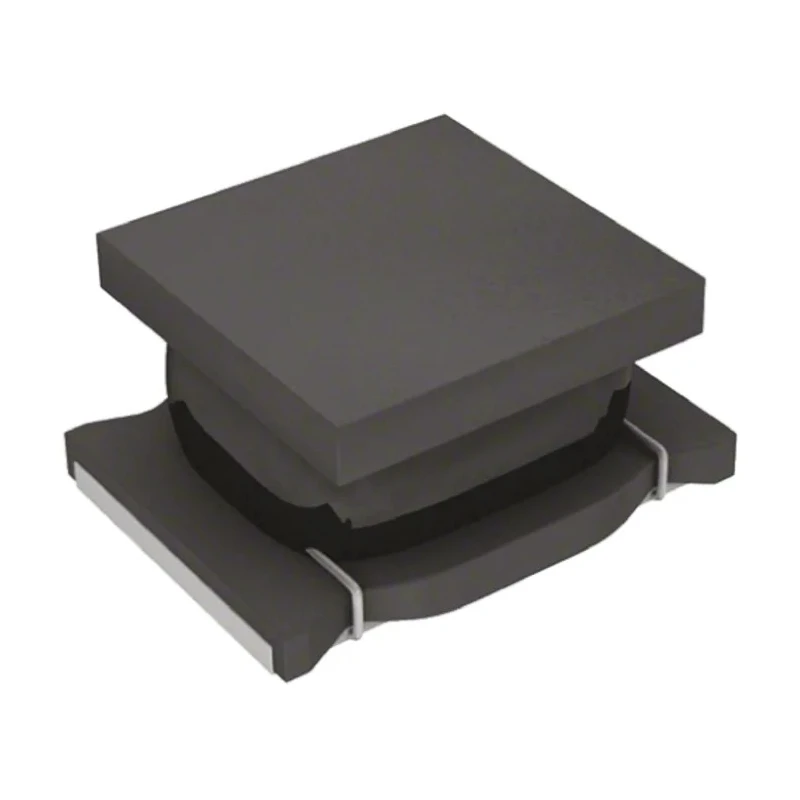

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 700 mA Idc LQH32PN100MN0L

Murata LQH32PN100MN0L shielded wirewound surface mount inductor is a 1210 size component featuring a ferrite core construction with a nominal inductance of 10 μH ±20%. It supports a maximum DC current of 700 mA and has a maximum DC resistance of 380 mΩ, optimized for low losses in power supply choke circuits.

The device is magnetically shielded to minimize electromagnetic interference, suitable for use in compact, high-density PCB designs, especially in automotive and industrial electronic applications where reliable inductance and current handling are critical.

The inductor is solder terminated and supplied in embossed tape packaging, facilitating automated assembly processes. Operating temperature ranges from -40°C to 85°C, making it well suited for harsh environments.

It has a maximum self-resonant frequency of 30 MHz, catering to high-frequency electronic designs, and moulded construction ensures protection and durability during mechanical handling.

This inductor features a compact 1210 case size ideal for surface mount placement. Wirewound construction on ferrite core ensures high performance and magnetic shielding. Low DC resistance improves efficiency and reduces heat generation.

Wide operating temperature range allows for reliable function in diverse conditions. Embossed tape packaging supports high-volume manufacturing. Designed for choke applications in DC power supply circuits, balancing inductance and current capability.

Compact dimensions optimize space utilization on printed circuit boards. Widely used in industrial, automotive, telecommunications, and consumer electronics for power management and noise suppression. Explore more Surface Mount Inductors and passive components on EnvMart to meet varied electronic design requirements.
