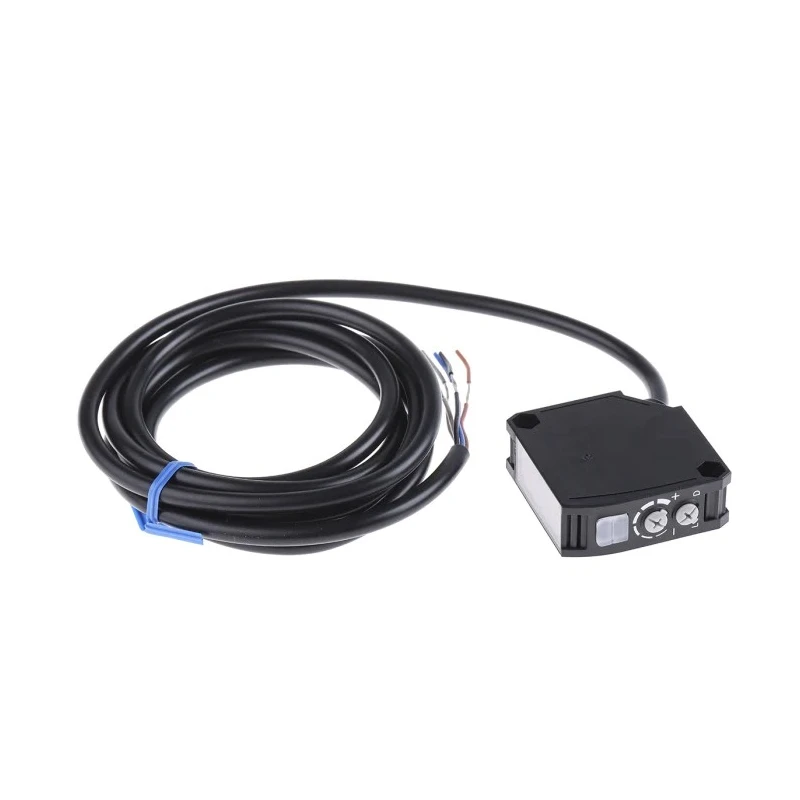

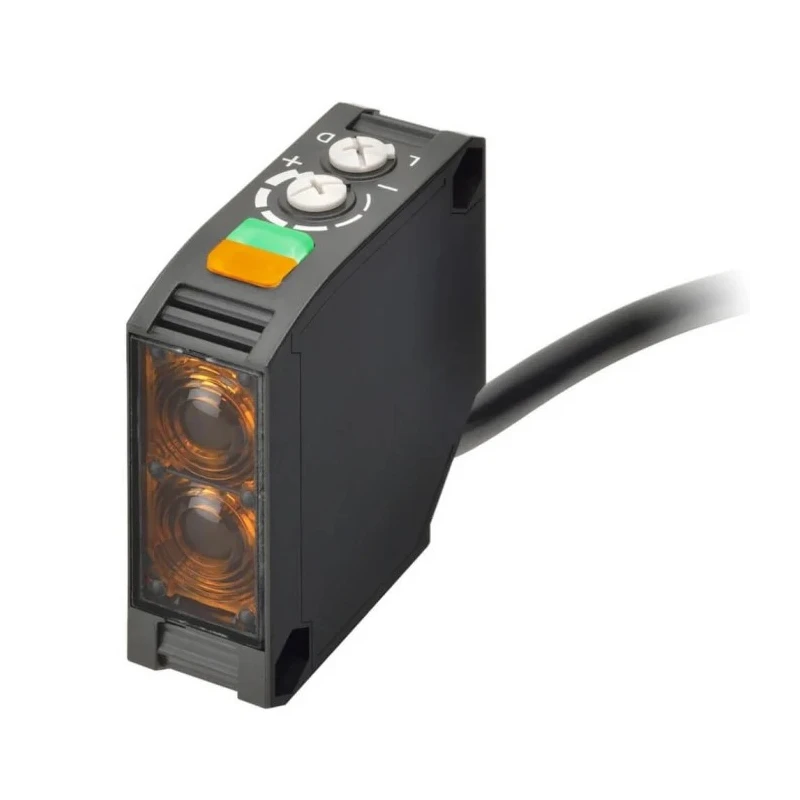

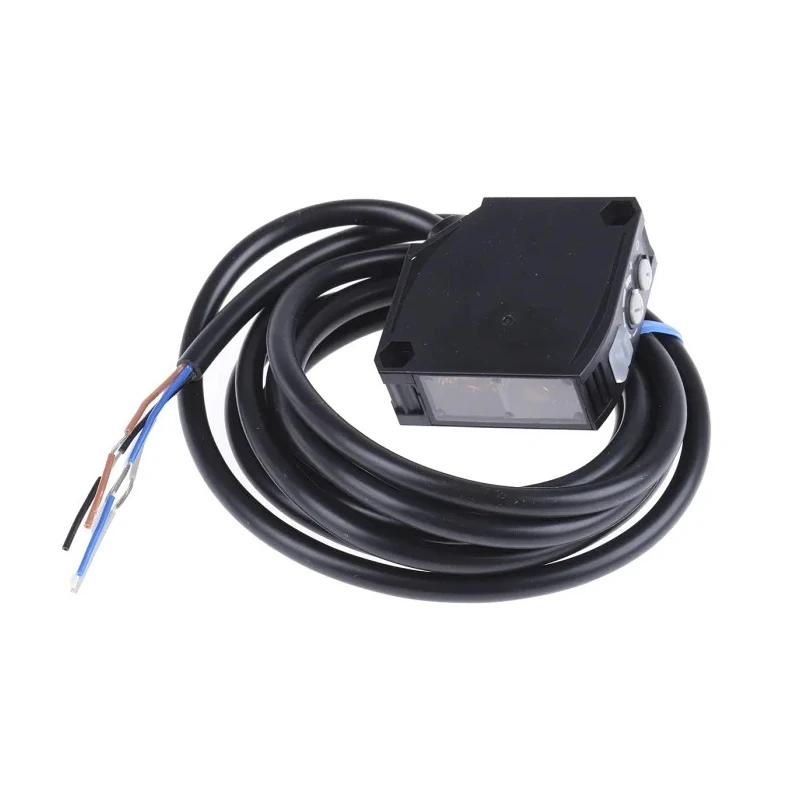

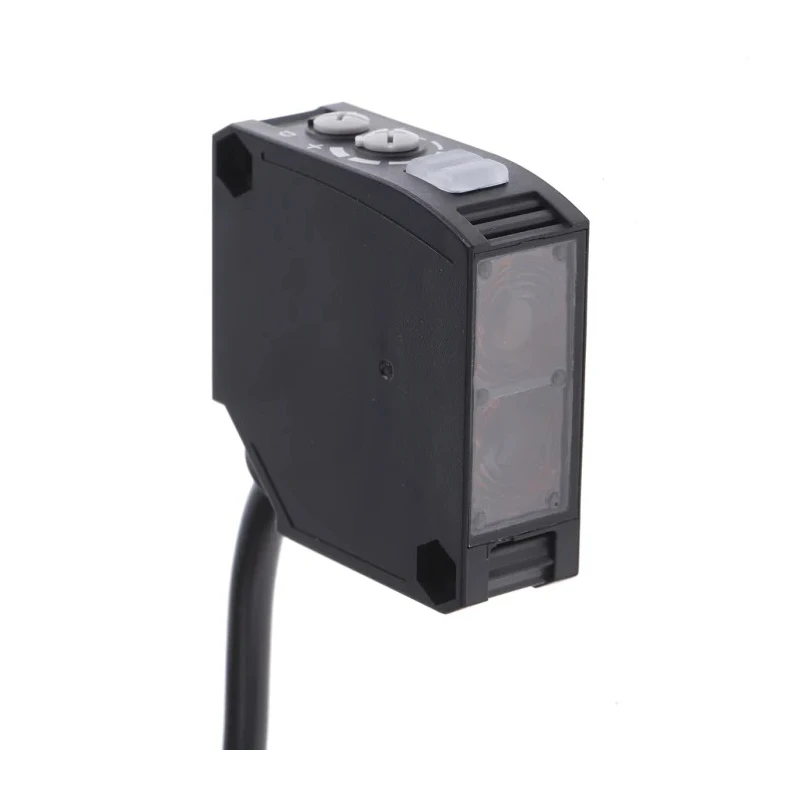

Omron Retroreflective Photoelectric Sensor, Block Sensor, 10 mm to 10 m Detection Range, Relay Output, IP64 E3JK-RR12 2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Response time | 20ms |
| Light Source | LED |
| Detection range | 10 mm → 10 m |
| Model | E3JK-RR12 2M |
| IP Rating | IP64 |
| Mount Type | Flange |
| Housing Material | ABS |
| Output type | Relay |
| Series | E3JK |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| DetectIon Type | Retroreflective |
| Terminal type | Wire Lead |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CCC, CE |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
Key Features
- Features a rugged ABS housing ensuring durability in industrial environments.
- Flange mount design allows secure and stable installation.
- Equipped with a visible red LED beam for easy alignment during setup.
- Operates with a selectable power supply voltage from 24 to 240V AC.
- Offers a fast 20 ms response time for efficient process control.
- IP64 rated protection suitable for dust and water spray resistance.
- Incorporates polarised light and MSR function for reliable detection of shiny objects.
- Compact dimensions of 52 mm (L) x 18 mm (W) x 50 mm (D) maximize space utilization.
Product Description
Omron E3JK-RR12 2M Retroreflective Photoelectric Sensor is a precise block sensor designed for industrial automation applications requiring detection distances from 10 mm up to 10 m. Its relay output facilitates connection to motors or indicator lights, enabling seamless integration into automated systems.
This sensor includes a visible red LED beam that simplifies alignment and setup. The retroreflective detection method eliminates the need for a separate receiver, reducing installation complexity. The sensor’s ABS housing is rugged and compact, with dimensions measuring 52 mm in length, 18 mm in width, and 50 mm in depth, making it suitable for tight installation spaces.
The device operates reliably within a temperature range of -25°C to 55°C, and its IP64 rating provides protection against dust and water spray, ensuring durability in harsh industrial environments. The selectable power supply voltage range from 24 to 240V AC offers flexibility in various setups.
Additional features include a 20 ms response time and the use of polarized light with MSR function to detect shiny and reflective objects effectively. The flange mount allows for secure attachment in diverse applications.
This photoelectric sensor is widely used in food and beverage production lines, agricultural machinery controls, warehousing and logistics management, as well as building infrastructure monitoring, delivering efficient and accurate sensing performance.
Rugged ABS housing enhances durability. Compact design for limited space installations. Polarised light and MSR function improve detection accuracy. Selectable 24 to 240V AC power supply voltage. Fast 20 ms response time supports high-speed processes.
IP64 protection rating for industrial environments. Retroreflective sensing negates need for separate receiver. Flange mount for stable installation. Visible red LED beam for convenient alignment. Explore more quality components in the Photoelectric Sensors category at EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 10 mm to 10 m.
It features a relay output, allowing for connection to motors or indicator lights.
The response time is 20 ms, which supports efficient process control.
This model has an IP64 rating, providing protection against dust and water spray.
It operates on a selectable power supply voltage from 24 to 240V AC.
The dimensions are 52 mm in length, 18 mm in width, and 50 mm in depth.
The housing is made of ABS, ensuring durability in industrial environments.
It operates reliably within a temperature range of -25°C to 55°C.
It features a flange mount design, allowing for secure and stable installation.
It uses a visible red LED beam for easy alignment during setup.
This model employs a retroreflective detection method, which eliminates the need for a separate receiver.
It complies with CCC and CE standards.
