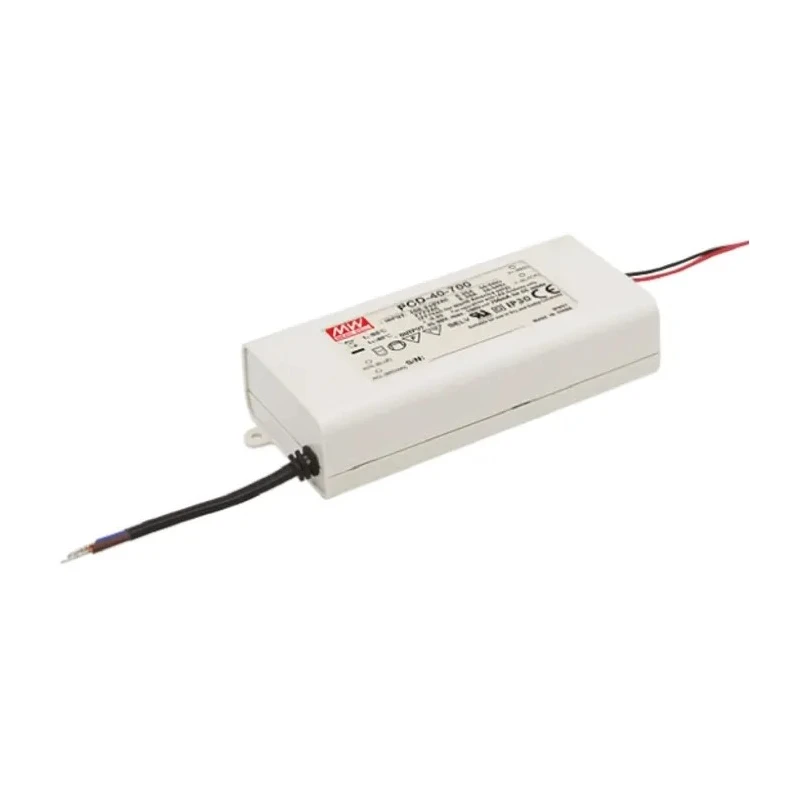

MEAN WELL 40W Constant Current 5 Output LED Driver IP30 Rated 45V 80V 500mA IP30
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP30 |
| IP Rating | IP30 |
| Mount Type | Screw |
| Series | PCD-40 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 40W |
| Input Voltage | 180, 295V ac |
| Output Voltage | 45, 80V |
| Power Dissipation | 40W |
| Standards/Approvals | UL, ENEC, CE, SELV |
| Primary Type | AC-AC |
| Driver Current | 500mA |
| LED Voltage | 180, 295V ac |
Key Features
- Operates with an input voltage range of 180 to 295V AC.
- Outputs 5 constant current outputs at 500mA each for LED driving.
- Supports output voltage range of 45V to 80V to accommodate various LED configurations.
- Equipped with built-in active power factor correction (PFC) for energy efficiency.
- Includes protections against short circuits and over temperature for reliability.
- Enclosed plastic casing with strain relief design to ensure safety and durability.
- Compatible with leading-edge and trailing-edge TRIAC dimmers for AC phase-cut dimming control.
- Cooling is achieved via free air convection without additional fans or pumps.
Product Description
MEAN WELL PCD-40-500B is a 40W constant current LED driver featuring 5 independent outputs, designed for indoor lighting applications with an IP30 protection rating. It operates within an input voltage range of 180 to 295V AC and provides an output voltage range between 45V and 80V at a stable 500mA current, perfectly suited for driving multiple LED strings.
This LED driver incorporates advanced features such as built-in active power factor correction (PFC) to improve electrical efficiency and reduce harmonic distortion. The device supports AC phase-cut dimming and is compatible with both leading-edge and trailing-edge TRIAC dimmers, allowing flexible lighting control in commercial and residential settings.
The PCD-40-500B is housed in a fully enclosed plastic case with strain relief design, ensuring mechanical robustness and user safety. Its design supports natural cooling through free air convection, eliminating the need for mechanical cooling components. Comprehensive protection mechanisms are included to guard against short circuits and thermal overloads, enhancing reliability and lifespan.
Certified to international safety standards including UL, ENEC, CE, and SELV, this driver meets global regulatory compliance requirements. It is ideal for use in industrial, commercial, and residential LED lighting schemes where multiple LED outputs are needed with precise current control. The series comes with a 3-year warranty reflecting confidence in long-term dependable operation.
Operates with input voltage from 180 to 295V AC. Provides 5 constant current outputs at 500mA each. Output voltage range of 45 to 80V selectable to match LED configurations. Supports AC phase-cut dimming with TRIAC dimmers.
Incorporates active PFC for enhanced power quality. Protection features include short circuit and over temperature safeguards. Enclosed IP30 rated plastic casing with strain relief design. Cooling by free air convection without fans.
Certified to UL, ENEC, CE, SELV standards. Suitable for indoor industrial, commercial, and residential LED lighting applications. Discover the extensive range of MEAN WELL LED Drivers at EnvMart for reliable and efficient lighting power solutions tailored to diverse industrial and commercial needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 180 to 295V AC.
This model provides 5 constant current outputs, each delivering 500mA.
The output voltage range is between 45V and 80V, allowing compatibility with various LED configurations.
It includes protections against short circuits and over temperature to enhance reliability.
Cooling is achieved through free air convection, eliminating the need for additional fans or pumps.
The maximum output power is 40W.
It is certified to international safety standards including UL, ENEC, CE, and SELV.
It is housed in an enclosed plastic casing with a strain relief design for safety and durability.
The country of origin is India.
This unit uses a screw mount type.
The primary operating mode is constant current, specifically designed for LED driving applications.
