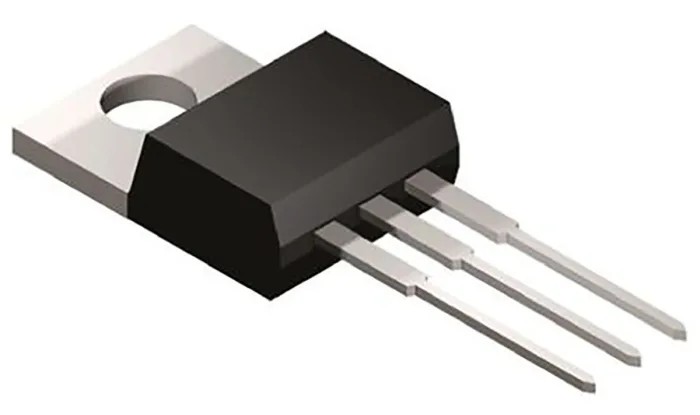

Littelfuse Through Hole TRIAC 3-Pin 400 V, Gate Trigger Voltage 2.5 V T2500DG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 15.75mm |
| Length | 10.28mm |
| Model | T2500DG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 6A |
| Repetitive Peak Reverse Voltage VDRM | 400V |
| Surge Current Rating | 60A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 30mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 2V |
| Repetitive Peak Off-State Current | 2mA |
Key Features
- Rated average on-state current of 6A for reliable load handling.
- Compact TO-220AB package suitable for through hole mounting.
- Maximum gate trigger current of 60mA ensures efficient triggering.
- Operates within temperature range of -40°C to 125°C for broad industrial use.
- Surge current rating of 60A allows handling transient loads.
- Peak on-state voltage of 2V minimizes power loss during conduction.
- Designed for single configuration AC switching applications.
- Repetitive peak reverse voltage of 400 V supports high voltage loads.
Product Description
Littelfuse T2500DG is a Through Hole mounted TRIAC semiconductor device engineered for industrial and commercial AC switching and control applications. This 3-pin device is housed in a TO-220AB package, delivering robust performance with a rated average on-state current of 6A and a repetitive peak reverse voltage of 400 V.
With a maximum gate trigger voltage of 2.5 V and gate trigger current of 60mA, the T2500DG offers precise control for alternating current circuits. Its surge current handling capability of 60A ensures protection against transient currents which are common in industrial environments.
The device operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for harsh conditions encountered in manufacturing, HVAC, and power systems. Its compact form factor, measuring 15.75mm in height and 10.28mm in length, facilitates easy PCB integration in through hole assembly configurations.
Applications include AC load control, motor speed regulation, lighting dimmers, and heater control in various industrial and laboratory electrical systems. Rated average on-state current of 6A for robust alternating current switching.
TO-220AB package type ensures durability and heat dissipation. Maximum gate trigger current of 60mA for efficient activation. Wide operating temperature range suited for demanding industrial environments. Surge current rating of 60A accommodates transient load spikes.
Peak on-state voltage at 2V minimizes power loss during operation. Single configuration TRIAC, ideal for bidirectional AC switching. Repetitive peak off-state current is low at 2mA, reducing standby power consumption. Dimensional profile suitable for standard PCB mounting and through hole applications.
Choose Littelfuse T2500DG for reliable semiconductor control in industrial electronics, power management systems, and electrical component manufacturing. Explore more components in the Discrete Semiconductors category on EnvMart.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this model is 6A, allowing for reliable load handling in AC applications.
The maximum gate trigger voltage for the T2500DG is 2.5V, which ensures efficient triggering of the device.
This TRIAC has a surge current rating of 60A, enabling it to handle transient loads effectively.
It operates within a temperature range of -40°C to 125°C, making it suitable for various industrial environments.
The T2500DG measures 15.75mm in height and 10.28mm in length, suitable for through hole mounting on PCBs.
The peak on-state voltage of the T2500DG is 2V, which helps minimize power loss during conduction.
It is housed in a TO-220AB package, which is designed for through hole mounting applications.
The maximum holding current for this model is 30mA, which is important for maintaining stable operation.
This TRIAC is suitable for AC load control, motor speed regulation, lighting dimmers, and heater control in industrial and laboratory systems.
The repetitive peak reverse voltage is rated at 400V, supporting high voltage loads in various applications.
This model features a 3-pin configuration, making it compatible with standard circuit designs.
The maximum gate trigger current for this TRIAC is 60mA, which allows for efficient activation in AC circuits.
