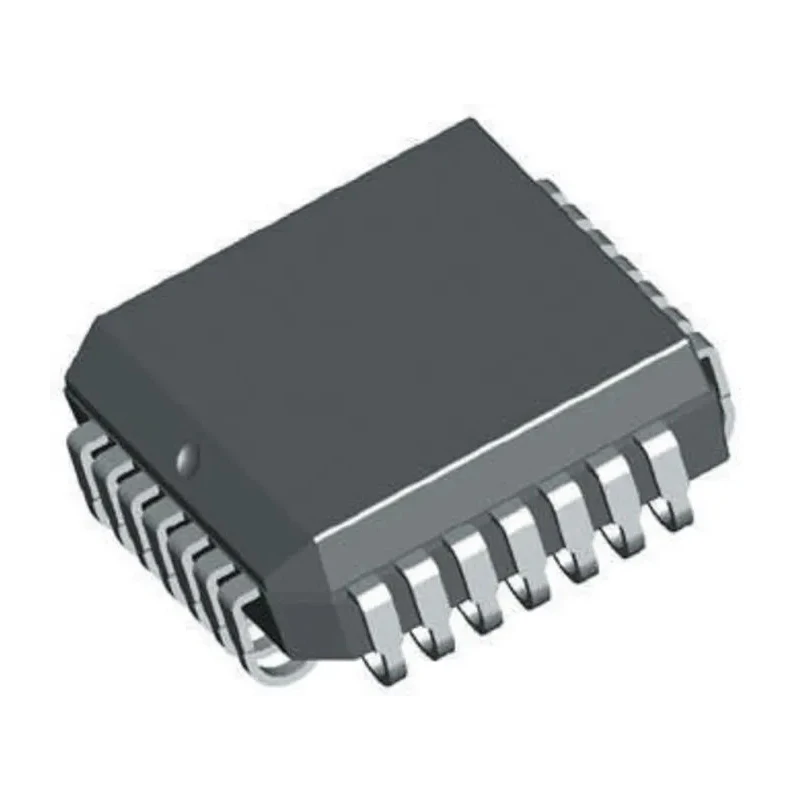

Microchip ARCNET Controller IC 5 Mbps, Surface Mount 28-Pin PLCC COM20020I-DZD

Free Delivery in India | Lowest Global Shipping Charges

Microchip ARCNET Controller IC 5 Mbps, Surface Mount 28-Pin PLCC COM20020I-DZD

Name: Microchip ARCNET Controller IC 5 Mbps, Surface Mount 28-Pin PLCC COM20020I-DZD
Brand: Microchip
SKU: 368093
Price: 37.29 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	3.43mm
Length	11.58mm
Model	COM20020I-DZD
Width	10.92mm
Mount Type	Surface
Series	COM20020
Maximum Operating Temperature	85°C
Package Type	PLCC
Sub Type	CAN Controller
Minimum Operating Temperature	-40°C
Interface Type	ANSI 878.1
Pin Count	28
Maximum Supply Voltage	5V
Supply Current	40mA
Maximum Data Rate	5Mbps
Number of Transceivers	1
Microchip COM20020I-DZD, ARCNET Controller 5Mbps ANSI 878.1, 28-Pin PLCCBrand	Microchip

Key Features

Supports maximum data rate up to 5 Mbps.
Single transceiver designed for ARCNET communication networks.
Supply current of 40 mA ensures efficient operation.
Operates within temperature range from -40°C to 85°C for industrial use.
Surface-mount mount type simplifies PCB assembly and integration.
Compact dimensions of 11.58 mm length and 10.92 mm width ensure space-saving designs.
Package type PLCC with 28 pins facilitates secure and reliable connection.
Maximum supply voltage is 5 V with normal power down mode operation.

Product Description

Microchip COM20020I-DZD ARCNET Controller IC 5 Mbps is a surface mount device housed in a 28-pin PLCC package, designed for high-performance network communications in industrial and electronic applications. This controller operates with a maximum data rate of 5 Mbps using an ANSI 878.1 interface, providing reliable and efficient Ethernet communication capabilities.

The device supports a single transceiver optimized for ARCNET data communication. It provides a supply current of 40 mA and operates over a broad temperature range of -40°C to 85°C, ensuring reliability in industrial environments. The controller’s compact dimensions (11.58 mm length, 10.92 mm width, and 3.43 mm height) enable integration into tight PCB layouts.

Designed with surface mount technology and featuring a PLCC package type with 28 pins, it offers robust mechanical and electrical connections. The maximum supply voltage rating of 5 V makes it compatible with standard industrial power supplies. The product does not include ESD protection, thus care must be taken during handling to avoid static damage.

This COM20020 series ARCNET controller meets ANSI 878.1 standards and is suitable for use in automotive systems, industrial automation, and network control applications where dependable communication interfaces are required.

Maximum Data Rate of 5 Mbps enables fast network data transfer. Single transceiver simplifies network design. 40 mA supply current keeps power consumption efficient. Wide operating temperature range from -40°C to 85°C for harsh environments.

Surface mount PLCC package supports compact assembly. Standard 28-pin configuration ensures compatibility. Maximum supply voltage of 5 V aligns with common system voltages. ANSI 878.1 compliant interface ensures interoperability with ARCNET systems.

Suitable for industrial, laboratory, and electronic assemblies. Discover more electronic components and semiconductor devices like this Microchip ARCNET Controller IC at EnvMart for your industrial and technological needs.
