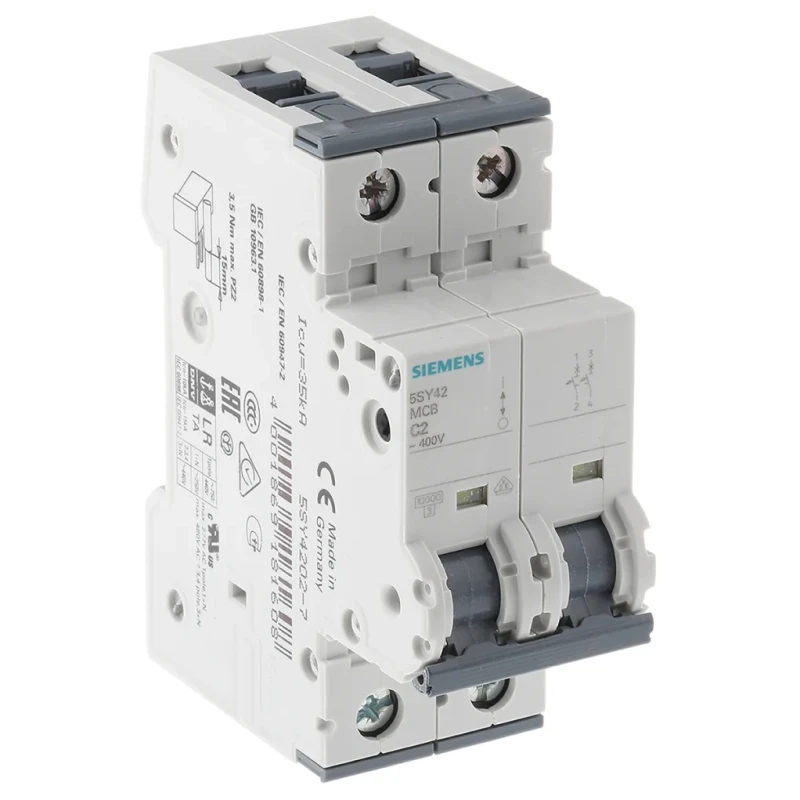

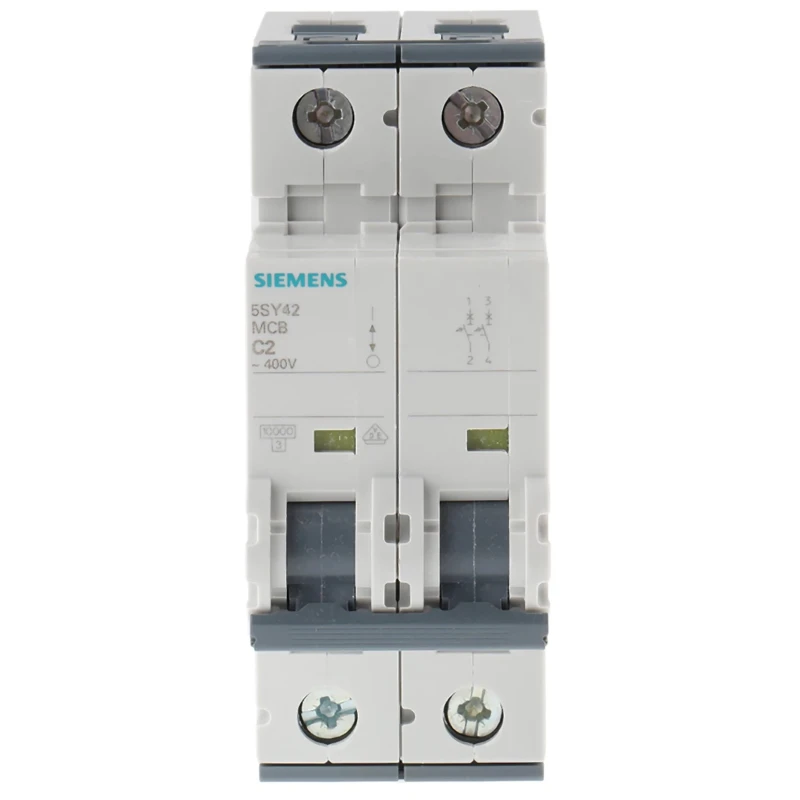

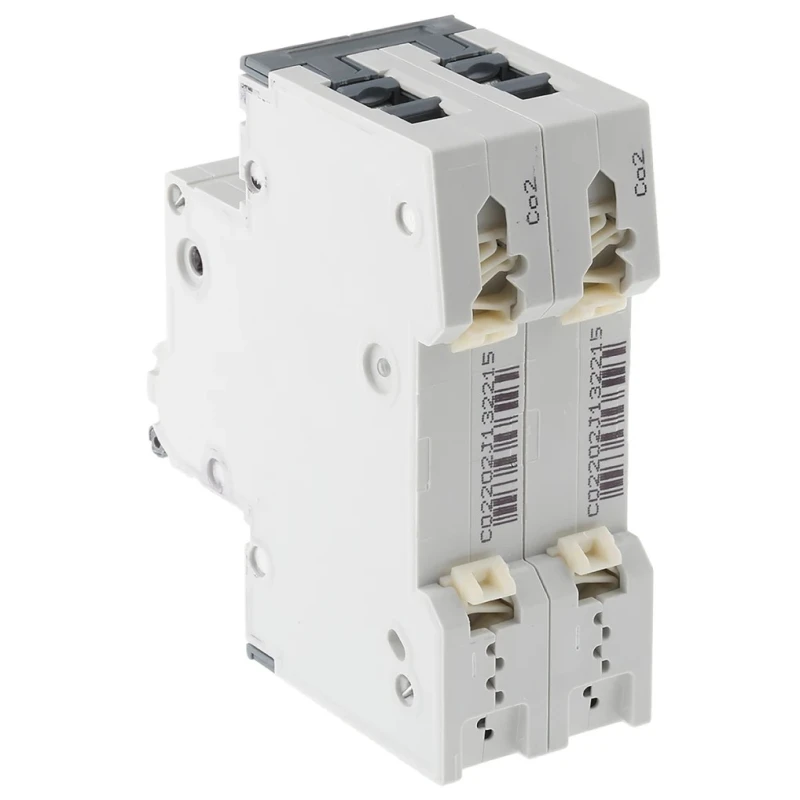

Siemens SENTRON 5SY4 Miniature Circuit Breaker 2-Pole 2A Type C 400V AC 400V DC 10kA Breaking Capacity 5SY4202-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 89.8mm |
| Model | 5SY4202-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | 5SY4 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | CCC, EAC, CE |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 400V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
Key Features
- Provides reliable circuit protection against overloads and short circuits.
- 2-pole configuration suitable for 240V circuits and dual 120V circuits.
- Type C tripping characteristic enables tripping at 5 to 10 times rated current.
- Compact DIN rail mount design with 36mm width saves panel space.
- Rated for both AC and DC with high breaking capacity for industrial and commercial use.
- Equipped with screw terminals for secure wiring connections.
- Wide operating temperature range from -25°C to +55°C for harsh environments.
- IP20 rated enclosure provides basic protection against ingress.
Product Description
Siemens 5SY4202-7 SENTRON series Miniature Circuit Breaker provides robust and reliable electrical protection with a current rating of 2A and type C tripping characteristics. It is designed to automatically interrupt electric circuits during overload or short circuit conditions, protecting industrial, manufacturing, and commercial electrical installations.
This 2-pole MCB supports both 400V AC and 400V DC voltage ratings and can handle breaking capacities up to 10 kA. Its compact design, measuring 36mm width, 89.8mm height, and 76mm depth, allows for convenient DIN rail mounting in control panels and electrical enclosures. The screw terminal type enables secure electrical connections.
Manufactured to meet international standards such as CCC, EAC, and CE, this device is suitable for harsh environments with an operating temperature range from -25°C to +55°C and an IP20 ingress protection rating. It is an extended product life 'Better World' product made in Germany, providing dependable safety and long-term performance.
Applications include electrical protection in industrial automation systems, manufacturing plants, commercial buildings, and residential electrical panels ensuring circuit safety and operational reliability.
Reliable protection against overloads and short circuits for safety assurance. DIN rail mounting and compact dimensions optimize panel space utilization. Type C tripping curve offers versatility for heavy-duty commercial applications.
Dual AC/DC voltage ratings enhance application flexibility. Operates effectively in extreme temperature conditions for harsh environments. Screw terminal design ensures stable and secure wiring connection. Compliance with CCC, EAC, and CE standards assures quality and safety.
Extended product life supports sustainability and efficiency goals. IP20 enclosure protects against solid objects and electrical contact. Originated from Germany, guaranteeing premium manufacturing standards. Explore Siemens products and related circuit breakers on EnvMart for comprehensive electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 2A.
It supports rated voltages of 400V AC and 400V DC.
The breaking capacity of this circuit breaker is 10 kA.
This model measures 36mm in width, 89.8mm in height, and 76mm in depth.
It is designed for DIN rail mounting, which facilitates easy installation in control panels.
It features Type C tripping characteristics, which enable tripping at 5 to 10 times the rated current.
The circuit breaker has an IP20 rating, providing basic protection against ingress of solid objects.
It operates effectively in environments with temperatures ranging from -25°C to +55°C.
It is equipped with screw terminals for secure wiring connections.
This circuit breaker complies with international standards such as CCC, EAC, and CE.
It is suitable for electrical protection in industrial automation systems, manufacturing plants, and commercial buildings.
It belongs to the SENTRON series of miniature circuit breakers.
