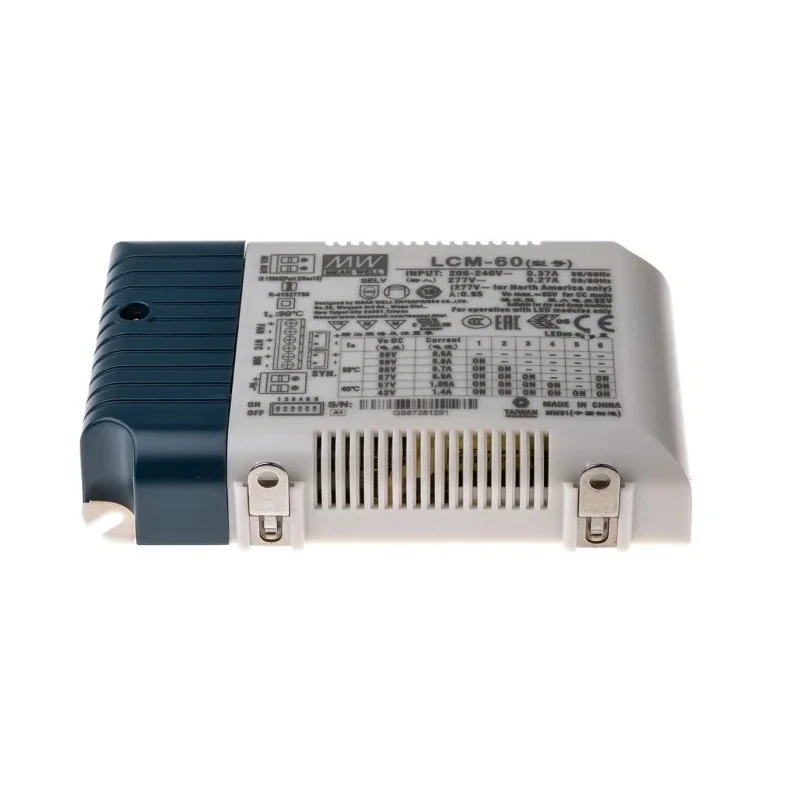

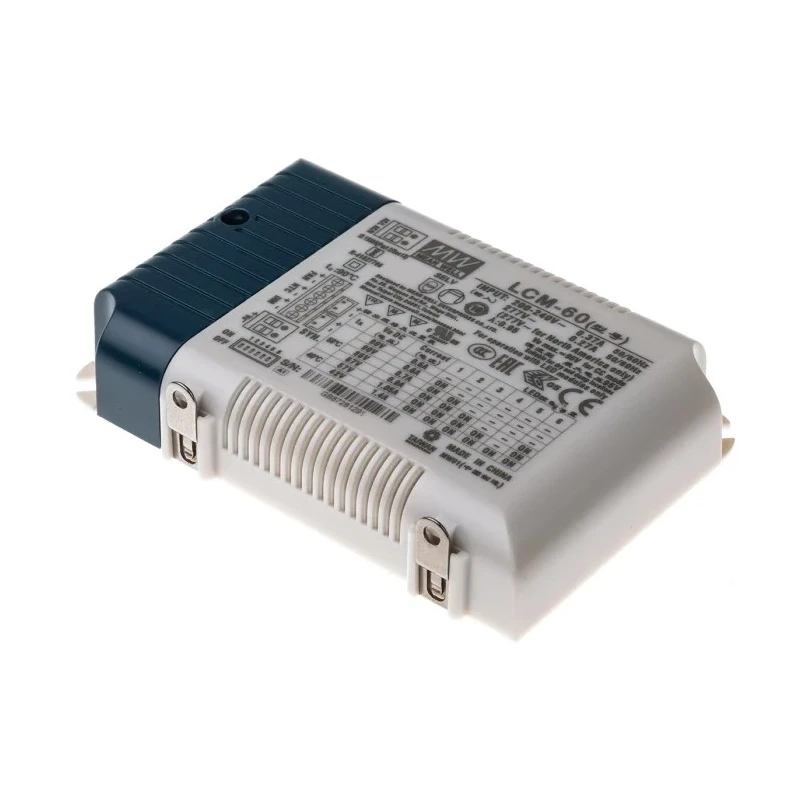

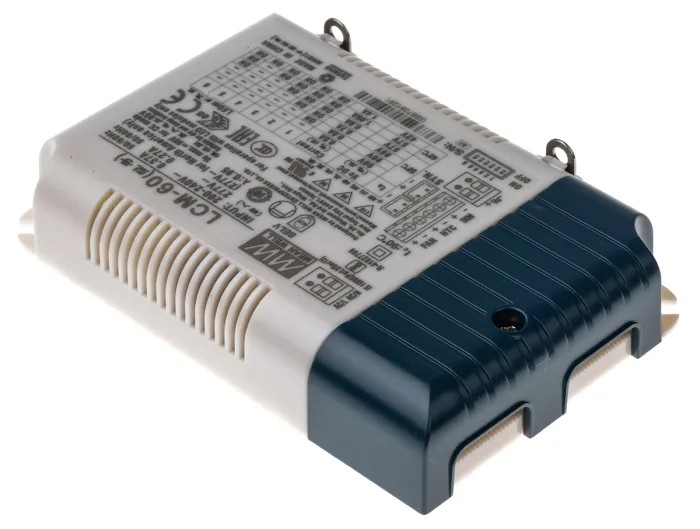

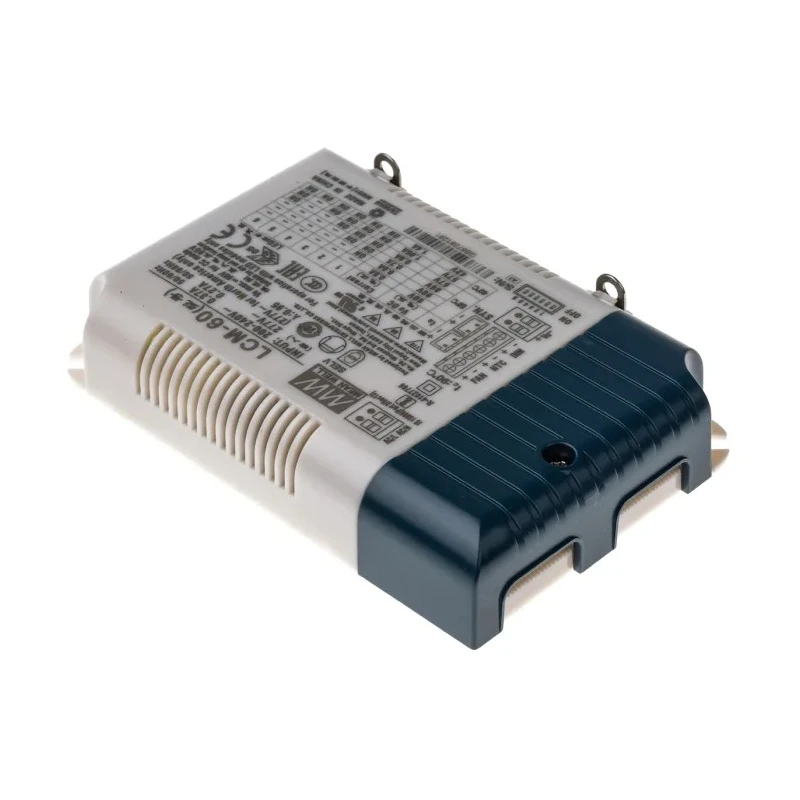

MEAN WELL 5 Output LED Driver, Constant Current, 700mA, 2-90V Output Voltage, 60.3W Power, IP20, 1/10 V and PWM Dimming IP20

MEAN WELL LCM-60 is a high-performance 5 output LED driver, model IP20, designed for constant current LED lighting applications, delivering 700mA current and supporting output voltage range of 2 to 90 Volts with maximum output power of 60.3 Watts. The driver incorporates advanced features such as built-in active Power Factor Correction (PFC) and multiple protection mechanisms including short circuit, over voltage, and over temperature protections to ensure safety and reliability.

Constructed within an enclosed IP20-rated plastic housing, the LCM-60 ensures basic protection against dust ingress while allowing free air convection for effective cooling without noise. It supports 0 to 10 VDC and PWM dimming input signals for versatile dimming control, enabling smooth adjustment of LED brightness in various industrial and commercial lighting scenarios.

The product operates on AC input voltage ranging approximately from 180V to 295V AC, making it adaptable to common mains supplies. It features a built-in 12V/50mA auxiliary output for powering external circuitry or controllers. Temperature compensation is possible via an external NTC, enhancing LED lifespan and performance stability under varying thermal conditions.

This LED driver comes with quick connect terminals and screw mount type for secure and convenient installation. Its Class II power unit design requires no earth connection (no FG). The detailed multiple-stage output current levels can be selected using DIP switches according to system requirements.

Ideal for industrial, commercial, architectural, and laboratory LED lighting use cases, the LCM-60 series from MEAN WELL ensures efficient LED driver performance with reliable safety functions. Its robust design suits applications requiring flexible dimming and stable current supply, maintaining LED longevity.

This LED driver supports multiple output currents selectable via DIP switch. It operates with input AC voltage range suitable for 180 to 295V AC. Built-in active power factor correction enhances energy efficiency. Equipped with protections against short circuit, over voltage, and over temperature.

Enclosed plastic case with IP20 rating provides basic protection against dust. Supports 0 to 10V and PWM dimming control for flexible lighting adjustment. Includes a 12V/50mA auxiliary output for auxiliary power needs. Cooling is done by free air convection ensuring silent operation.

Temperature compensation can be performed using an external NTC sensor. Features quick connect terminal type for easy installation. Discover reliable LED drivers with MEAN WELL at EnvMart for enhanced lighting solutions.
