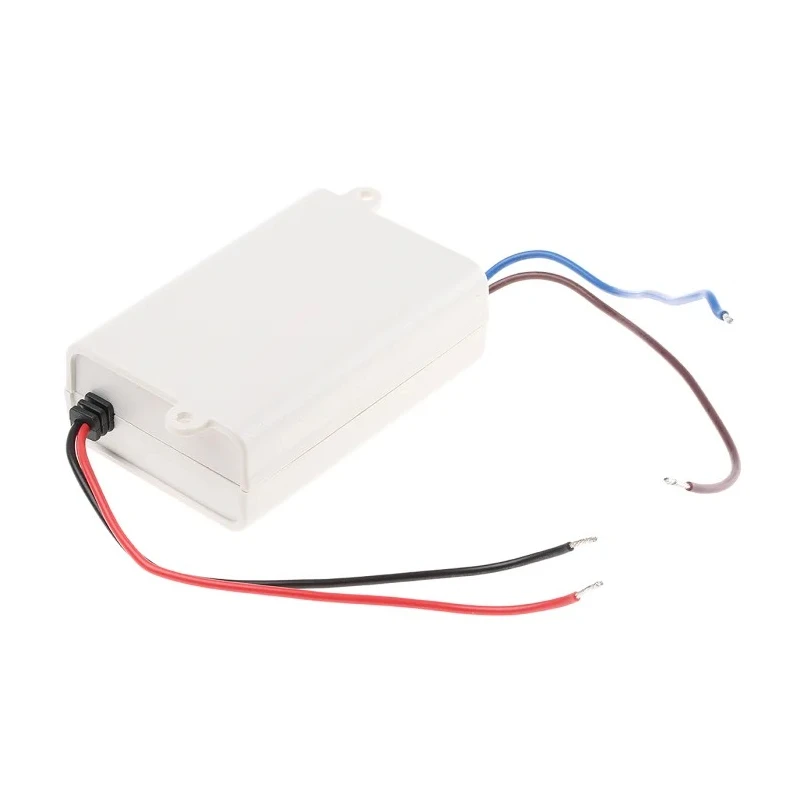

MEAN WELL APV-35 Series Constant Voltage 36W LED Driver, 24V, 1.5A, IP30, Screw Mount IP30 1 Output LED Driver IP30
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP30 |
| IP Rating | IP30 |
| Mount Type | Screw |
| Series | APV-35 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 36W |
| Input Voltage | 264, 90, 127, 370V ac |
| Output Voltage | 24V |
| Power Dissipation | 36W |
| Protections | Short circuit / Overload / Over voltage |
| Standards/Approvals | BIS, CE, EAC, LPS, UL |
| Primary Type | AC-DC |
| Driver Current | 1.5A |
| MEAN WELL IP30 1 Output LED Driver, 24V, 16.08 W, 0.67A LED DriverBrand | MEAN WELL |
Key Features
- Supports a wide universal AC input voltage range from 90V to 264V AC.
- Equipped with short circuit, overload, and overvoltage protections for enhanced reliability.
- IP30 rated enclosure suitable for indoor LED lighting applications.
- Features screw mount type and wire terminal connections for secure installation.
- Operating temperature range from -30℃ to +70℃ with cooling by free air convection.
- High efficiency up to 84% helps reduce power losses and heat generation.
- Fully isolated plastic case with 94V-0 fire prevention rating.
- Complies with BIS, CE, EAC, LPS, and UL safety standards.
Product Description
MEAN WELL APV-35-24 is a 36W constant voltage LED driver from the APV-35 series, designed for indoor LED lighting and signage applications. This single output power supply provides a steady 24V DC output current of 1.5A. It accepts a wide universal AC input voltage range of 90 to 264 VAC and can withstand surge inputs up to 300VAC for 5 seconds, ensuring robustness in challenging electrical environments.
The driver features a compact IP30 rated enclosure with screw mounting and wire terminal connections, making installation easy and secure. Its plastic casing offers full isolation and a 94V-0 fire prevention rating, enhancing safety and durability. The unit operates efficiently with up to 84% energy conversion, reducing heat dissipation and promoting longer service life.
Protection mechanisms include short circuit, overload, and overvoltage protections, providing reliable performance and safeguarding connected LED loads. Designed to operate safely in temperatures ranging from -30 to +70°C, it uses free air convection for cooling without requiring a fan. This class 2 power supply has Class II isolation and no frame ground, complying with international standards including BIS, CE, EAC, LPS, and UL.
This MEAN WELL LED driver is perfect for use in industrial, commercial, and residential LED lighting projects where a stable, efficient power source is required. It is recommended for indoor use without demanding high waterproof or dustproof capabilities.
Supports universal AC input voltage from 90V to 264V. Constant voltage mode for LED lighting consistency. High efficiency up to 84% minimizes energy loss. IP30 rated plastic case with fire prevention standards. Comprehensive protection features increase reliability.
Suitable for LED lighting and moving sign applications. Class 2 power unit with Class II insulation. Explore the full range of MEAN WELL LED drivers on EnvMart for your lighting and display needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 36W.
This model provides a steady output voltage of 24V DC with a current of 1.5A.
It is equipped with short circuit, overload, and overvoltage protections for enhanced reliability.
The operating temperature range is from -30℃ to +70℃.
It uses free air convection for cooling without requiring a fan.
It features a screw mount type for secure installation.
The driver has an IP30 rating, suitable for indoor applications.
It complies with BIS, CE, EAC, LPS, and UL safety standards.
It is equipped with wire terminal connections for easy setup.
This model is recommended for indoor use and is not designed for high waterproof or dustproof capabilities.
